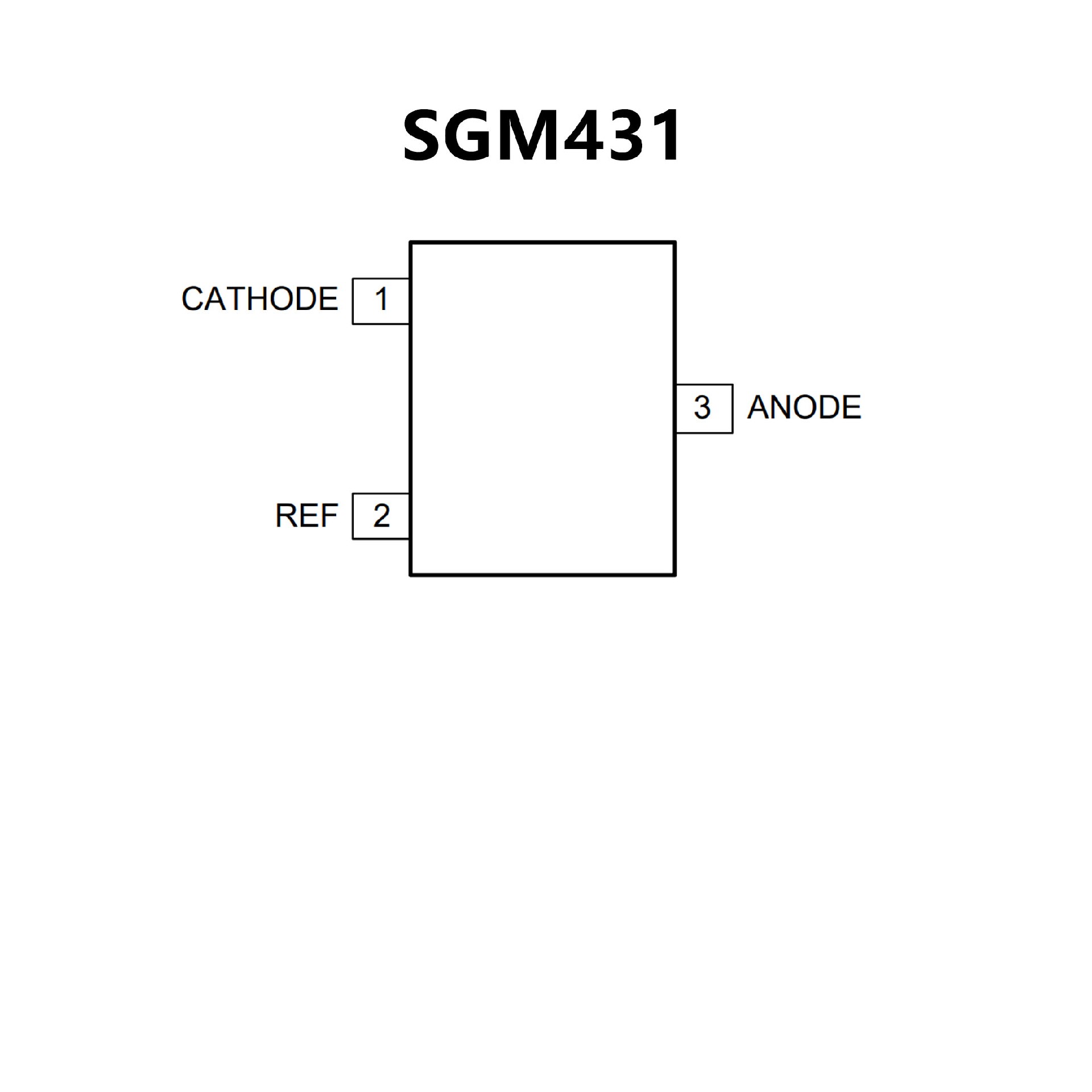

SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:-40℃ to +125℃
• The SGM431 is available in Green SOIC-8, SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages

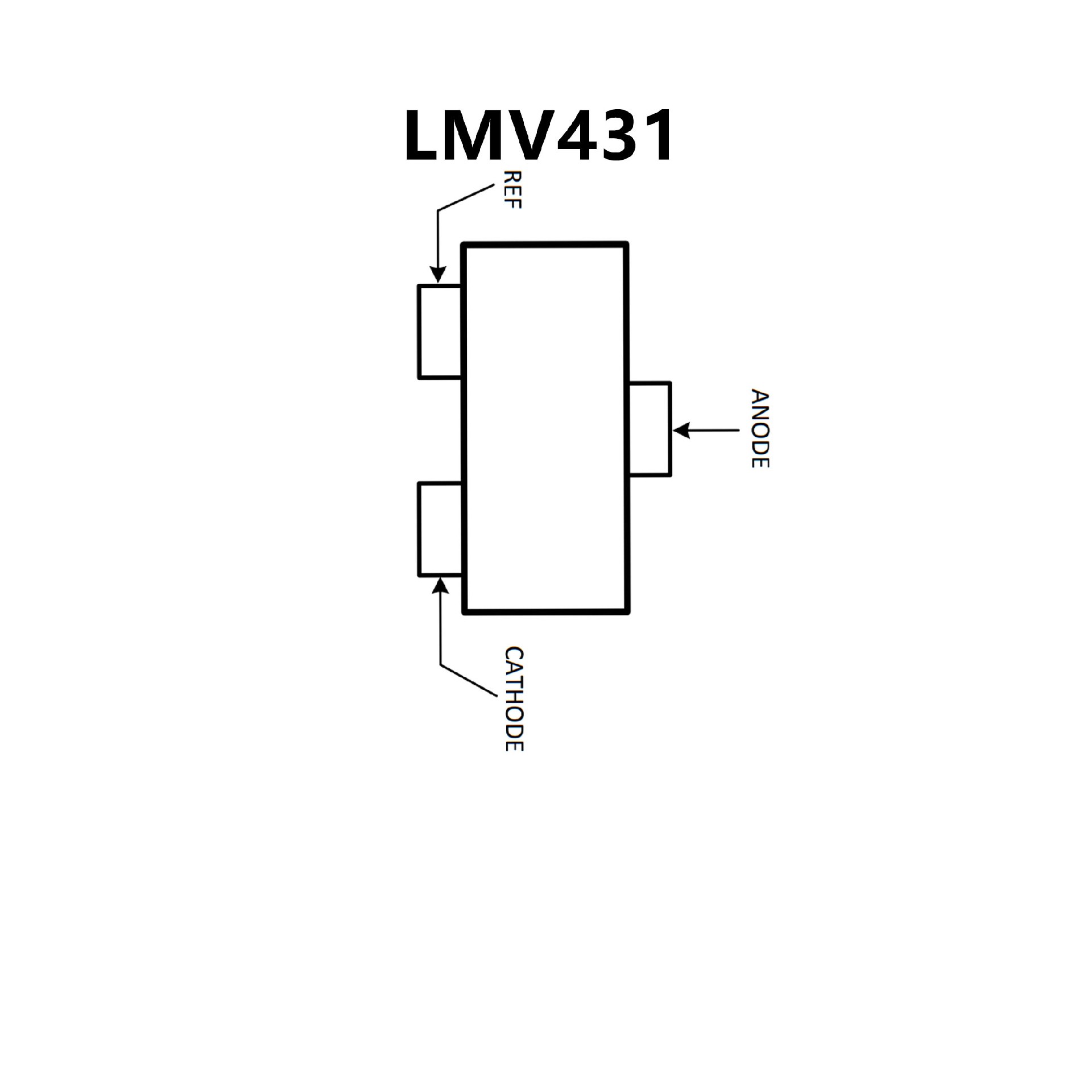

• Low-Voltage Operation/Wide Adjust Range
(1.24 V/30 V)
• 0.5% Initial Tolerance (LMV431B)
• Temperature Compensated for Industrial
Temperature Range (39 PPM/°C for the LMV431AI)
• Low Operation Current (55 µA)
• Low Output Impedance (0.25 Ω)
• Fast Turn-On Response
• Low Cost
