SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature
Range: -40℃ to +125℃

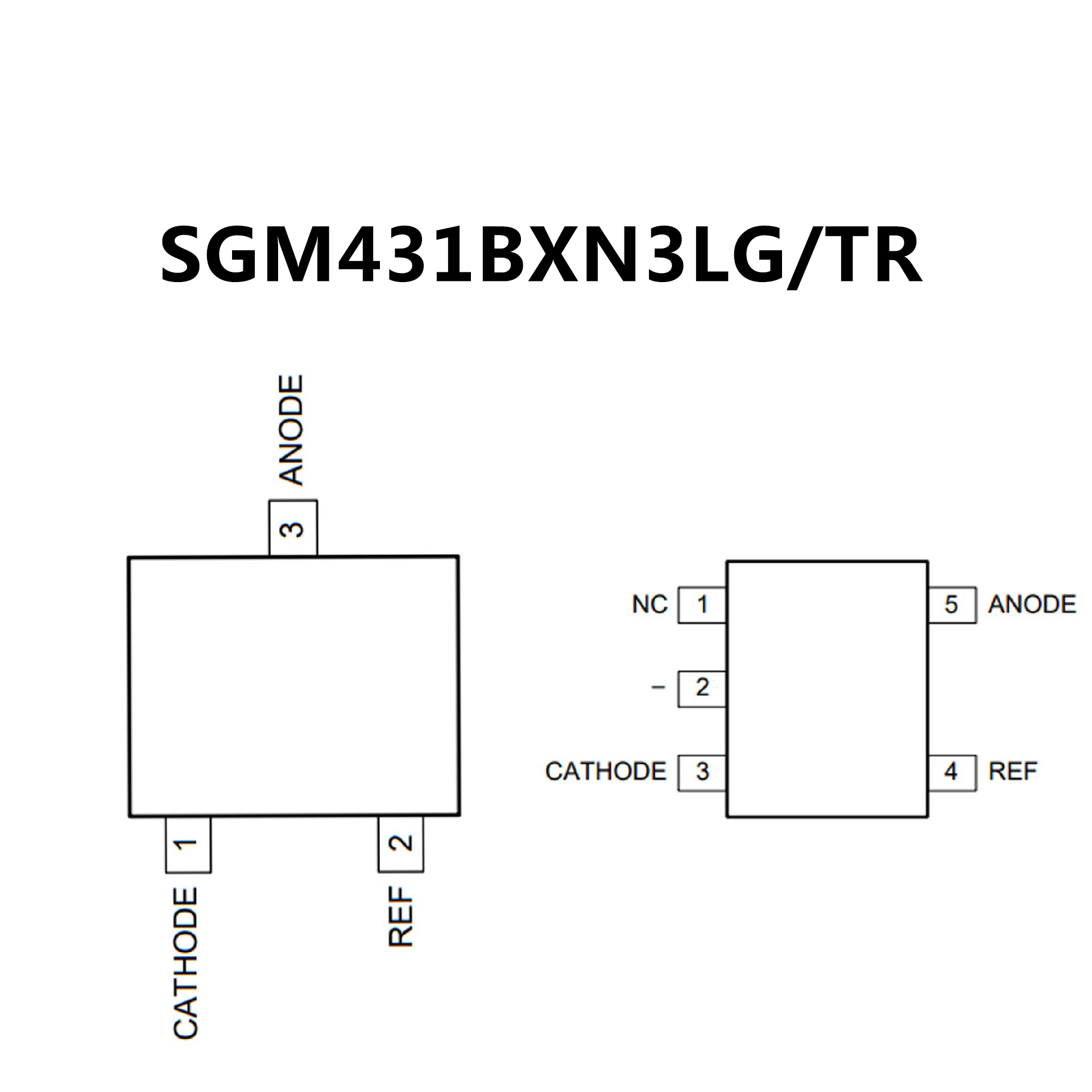

• The SGM431 is available in Green SOIC-8,
SOT-23, SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green
SOIC-8, SOT-23, SOT-89-3 and SOT-23-5 Packages
• Wide Programmable Precise Output
Voltage from 1.24V to 18V
• High Stability under Capacitive Loa
• Low Temperature Deviation: 3mV Typical
• Low Equivalent Full-range Temperature
Coefficient: 20PPM/°C
Typical
• Low Dynamic Output Resistance: 0.05Ω Typical
• High Sink Current Capacity from 0.1mA to 100mA
• Low Output Noise
• Wide Operating Range of -40 to +125°C

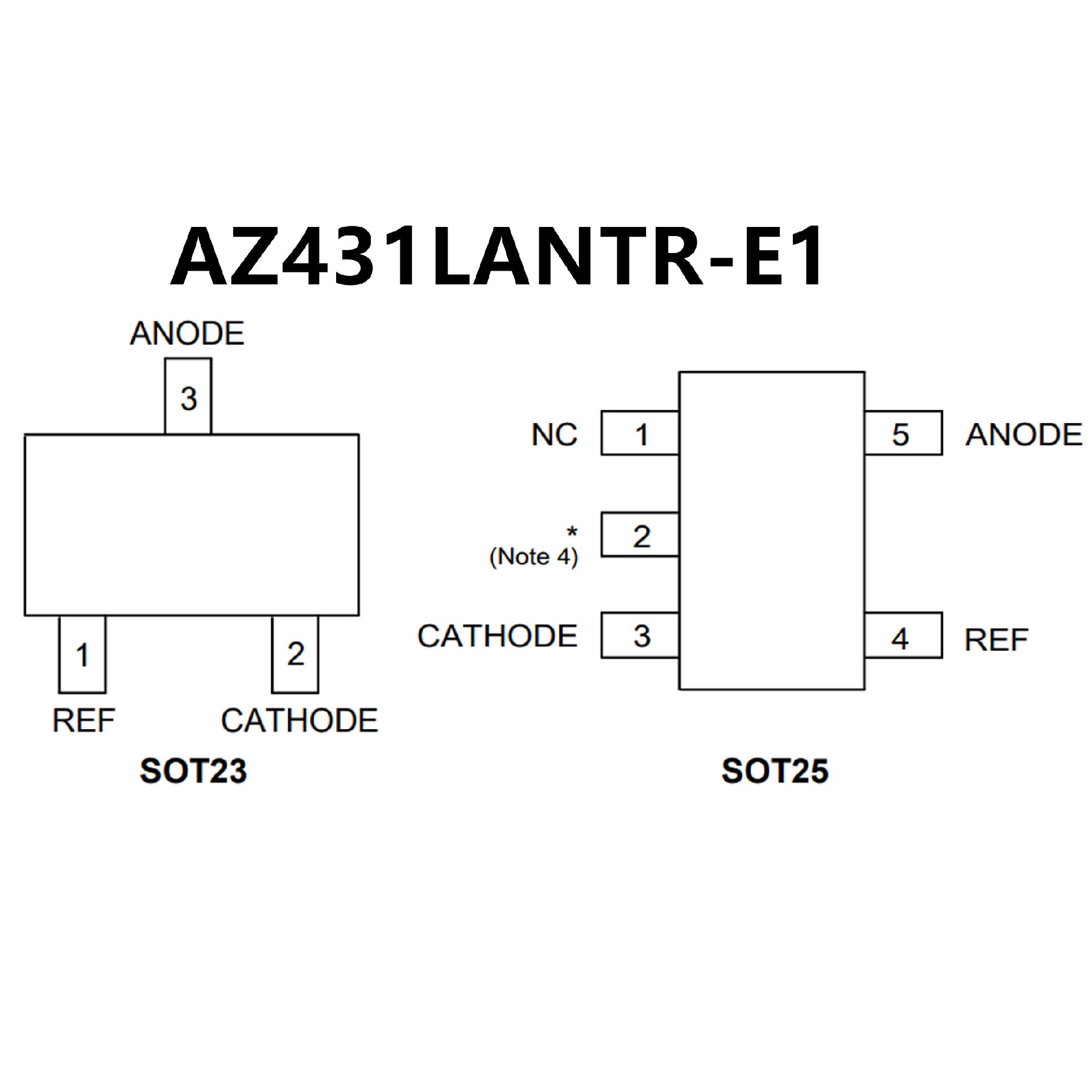

• Lead-Free Packages: TO92, SOT23, SOT25, SOT89
• Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
• Lead-Free Packages, Available in “Green” Molding
Compound:
TO92, SOT23, SOT25, SOT89
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
