SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature
Range:
-40℃ to +125℃

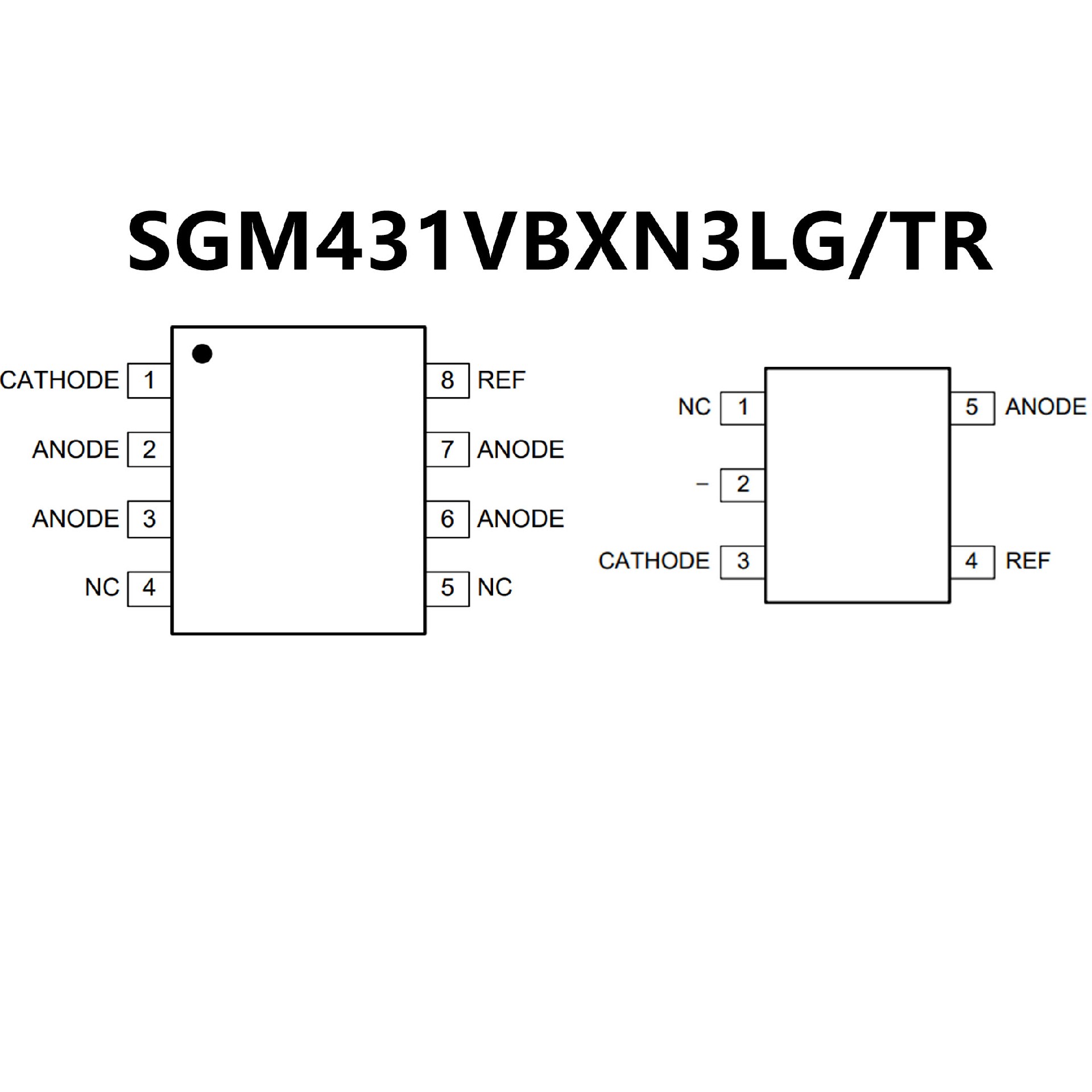

• The SGM431 is available in Green SOIC-8,
SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green
SOIC-8, SOT-23,
SOT-89-3 and SOT-23-5 Packages

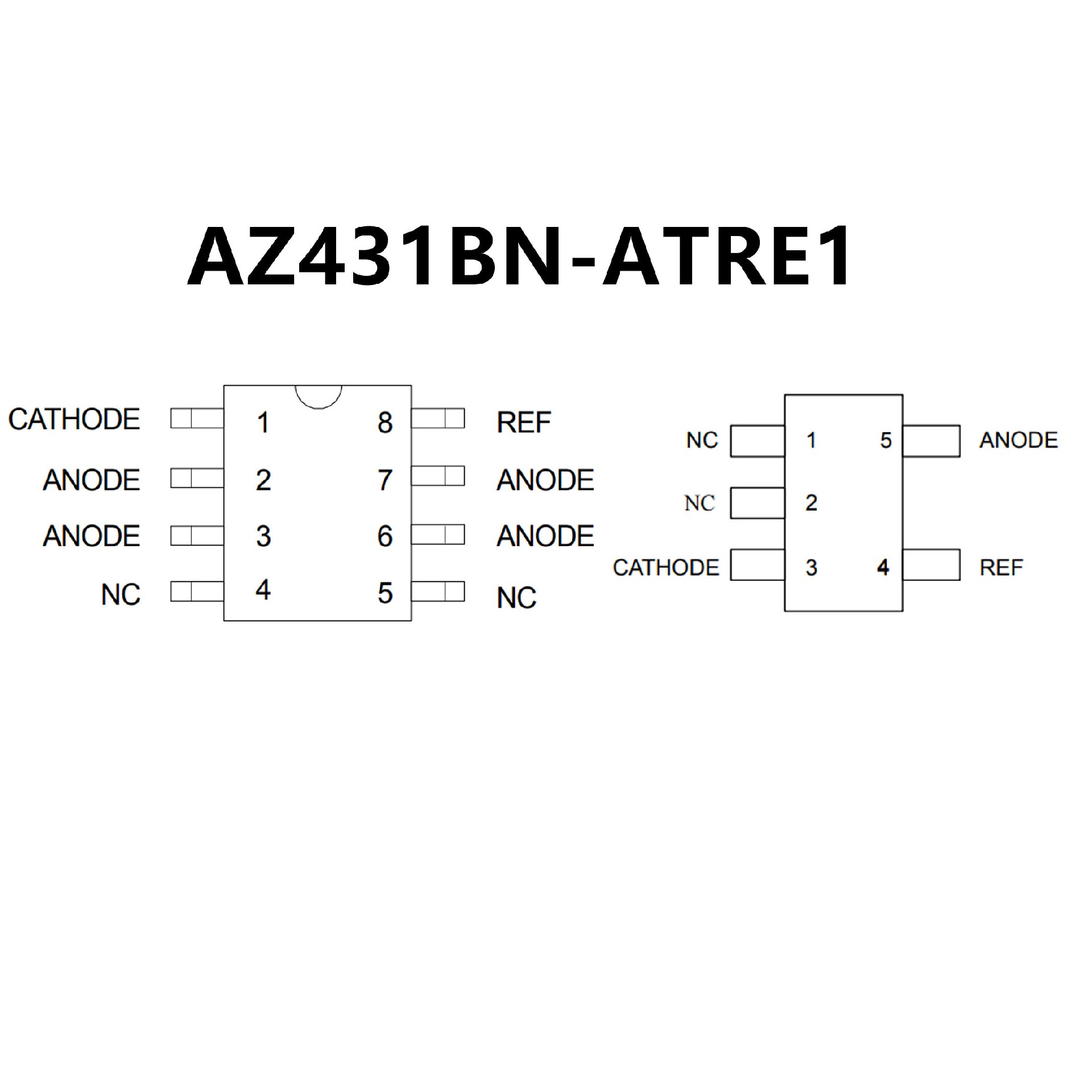

• Programmable Precise Output Voltage from 2.5V to
36V
• Very Accurate Reference Voltage: 0.15% Typical
• High Stability under Capacitive Load
• Low Temperature Deviation: 4.5mV Typical
• Low Equivalent Full-range Temperature
Coefficient
with 20PPM/oC Typical
• Low Dynamic Output Resistance: 0.2Ω Typical
• Sink Current Capacity from 1mA to 100 mA
• Low Output Noise
• Wide Operating Range of -40 to 125℃
