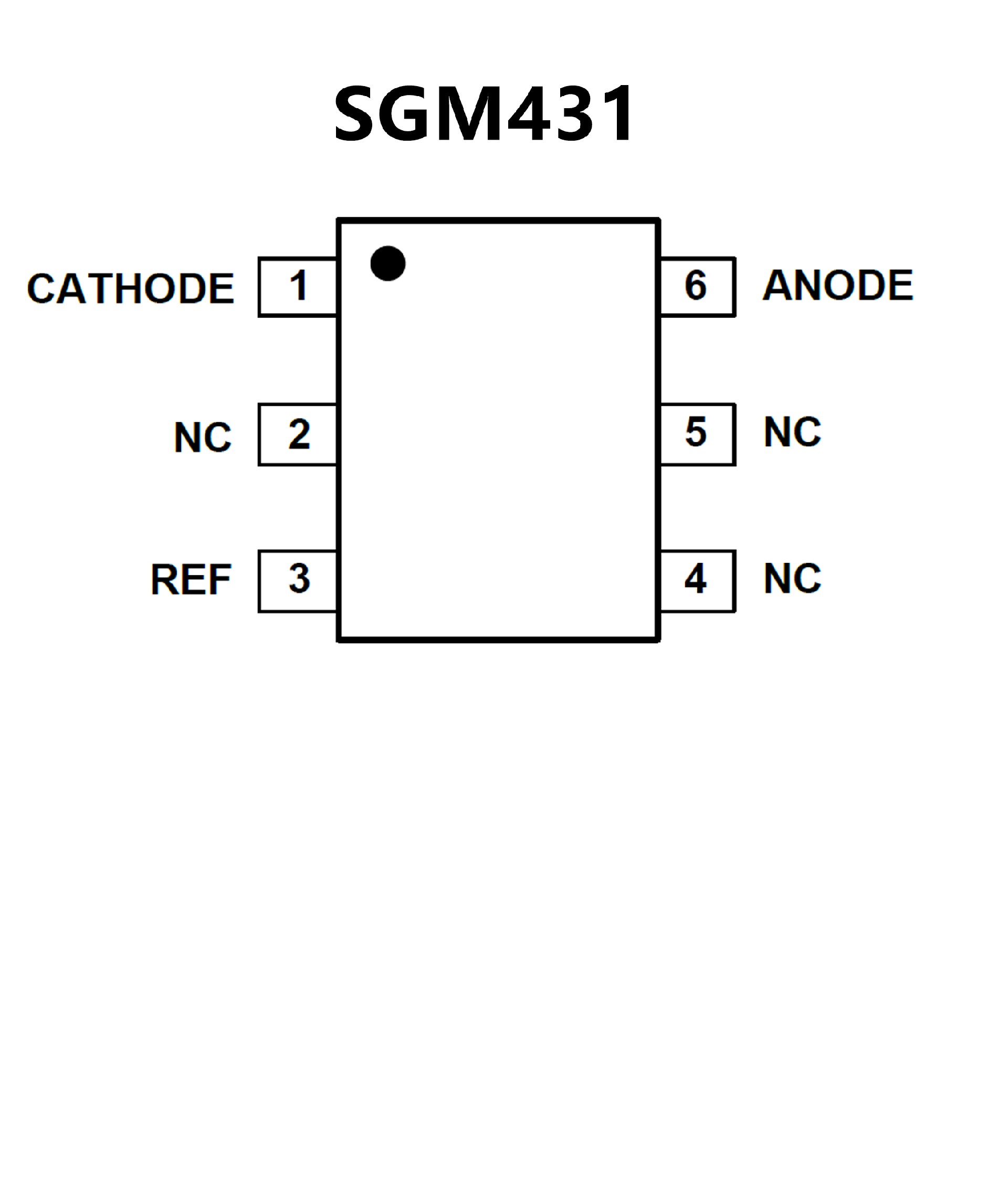

SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃
• The SGM431 is available in Green SOIC-8, SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green SOIC-8, SOT-23,
SOT-89-3 and SOT-23-5 Packages

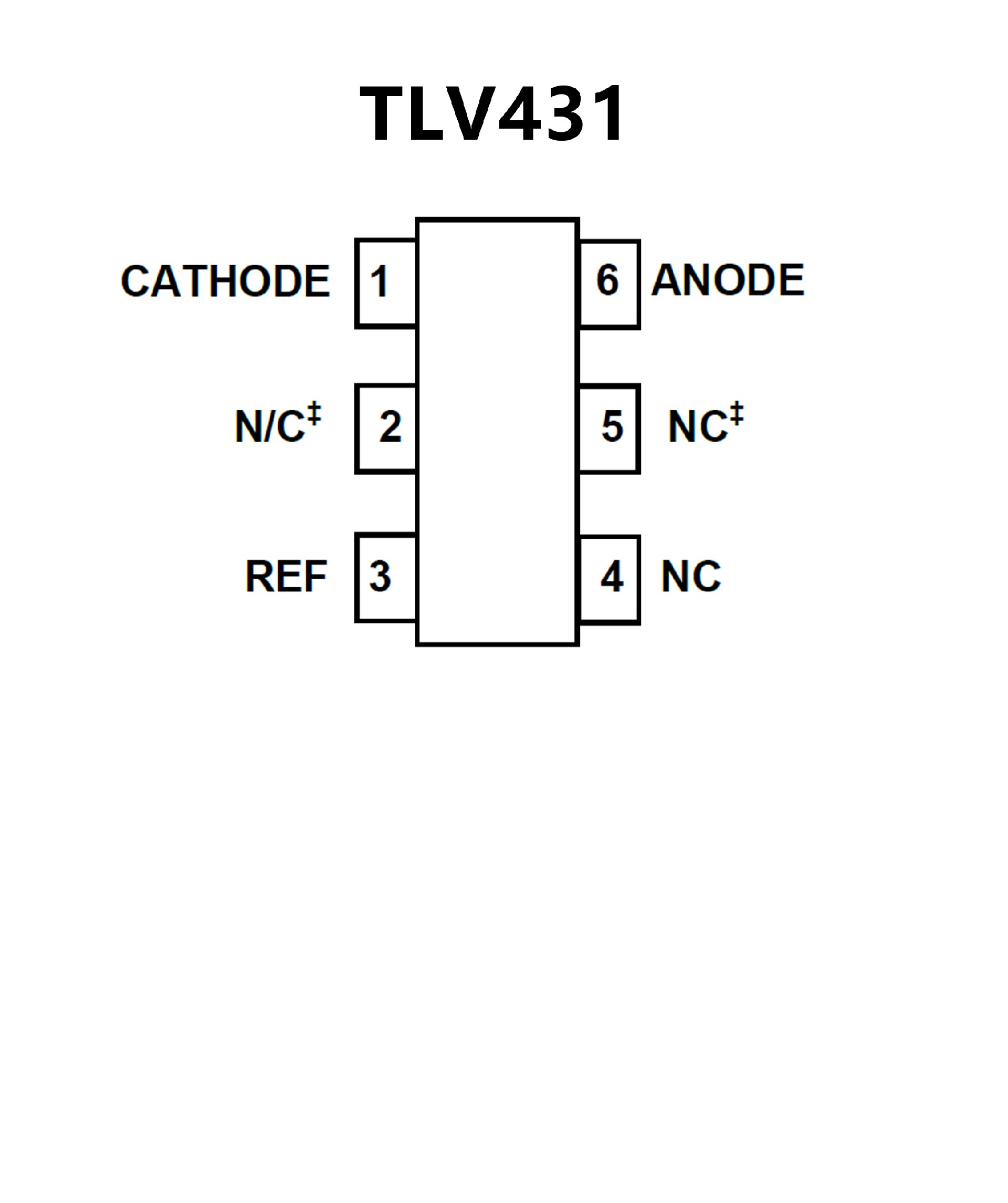

• Low-Voltage Operation VREF = 1.24V
• Temperature Range -40 to +125°C
• Reference Voltage Tolerance at +25°C
0.2%TLV431T
0.5%TLV431B
1%TLV431A
• Typical Temperature Drift
4mV (0°C to +70°C)
6mV (-40°C to +85°C)
11mV (-40°C to +125°C)
• 80μA Minimum Cathode Current
• 0.25Ω Typical Output Impedance
• Adjustable Output Voltage VREF to 18V
• Lead-Free Finish; RoHS
Compliant (Notes 1 & 2)
• Halogen and Antimony
Free. “Green” Device (Note 3)
• An Automotive-Compliant
Part is Available Under SeparateDatasheet
