SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:-40℃ to +125℃

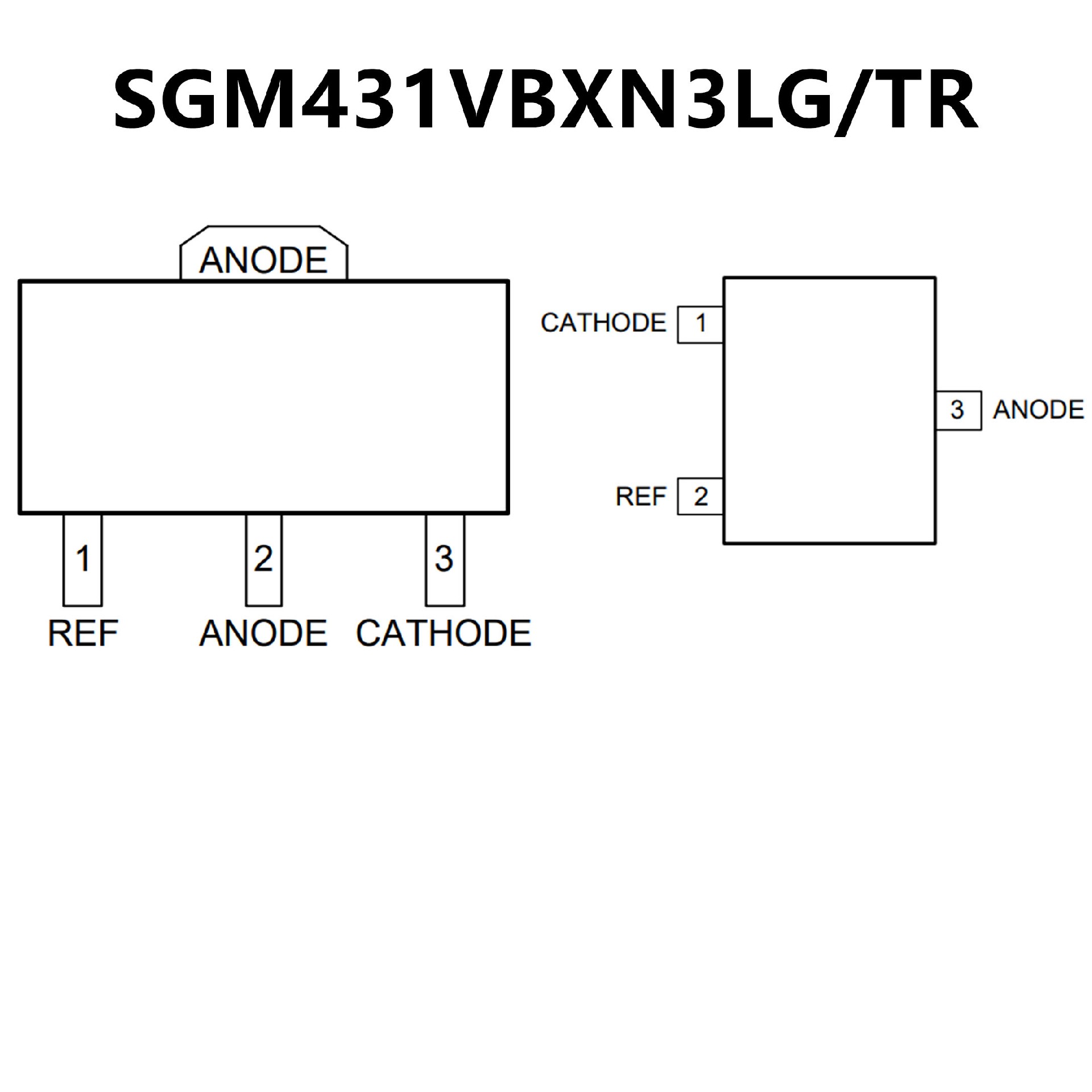

• The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages
• The output voltage can be adjusted to 36V
• Low dynamic output impedance,
its typical value is 0.2Ω
• Trapping current capability is 1 to 100mA
• Low output noise voltage
• Fast on -state response
• The effective temperature compensation
in the working range of full temperature
• The typical value of the equivalent temperature
factor in the whole temperature scope is 50 ppm/°C
