SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃

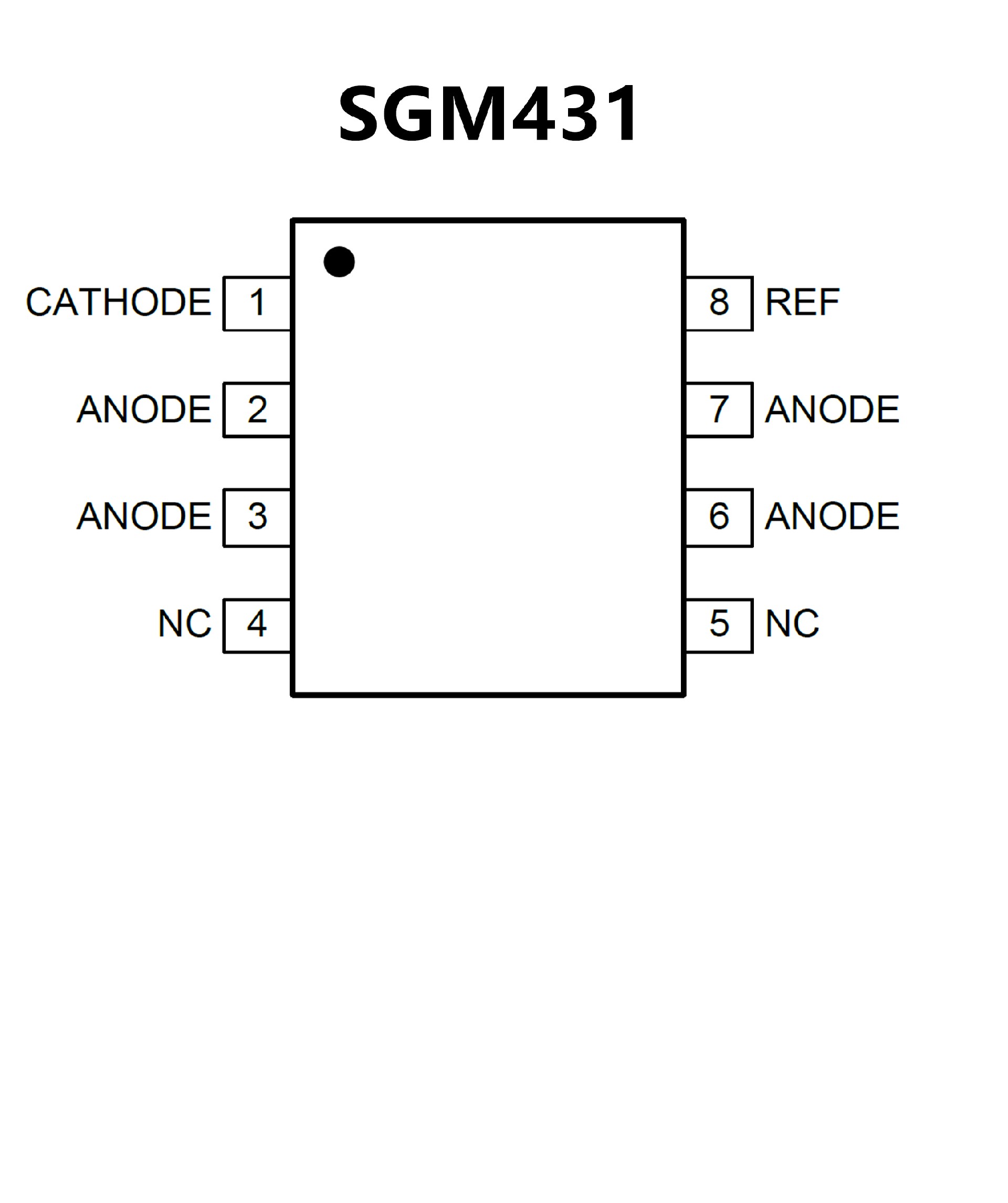

• The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages

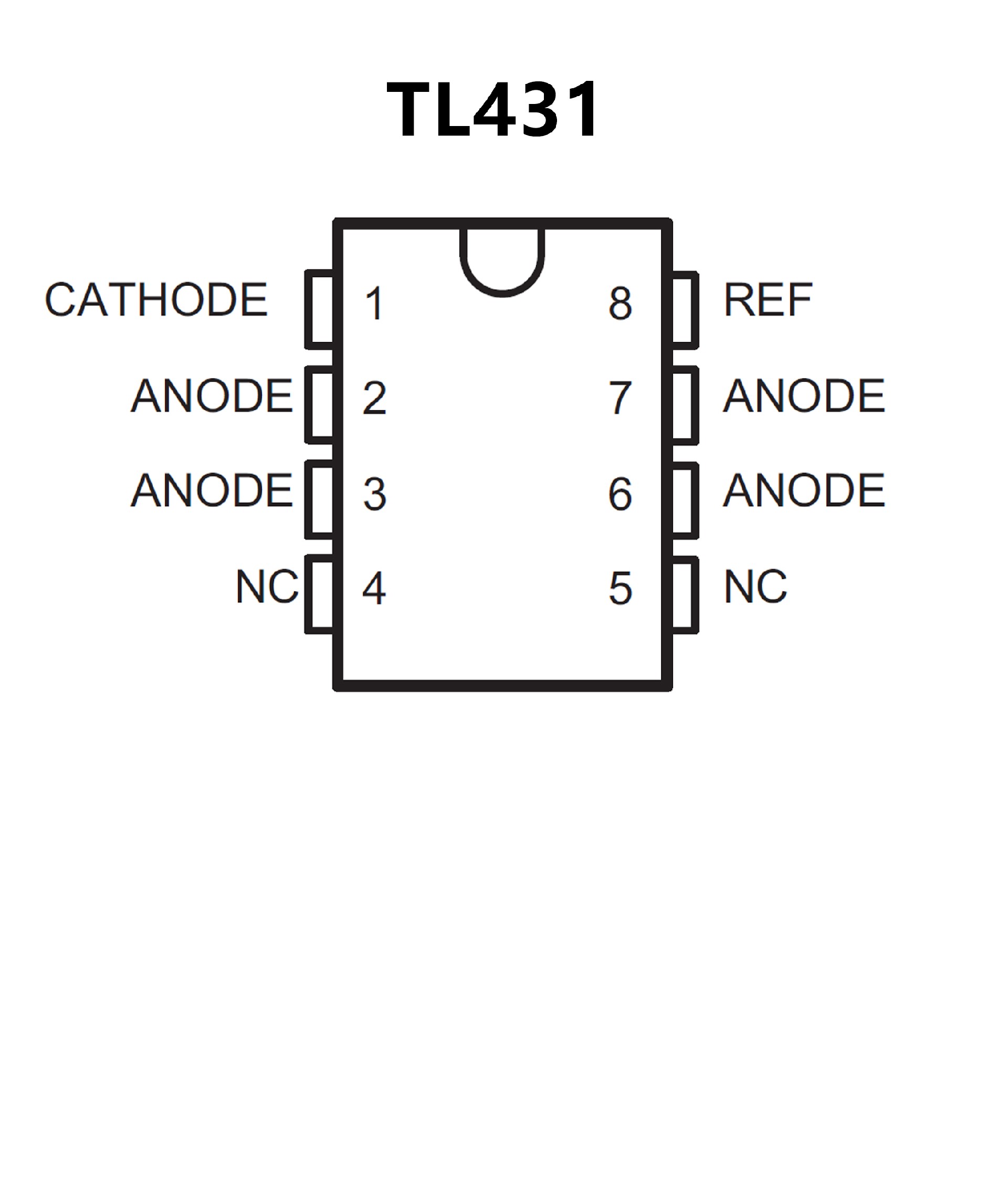

• Reference voltage tolerance at 25°C
0.5% (B grade)
1% (A grade)
2% (Standard grade)
• Adjustable output voltage: Vref to 36 V
• Operation from −40°C to 125°C
• Typical temperature drift (TL43xB)
6 mV (C temp)
14 mV (I temp, Q temp)
• Low Output Noise
• 0.2-Ω Typical output impedance
• Sink-current capability: 1 mA to 100 mA
