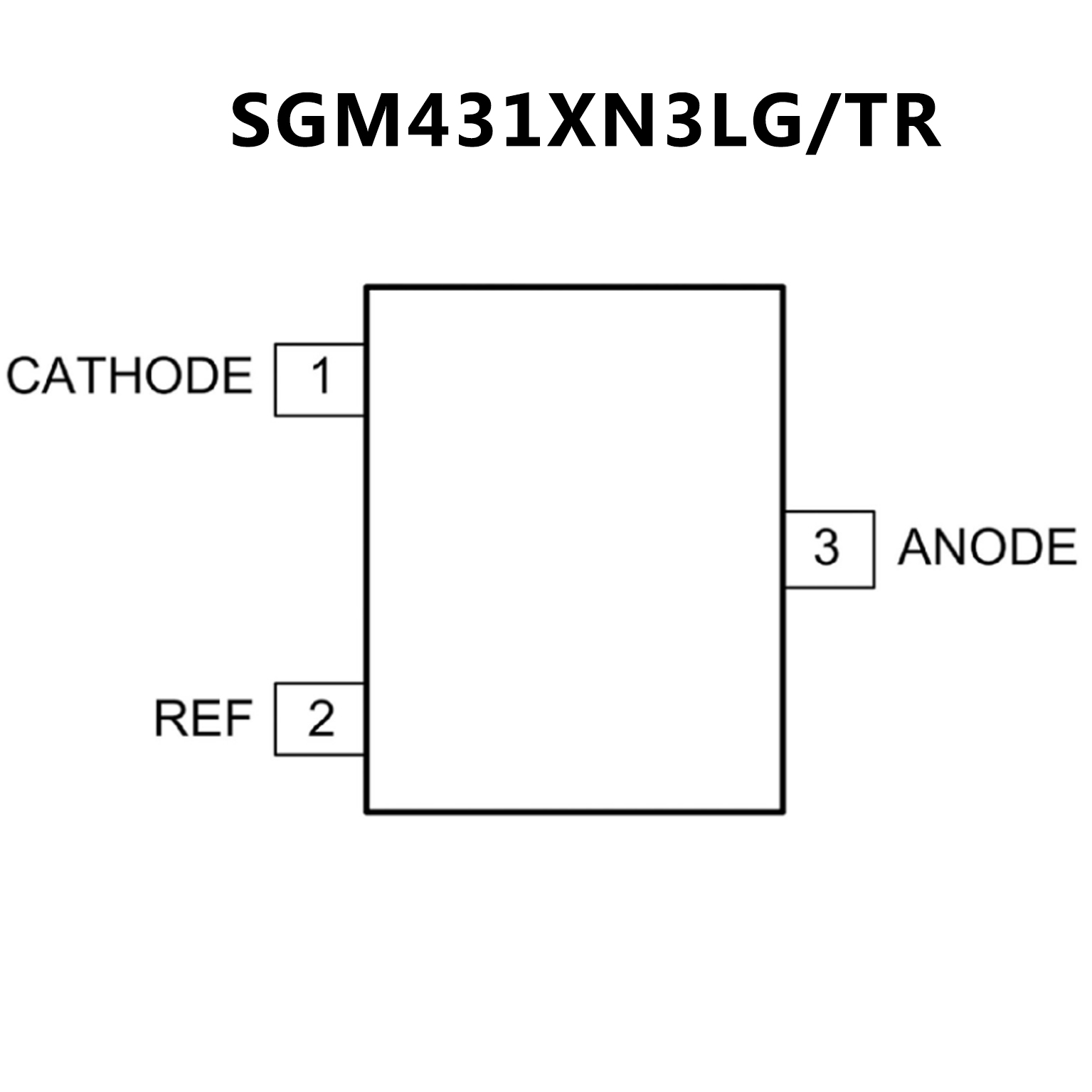

SGM431XN3LG.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range: -40℃ to +125℃
• The SGM431 is available in Green
SOIC-8, SOT-23, SOT-89-3, SOT-23-5 and
SC70-6 Packages
• The SGM431B is available in Green SOIC-8,
SOT-23, SOT-89-3 and SOT-23-5 Packages
• Programmable Precise Output Voltage from 2.5V to 36V
• High Stability under Capacitive Load
• Low Temperature Deviation: 4.5mV Typical
• Low Equivalent Full-range Temperature
Coefficient with 20PPM/oC Typical
• Low Dynamic Output Resistance: 0.15Ω Typical
• Sink Current Capacity from 1mA to 100mA
• Low Output Noise
• Wide Operating Range of -40 to +125oC
• Lead-Free Packages: SOT-23
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
• Lead-Free Packages, Available in “Green”
Molding Compound: SOT-23
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
