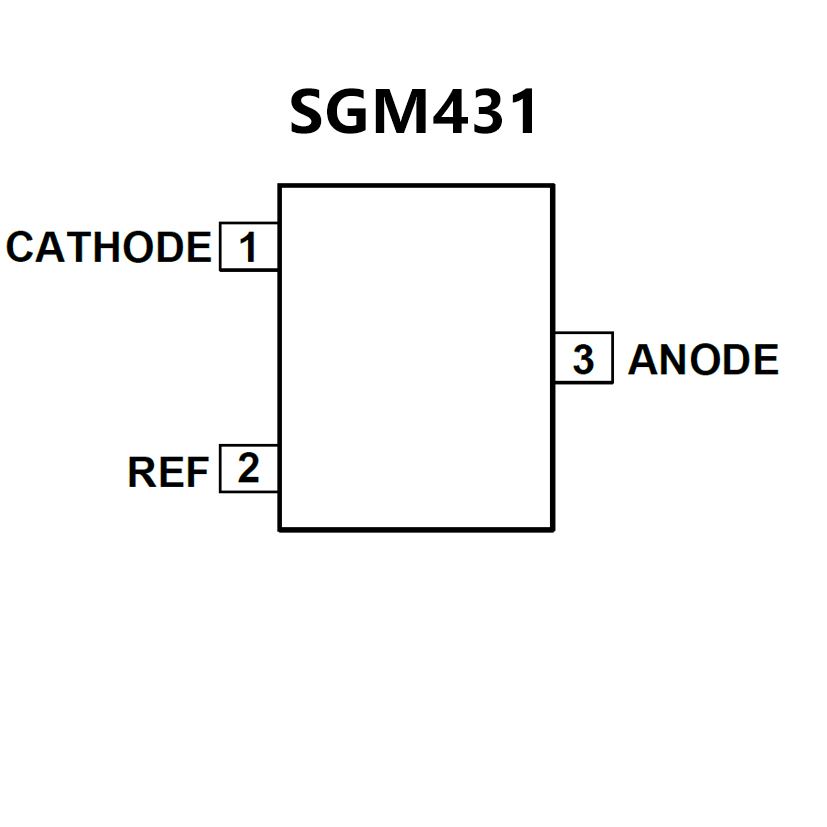

SGM431.pdf• Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃
• The SGM431 is available in Green SOIC-8,
SOT-23,SOT-89-3, SOT-23-5 and SC70-6 Packages
• The SGM431B is available in Green SOIC-8,
SOT-23,SOT-89-3 and SOT-23-5 Packages

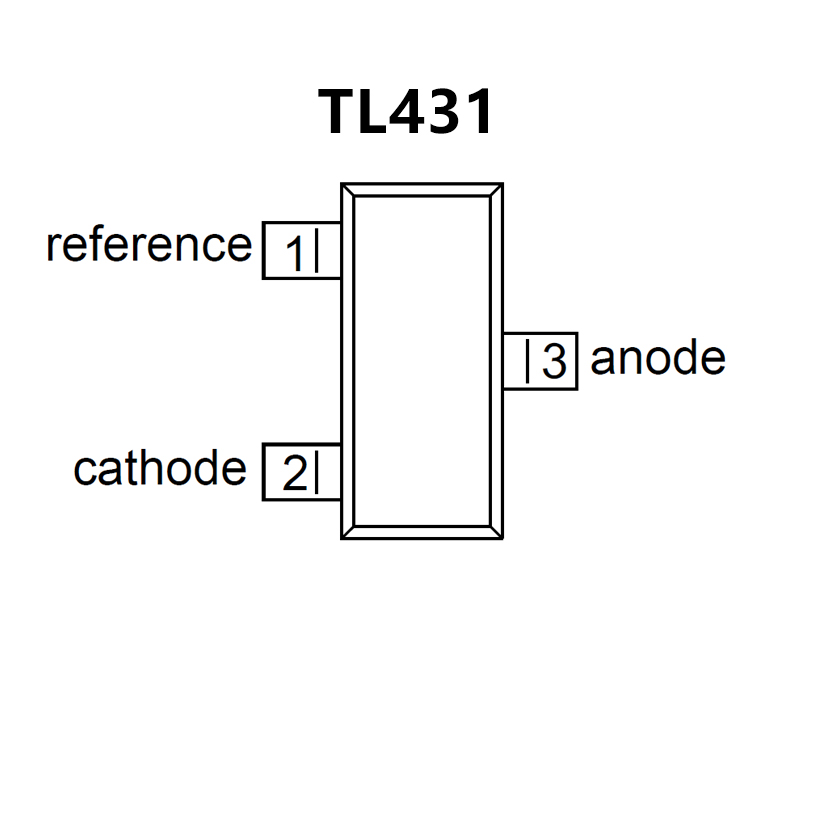

• Programmable output voltage up to 36 V
• Three different reference voltage tolerances:
• Standard grade: 2 %
• A-Grade: 1 %
• B-Grade: 0.5 %
• Typical temperature drift: 9 mV (in a
range of 0 °C up to 70 °C)
• Low output noise
• Typical output impedance: 0.2 Ω
• Sink current capability: 1 mA to 100 mA
• AEC-Q100 qualified (grade 1)
