Precision Programmable Reference,SGM432 Replace KIA431BM.
SGM432
SGM432.pdf
SGM432.pdfFEATURES
• Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃
• Available in Green SOT-89-3, SOT-23 and SOT-23-5
Packages

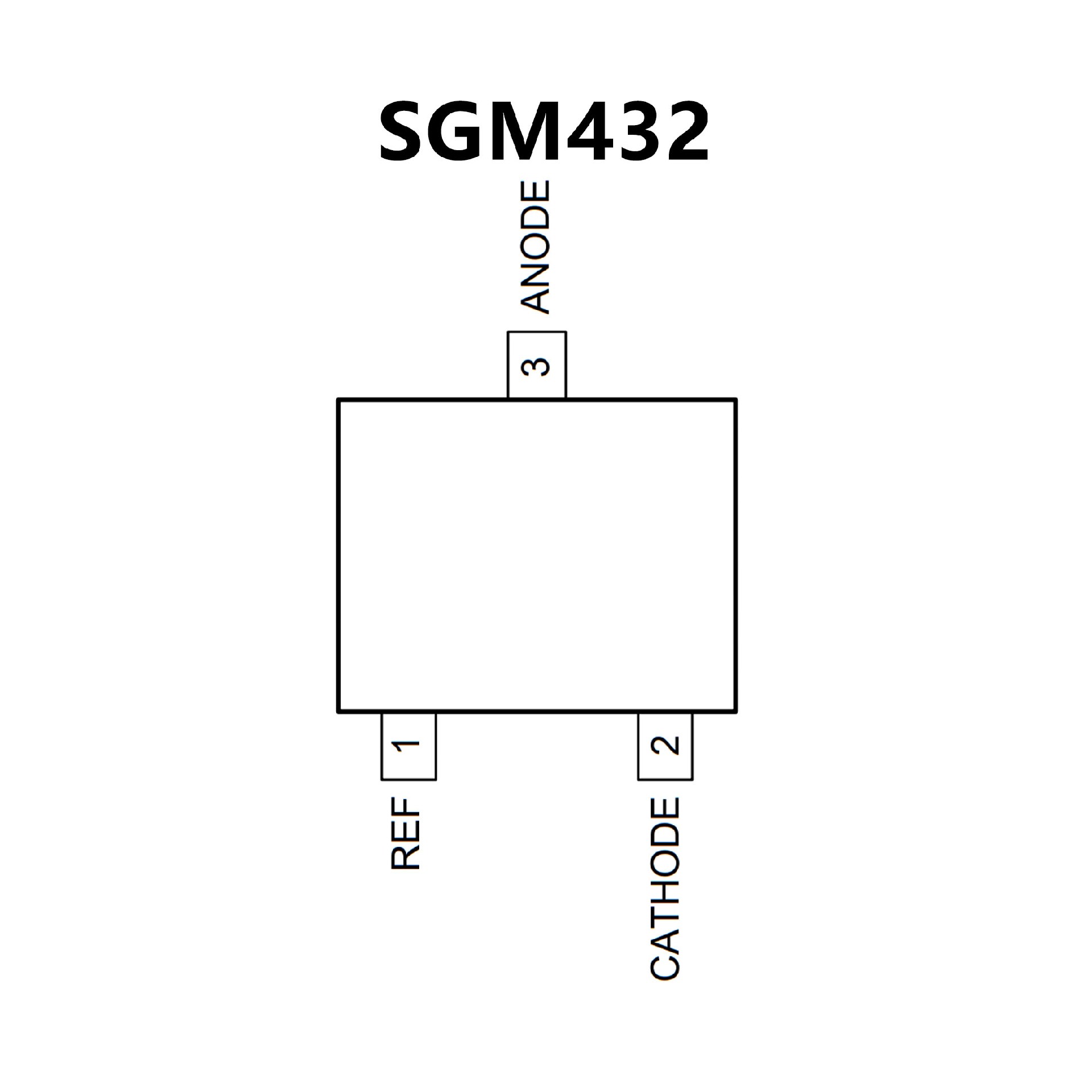

PIN CONFIGUTION
优势替代
FEATURES
• Low Dynamic Output Impedance : 0.22Ω(Typ.).
• Sink Current Capability of 1.0 to 100mA.
• Equivalent Full-Range Temperature
Coefficient of 50ppm/℃ (Typ.).
• Temperature Compensated for Operation
Over Full Rated Operating Temperature Range.
• Low Output Noise Voltage.
• Suffix U : Qualified to AEC-Q100. (Grade 1)

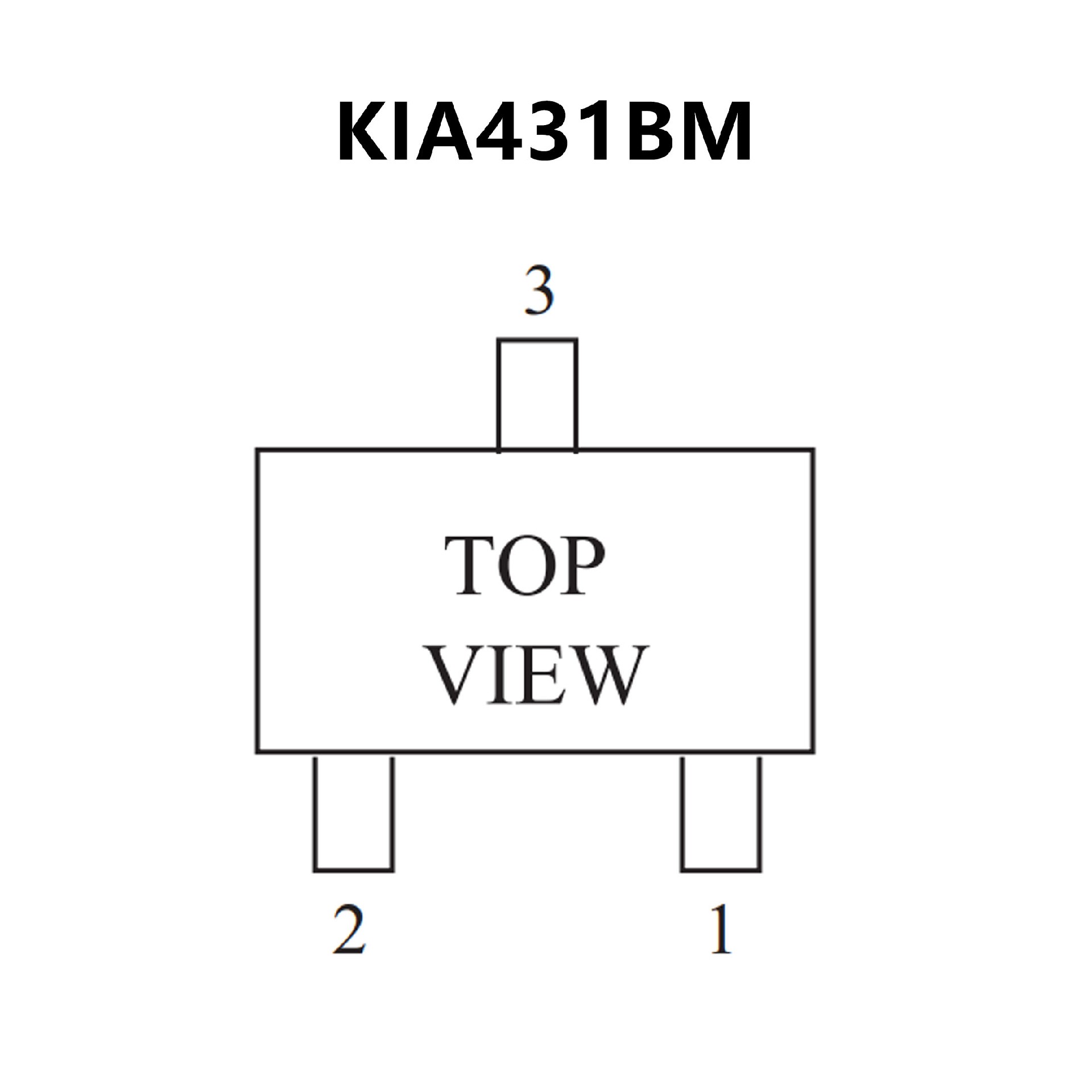

PIN CONFIGUTION
