SGM432BQ.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Adjustable Output Voltage: VREF to 36V
• Sink-Current Capability: 1mA to 100mA
• ▲Reference Voltage Tolerance at +25℃: 0.5%
• Temperature Drift: 5mV (TYP)
• Output Impedance: 0.1Ω (TYP)
• ▲High Stability under Capacitive Load
• Low Output Noise
• Operating Junction Temperature Range:
-40℃ to +125℃

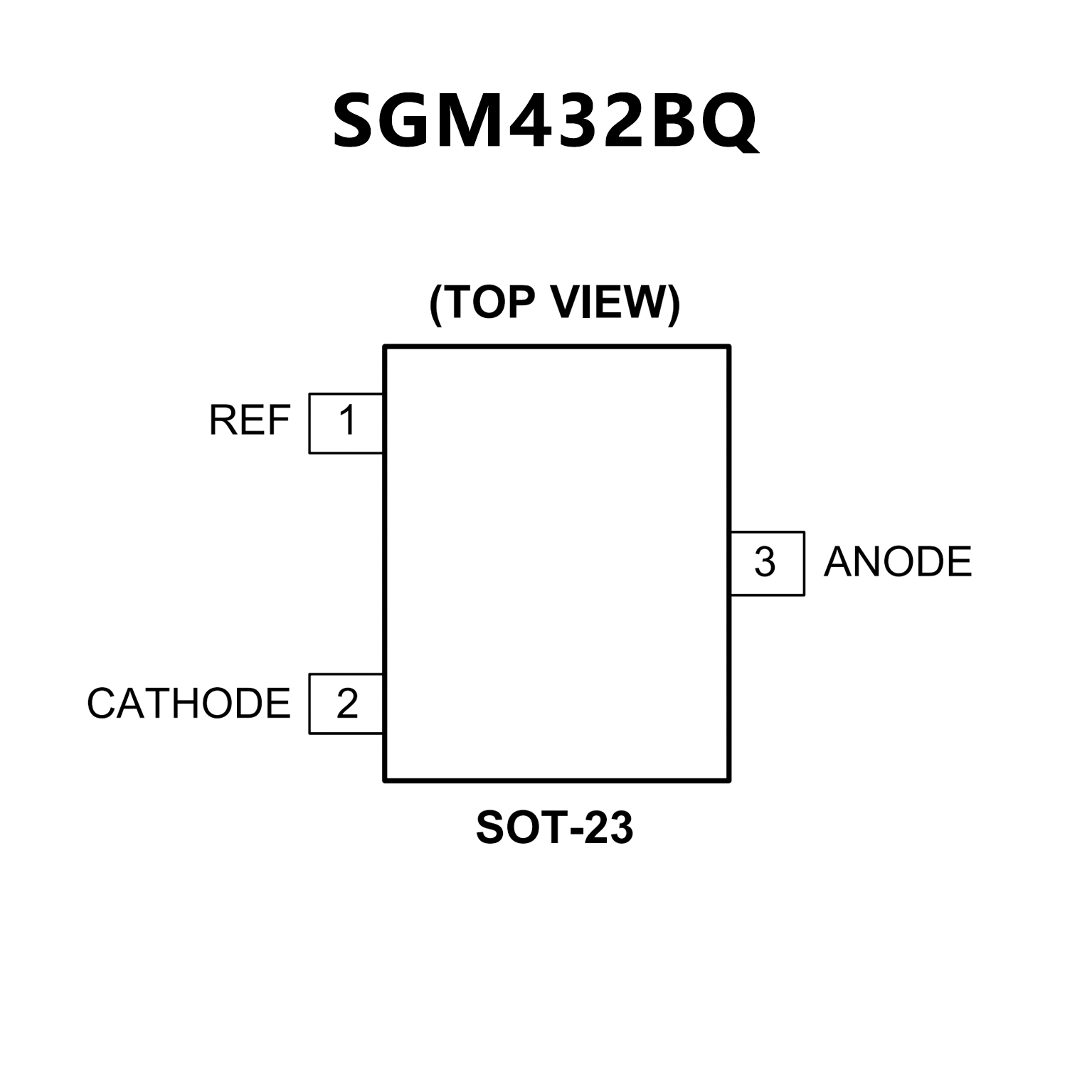

• Available in a Green SOT-23 Package
• Qualified for automotive applications
• AEC-Q100 test guidance with the following:
Device temperature grade 1: –40°C to 125°C
ambient operating temperature range
• Reference voltage tolerance at 25°C:
1% (A Grade)
0.5% (B Grade)
• Typical temperature drift:
14 mV (Q Temp)
• Low output noise
• 0.2-Ω Typical output impedance
• Sink-current capability: 1 mA to 100 mA
• Adjustable output voltage: VREF to 36 V
