Precision Programmable Reference,SGM432BXK3G Replace uPC1093.
SGM432BXK3G
SGM432BXK3G.pdf
SGM432BXK3G.pdfFEATURES
• Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃
• Available in Green SOT-89-3,
SOT-23 and SOT-23-5 Packages

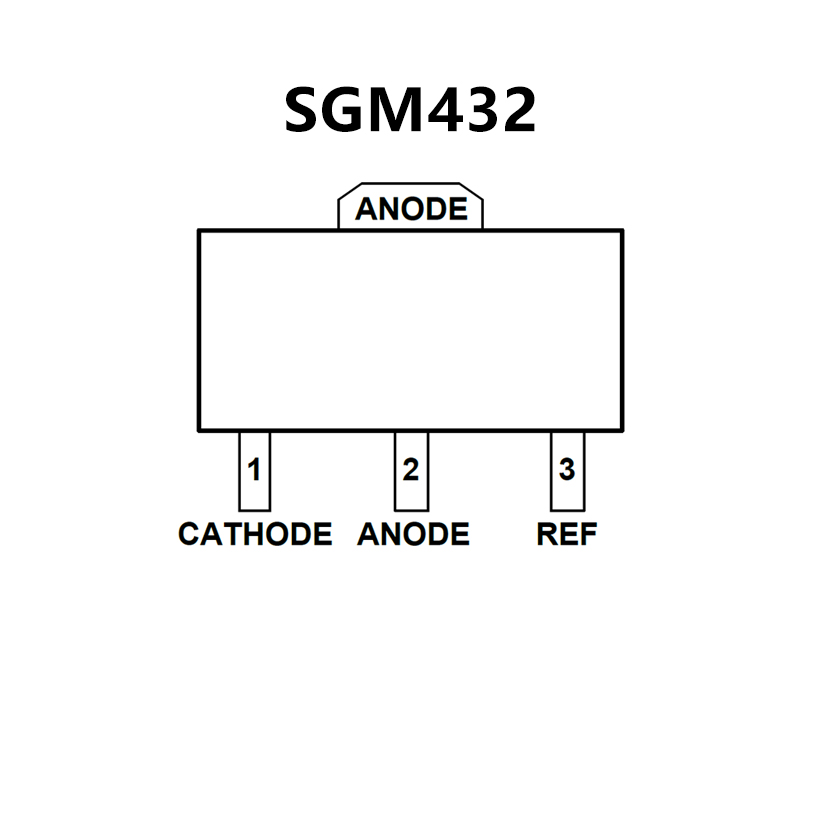

PIN CONFIGUTION
优势替代
FEATURES
• High Accuracy
VREF = 2.495 V ± 2 %
• Low Temperature Coefficient
DVREF/DT £ 100 ppm/°C
• Adjustable Output Voltage by two
External Resistors VREF £ VO £ 36 V
• Low Dynamic Impedance | ZKA | = 0.1 WTYP.

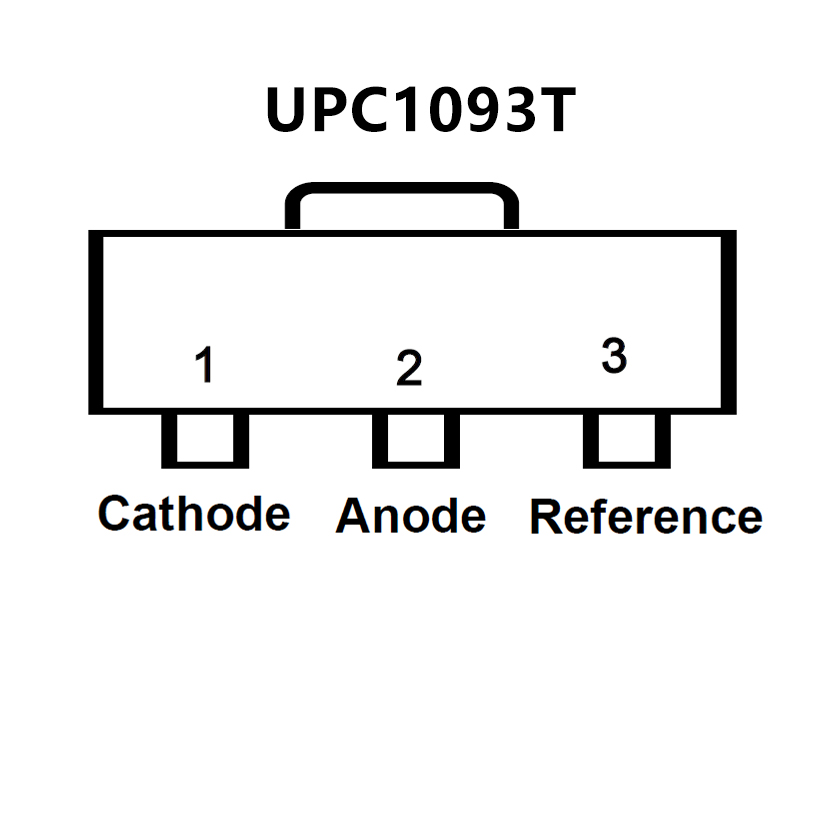

PIN CONFIGUTION
