Precision Programmable ReferenceSGM432BXN3LG Replace TLVH431BQDBZR.
SGM432BXN3LG
SGM432BXN3LG.pdf
SGM432BXN3LG.pdfFEATURES
• Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
• Adjustable Output Voltage: VREF to 36V
• High Stability under Capacitive Load
• Typical Temperature Drift: 5mV
• Low Output Noise
• Typical Output Impedance: 0.1Ω
• Sink-Current Capability: 1mA to 100mA
• Operating Junction Temperature Range:
-40℃ to +125℃
• Available in Green SOT-89-3, SOT-23 and SOT-23-5
Packages

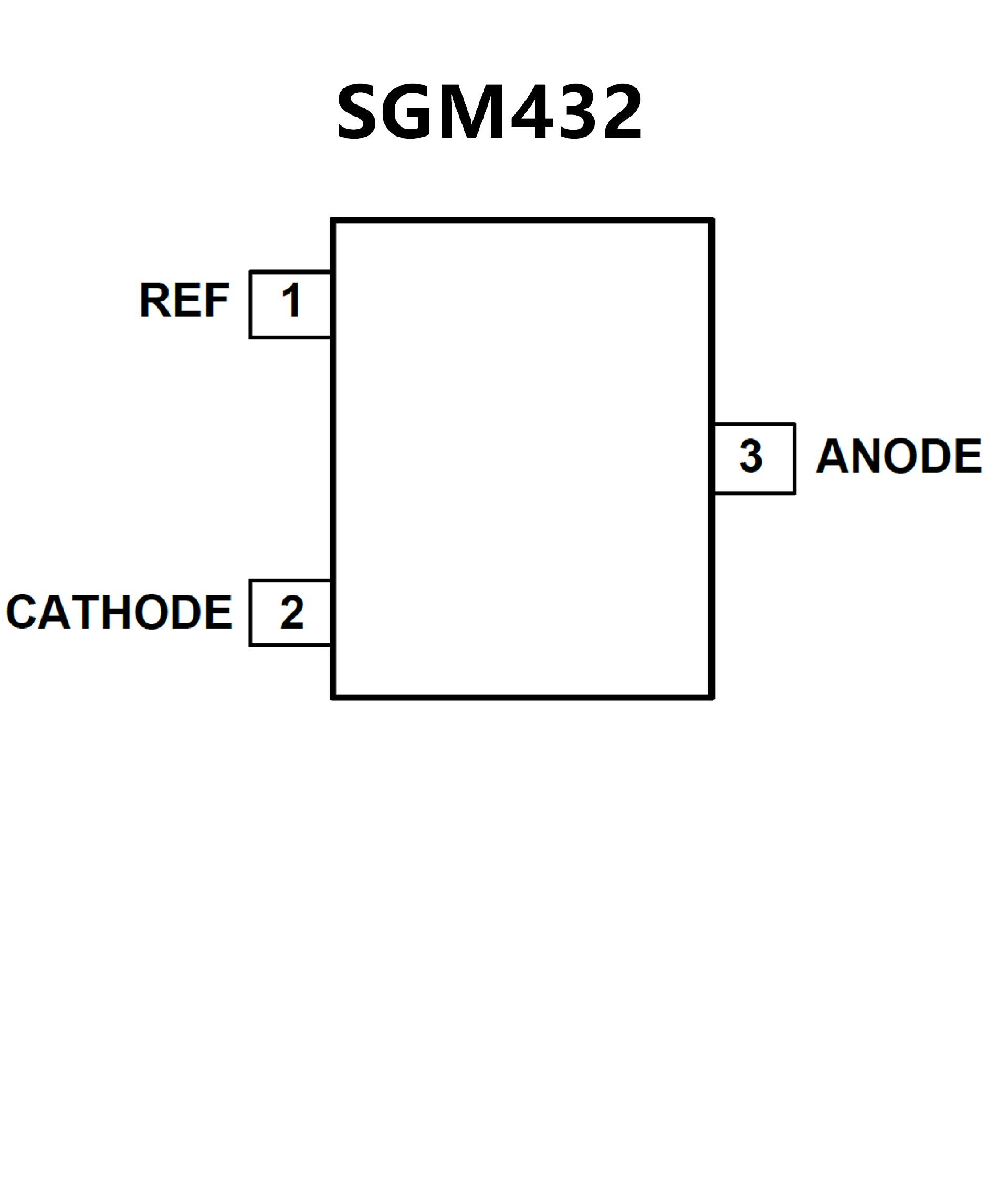

PIN CONFIGUTION
优势替代
FEATURES
• Programmable output voltage up to 18 V
• Three different reference voltage tolerances:
• Standard grade: 1.5 %
• A-Grade: 1 %
• D-Grade: 0.75 %
• Typical temperature drift: 4 mV (in a
range of -40 ℃ up to 125 ℃)
• Low output noise
• Typical output impedance: 0.1Ω
• Sink current capability: 0.08 mA to 70 mA
• AEC-Q100 qualified (grade 1)

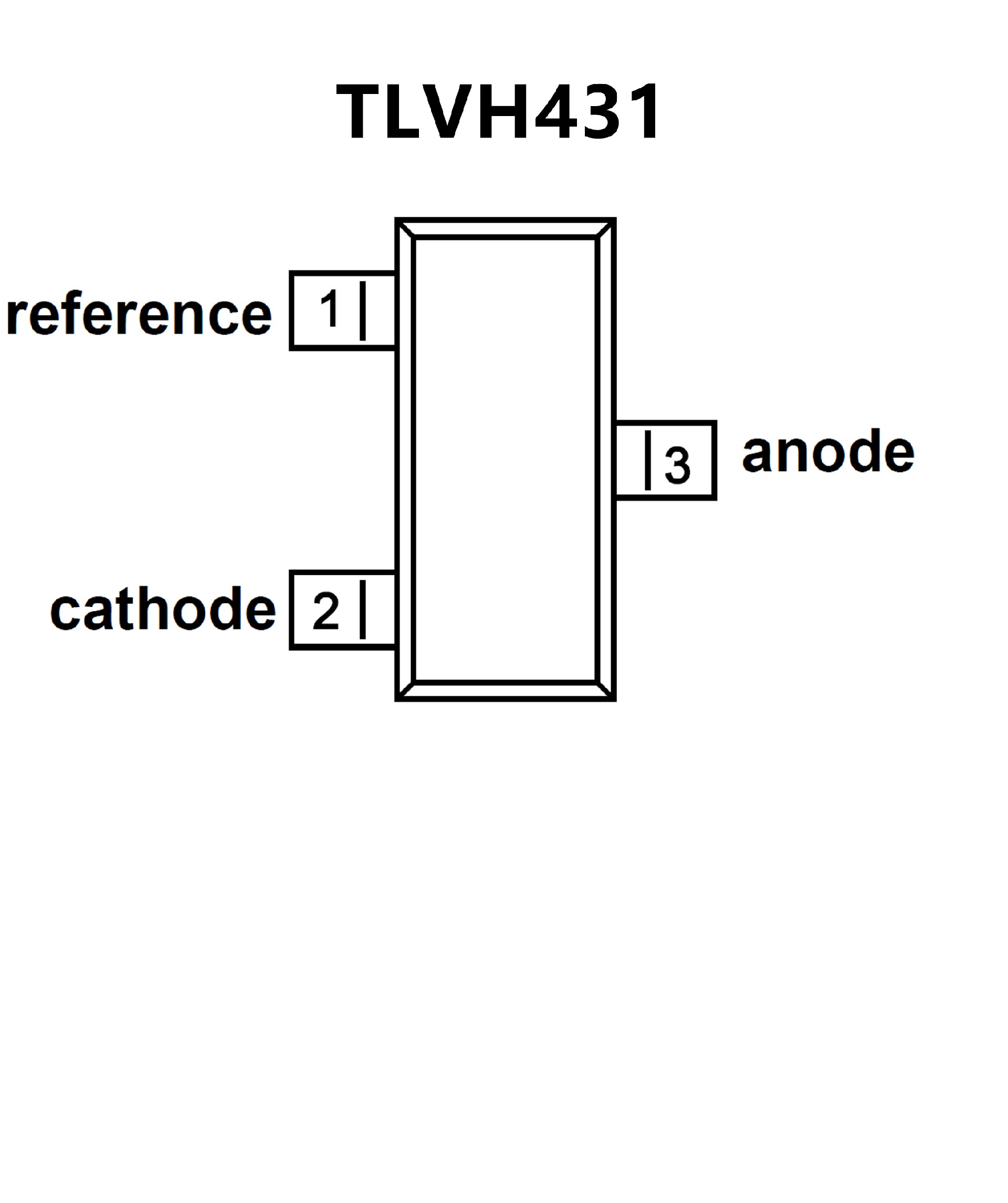

PIN CONFIGUTION
