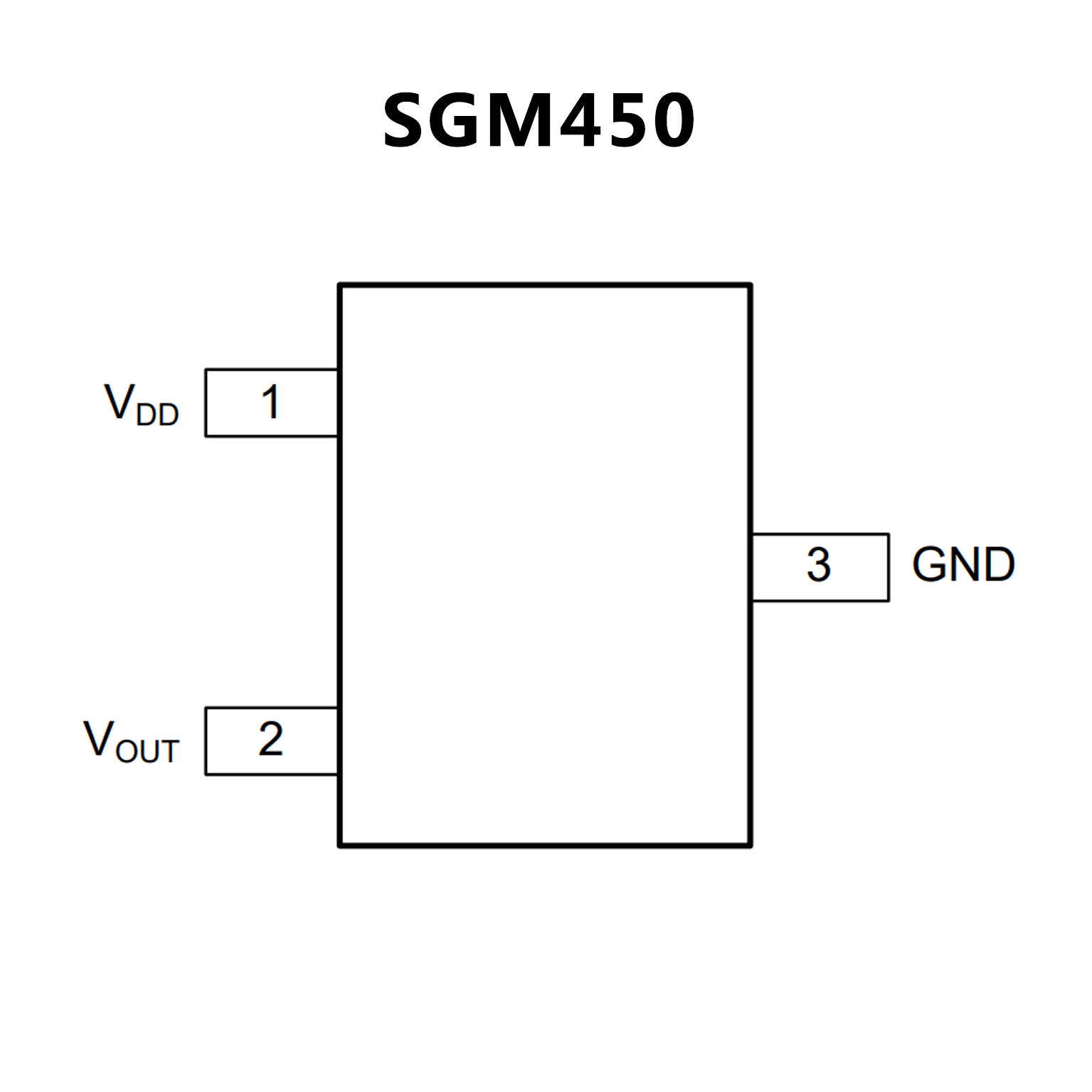

SGM450.pdf• Wide Temperature Measurement Range: -40℃ to +150℃
• Temperature Accuracy: ±2°C (MAX): -40℃ to +150℃
• Positive Slope Sensor Gain: 10mV/°C (TYP)
• Output Voltage Offset: 500mV at 0℃ (TYP)
• Wide Power Supply Range: 2.3V to 5.5V
• Short-Circuit Protected Output
• Low Quiescent Current: 7.5μA (TYP)
• Class-AB Structure Output
• Able to Drive Capacitive Load up to 1000pF
• Available in Green SC70-5 and SOT-23 Packages

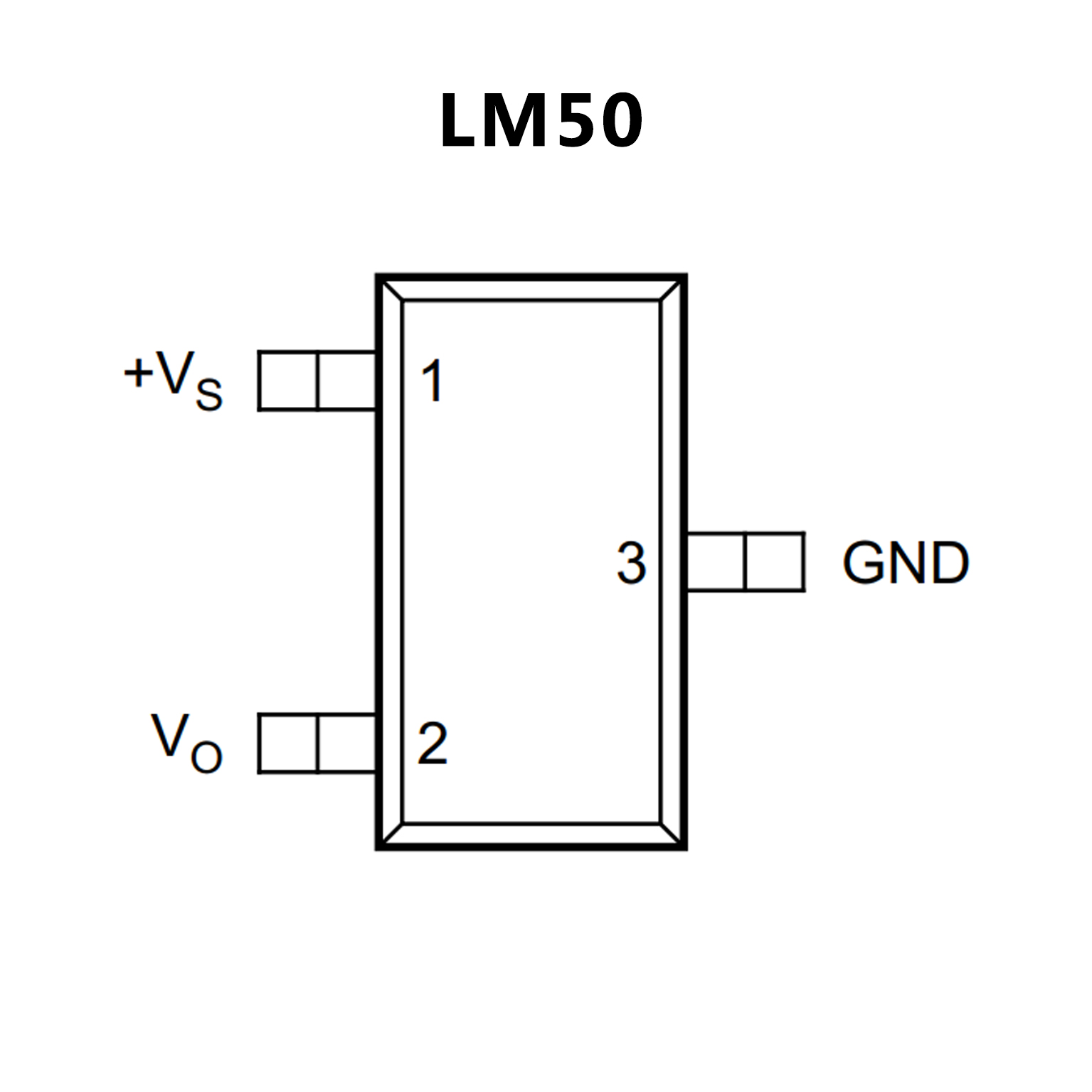

• LM50-Q1 is AEC-Q100 Grade 1
Qualified and isManufactured
on an Automotive Grade Flow
• Calibrated Directly in Degrees Celsius(Centigrade)
• Linear + 10 mV/°C Scale Factor
• ±2°C Accuracy Specified at 25°C
• Specified for Full –40° to 125°C Range
• Suitable for Remote Applications
• Low Cost Due to Wafer-Level Trimming
• Operates From 4.5 V to 10 V
• Less Than 130-µA Current Drain
• Low Self-Heating: Less Than 0.2°C in Still A
• Nonlinearity Less Than 0.8°C Over Temp
• UL Recognized Component
