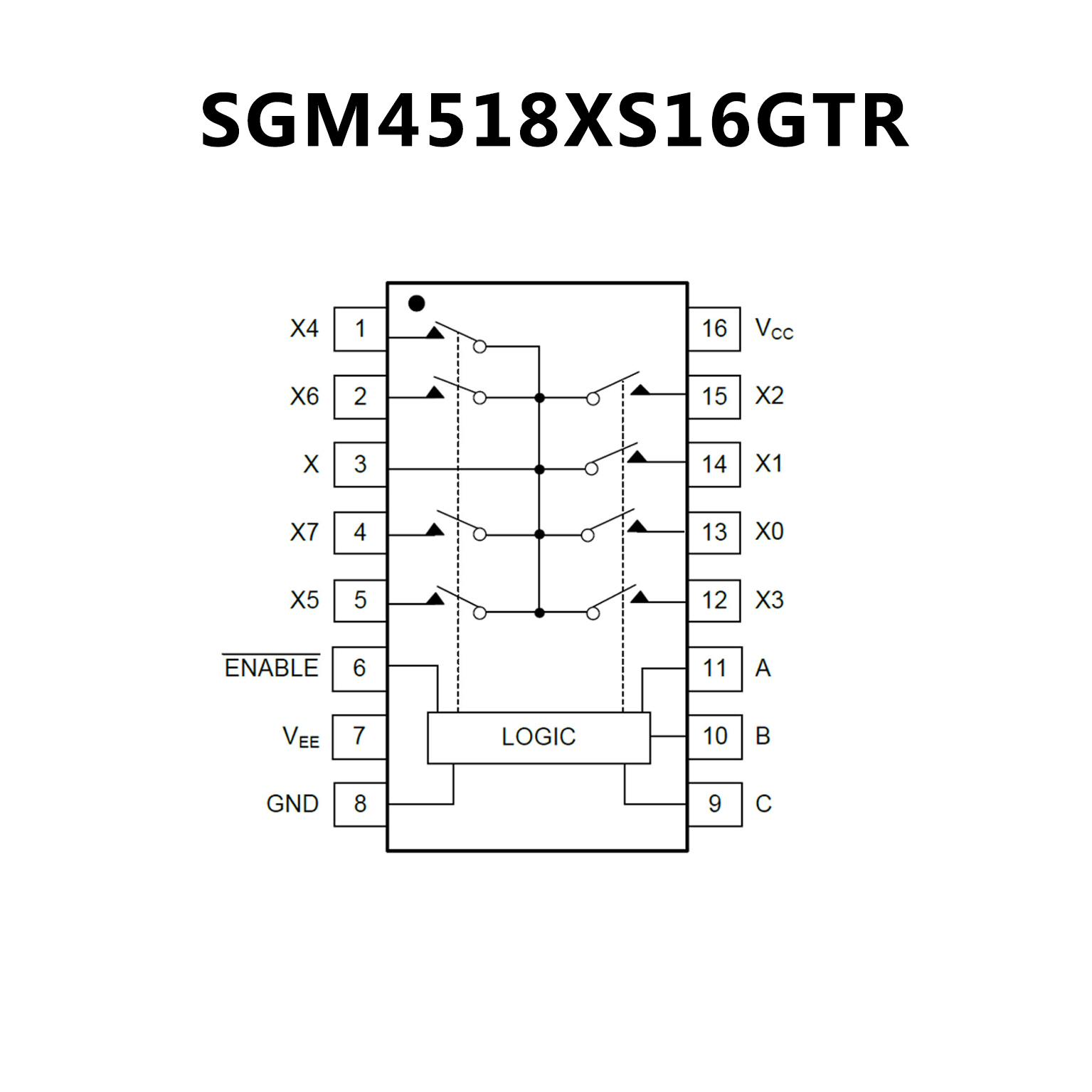

SGM4518.pdf• On-Resistance:
22Ω (TYP) with Single 36V Supply
• Low Off Leakage Current: 0.01μA (TYP)
• Low On Leakage Current: 0.01μA (TYP)
• ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
• High Off-Isolation: -85dB (TYP) (RL = 50Ω, f = 1MHz)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages

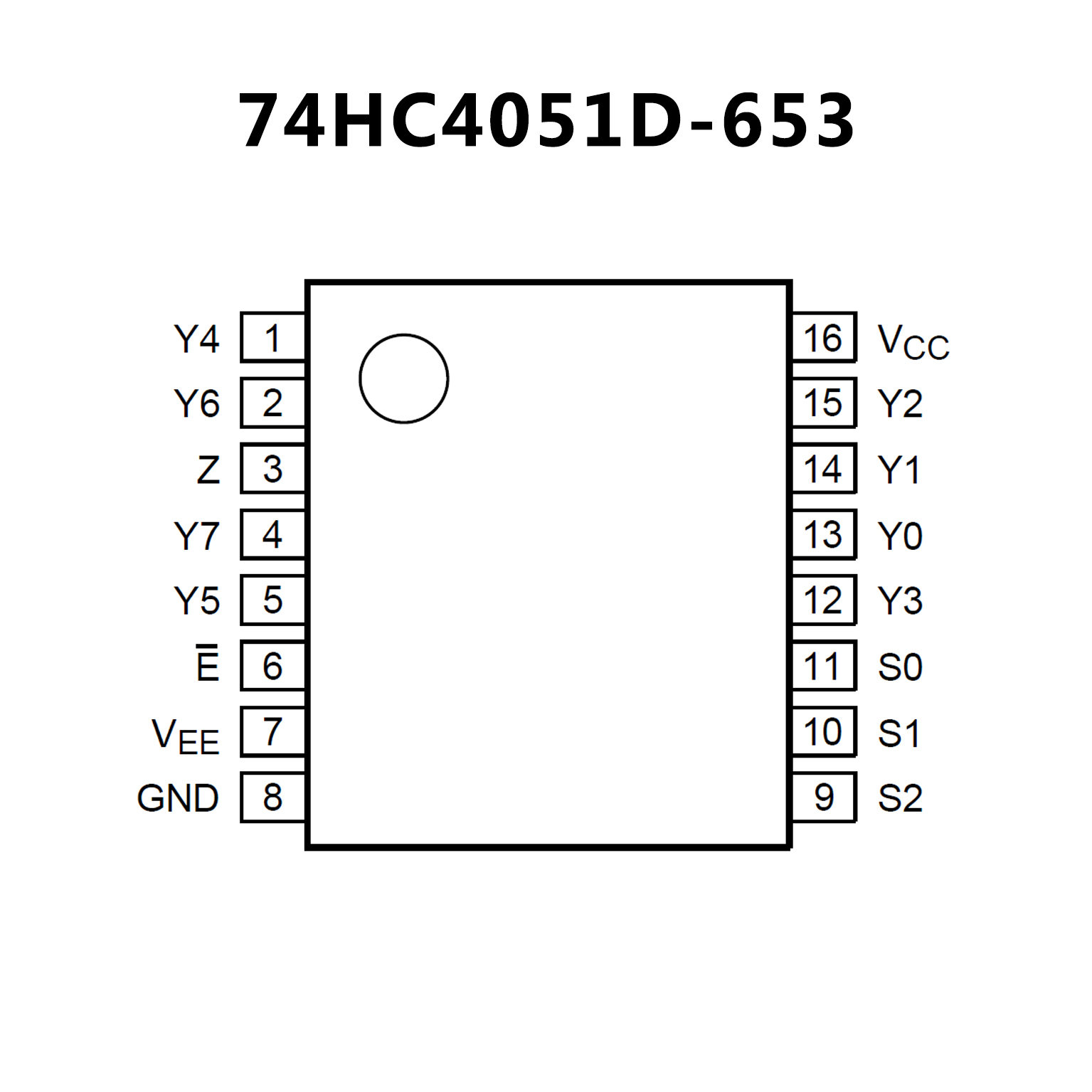

• Wide analog input voltage range from -5 V to +5 V
• CMOS low power dissipation
• High noise immunity
• Complies with JEDEC standards
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at VCC - VEE = 6.0 V
60 Ω (typical) at VCC - VEE = 9.0 V
• Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
• Typical ‘break before make’ built-in
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
