• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

   – Device temperature grade 1: –40°C to 125°C

    ambient operating temperature range

• ±1°C accuracy for local and remote diode sensors

• 0.0625°C resolution for local and remote channels

• 1.7-V to 3.6-V supply and logic voltage range

• 27-µA operating current, 3-µA shutdown current

• Series resistance cancellation

• η-factor and offset correction

• Programmable digital filter

• Diode fault detection

• Two-wire and SMBus™ serial interface

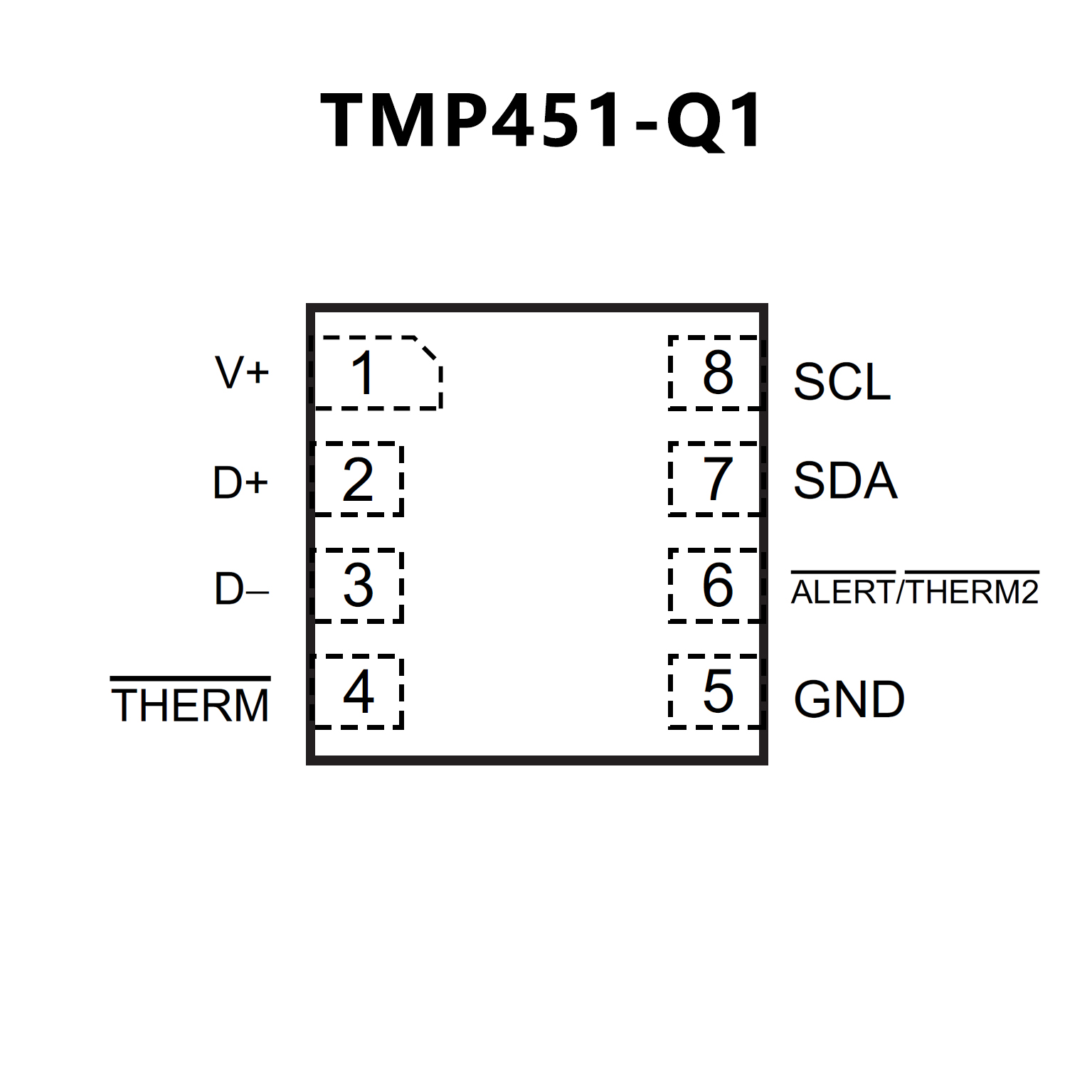

• 8-pin WSON (WDFN) packages

– 2.50-mm × 2.50-mm with Wettable Flanks(DQW)

– 2.00-mm × 2.00-mm (DQF)
