36V High Voltage, CMOS Analog Switch,SGM4520XQS16GTR Replace CD4503BM96.
SGM4520XQS16G SGM4520XQS16G.pdf
FEATURES

 On-Resistance: 22Ω with Single 36V Supply

 Low Off Leakage Current: 0.01μA (TYP)

 Low On Leakage Current: 0.01μA (TYP)

 ±3.2V to ±18V Dual-Supply Operation

   or +3.2V to +36V Single-Supply Operation

 TTL/CMOS-Logic Compatible

 Low Distortion: 0.001% (TYP)

  (RL = 600Ω, f = 1kHz)

• High Off-Isolation: -82dB (TYP)

  (RL = 50Ω, f = 1MHz)

 Low Crosstalk: -88dB (TYP)

  (RL = 50Ω, f = 1MHz)

 -40℃ to +125℃ Operating Temperature Range

 Available in Green SOIC-16, SSOP-16,

  TSSOP-16 and TQFN-3×3-16L Packages

PIN CONFIGUTION
优势替代
CD4503BM96 CD4503BM96.pdf

No.12172

FEATURES

• 1 TTL-Hoad output drive capability.

• 2 output-disable controls

• 3-state outputs

• Pin compatible with industry types MM80C97,

  MC14503 and 340097

• 5V, 10V, and 15V parametric ratings

• Maximum input current of 1uA at 18 V over full

  package-temperature range; 100nA at 18V and 25"C

• Meets all requirements of JEDEC

  Tentative Standard No. 13B,“Standard

  Specifications for Descrlption of 'B'

  Series CMOS Dovlces"

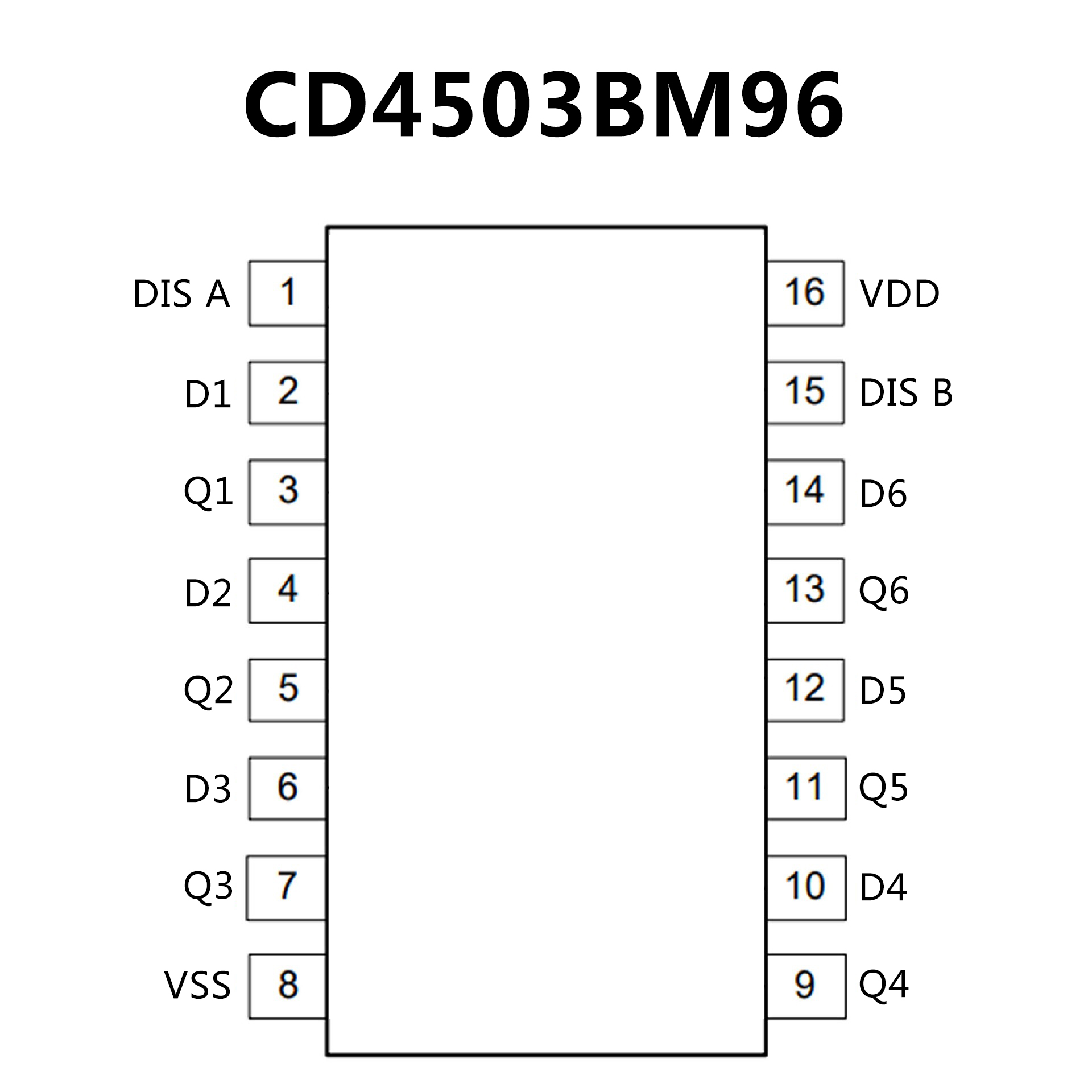

PIN CONFIGUTION
