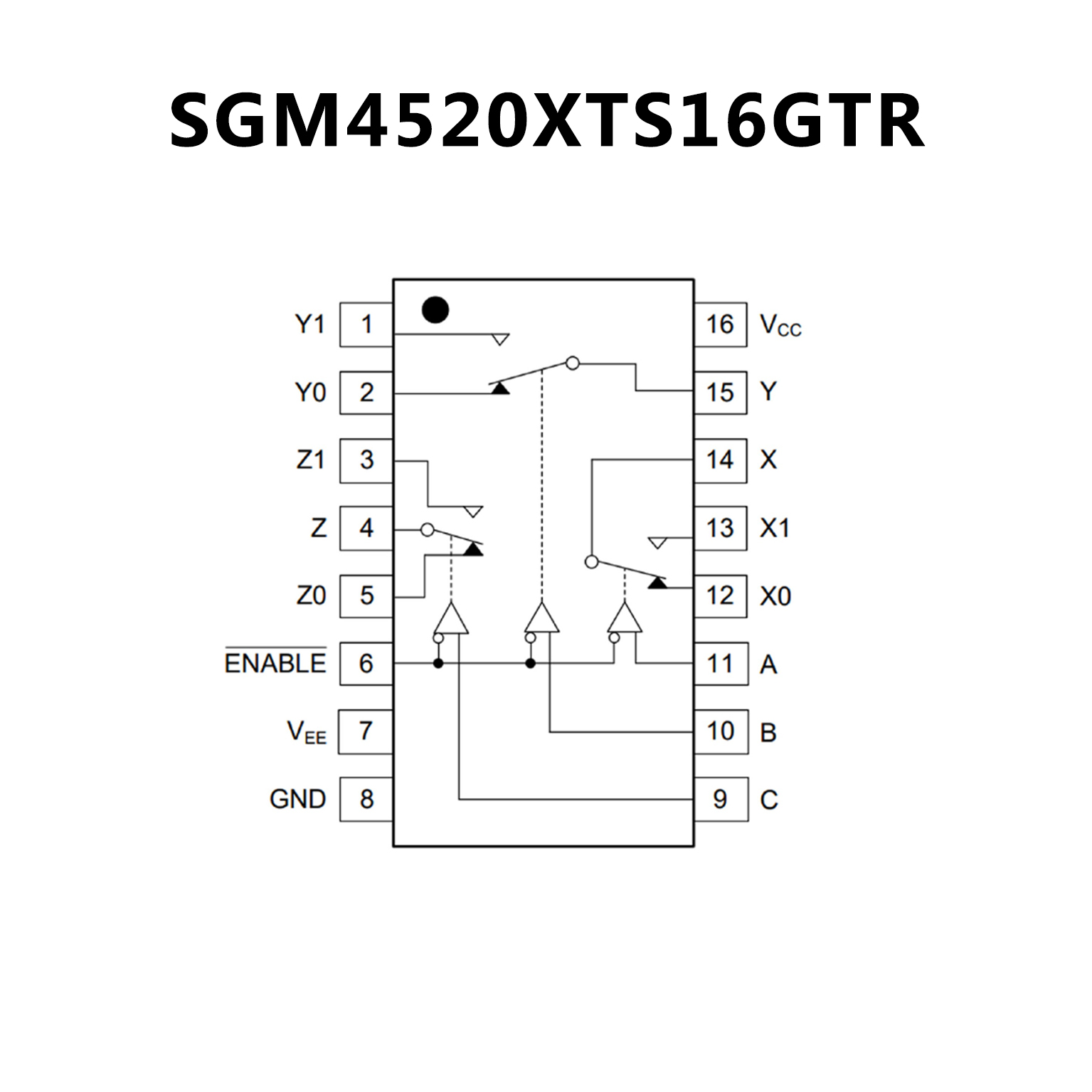

SGM4520.pdf• On-Resistance: 22Ω with Single 36V Supply
• Low Off Leakage Current: 0.01μA (TYP)
• Low On Leakage Current: 0.01μA (TYP)
• ±3.2V to ±18V Dual-Supply Operation
or +3.2V to +36V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
• High Off-Isolation: -82dB (TYP) (RL = 50Ω, f = 1MHz)
• Low Crosstalk: -88dB (TYP) (RL = 50Ω, f = 1MHz)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

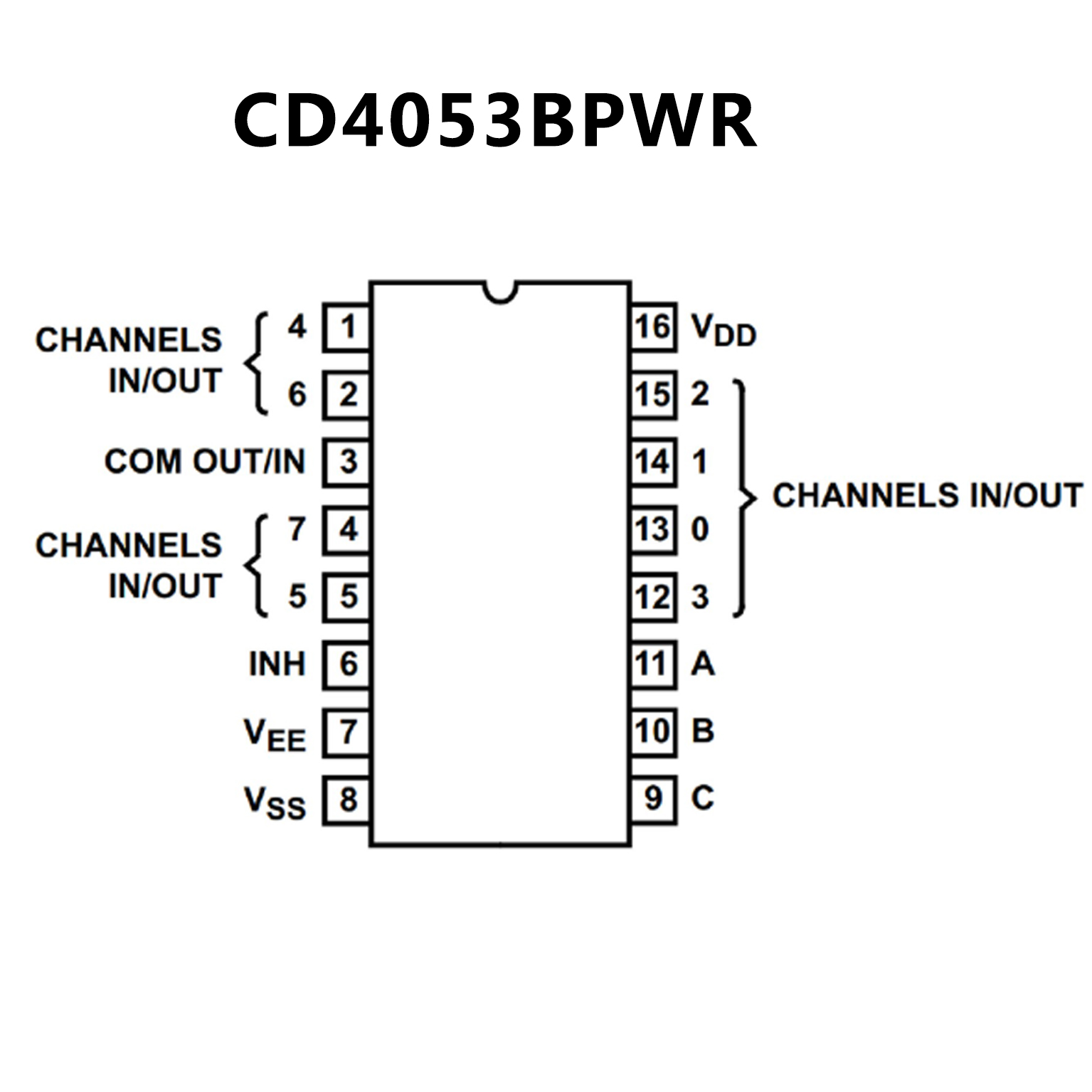

• Wide Range of Digital and Analog Signal Levels
Digital: 3 V to 20 V– Analog: ≤ 20 VP-P
• Low ON Resistance, 125 Ω (Typical) Over
15 VP-PSignal Input Range for VDD – VEE = 18 V
• High OFF Resistance, Channel Leakage
of±100 pA (Typical) at VDD – VEE = 18 V
• Logic-Level Conversion for Digital
AddressingSignals of 3 V to 20 V
(VDD – VSS = 3 V to 20 V)to Switch Analog
Signals to 20 VP-P (VDD – VEE =20 V)
Matched Switch Characteristics, rON = 5 Ω(Typical)
for VDD – VEE = 15 V Very Low Quiescent
Power Dissipation Under All Digital-Control Input
and Supply Conditions, 0.2 µW (Typical) at
VDD – VSS = VDD – VEE = 10 V
• Binary Address Decoding on Chip
• 5 V, 10 V, and 15 V Parametric Ratings
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 µA at 18 V
Over FullPackage Temperature Range,
100 nA at 18 V and25°C
• Break-Before-Make Switching Eliminates ChannelOverlap
