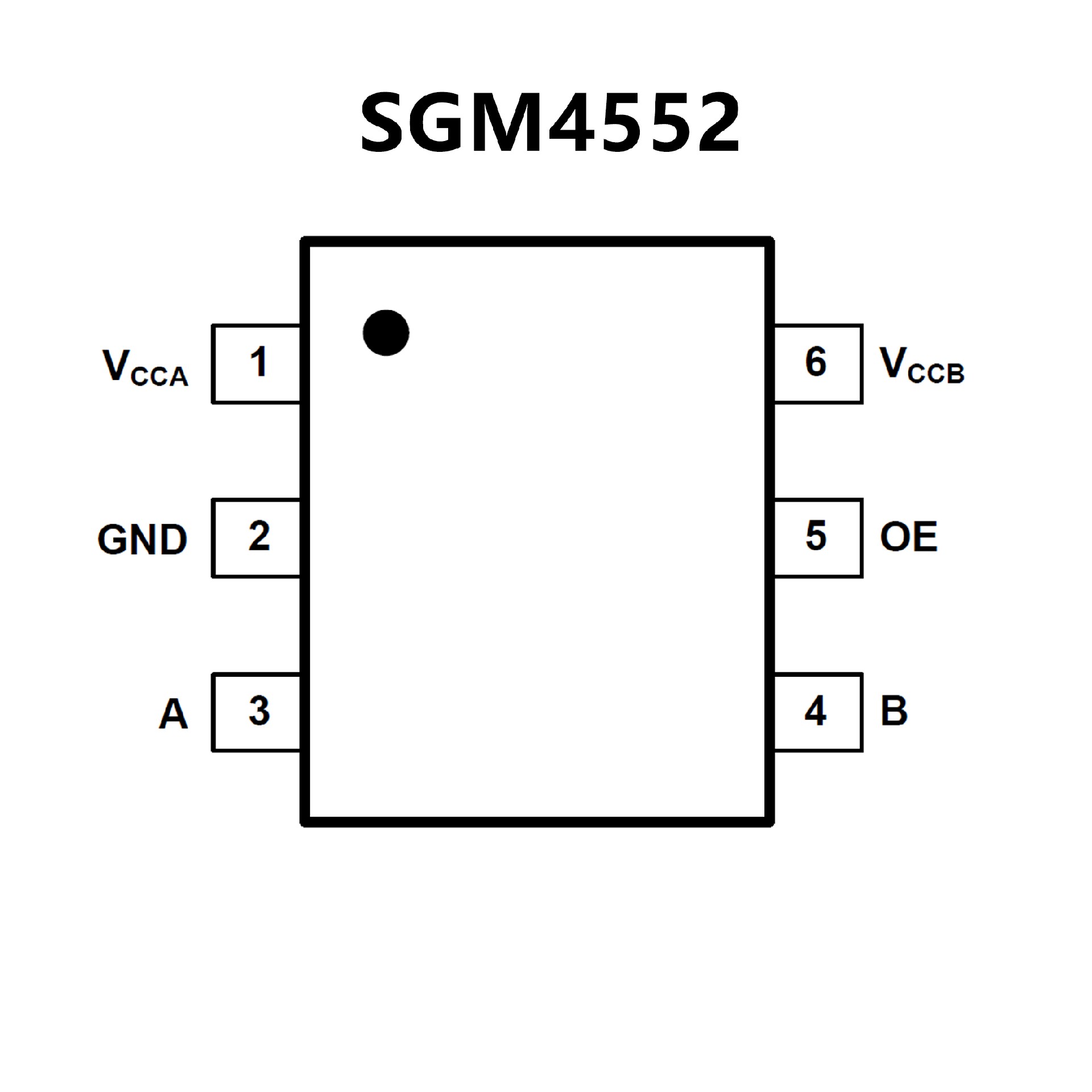

SGM4552XN6G.pdf• No Direction-Control Signal Needed
• Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
• 1.65V to 5.5V on A Port and 2.3V to 5.5V on B Port
(VCCA ≤ VCCB)
• VCC Isolation: If Either VCC is at GND,
Both Ports are in the High-Impedance State
• No Power-Supply Sequencing Required:
Either VCCA or VCCB can be Ramped First
• IOFF: Supports Partial-Power-Down Mode Operation
• Available in Green UTDFN-1.45×1-6L, SOT-23-6 and
SC70-6 Packages
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
A Port
2500 V Human-Body Model (A114-B)
200 V Machine Model (A115-A)
1500 V Charged-Device Model (C101)
B Port
8 kV Human-Body Model (A114-B)
200 V Machine Model (A115-A)
1500 V Charged-Device Model (C101)

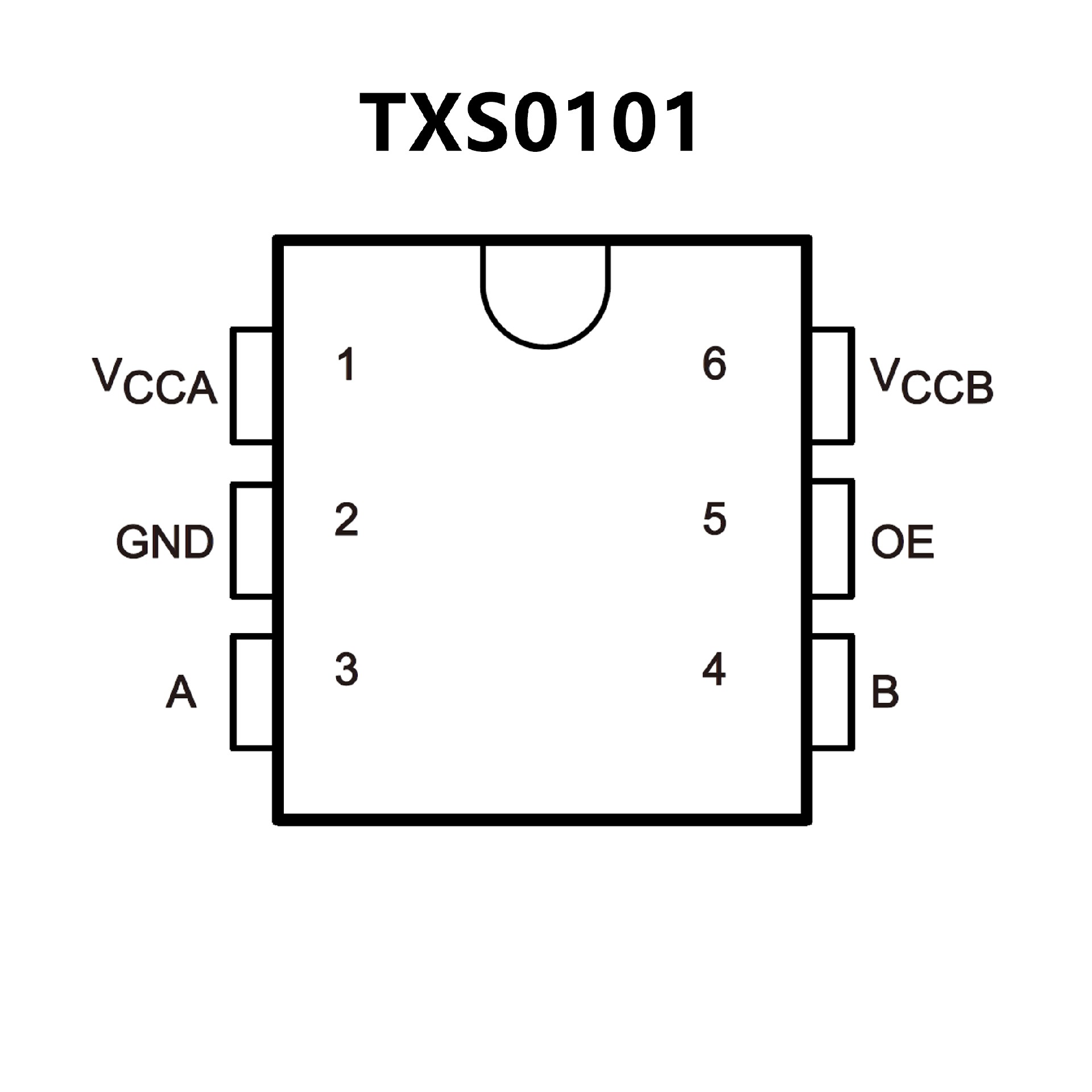

• No Direction-Control Signal Needed
• Maximum Data Rates
24 Mbps (Push Pull)
2 Mbps (Open Drain)
• Available in the Texas Instruments NanoFree™
Package
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B
port (VCCA ≤ VCCB)
• VCC Isolation Feature – If Either VCC Input Is at
GND, Both Ports Are in the High-Impedance State
• No Power-Supply Sequencing Required – Either
VCCA or VCCB Can be Ramped First
• Ioff Supports Partial-Power-Down Mode Operation
