SGM4562AQ.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• VCCA Supply Voltage Range: 0.9V to 3.6V
• VCCB Supply Voltage Range: 0.9V to 3.6V
• Support VCCA or VCCB Isolation
When VCCA or VCCB is at GND, Device Enters
High-Impedance State
• OE Input Tracks the VCCA Supply
• Low Power Consumption: 5μA (MAX) (ICCA or ICCB)
• Support Power-Down Mode
• -40℃ to +125℃ Operating Temperature Range

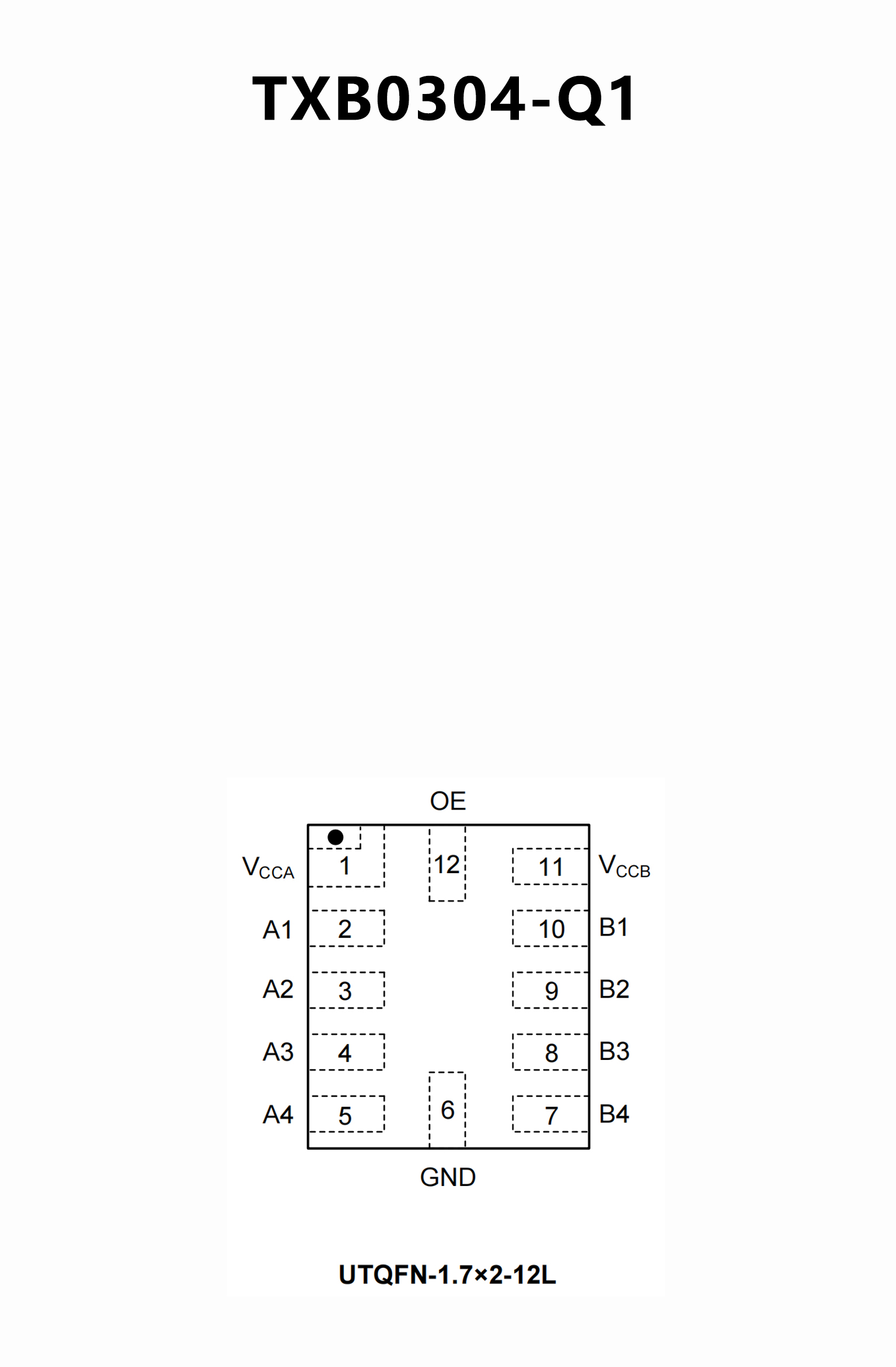

• Available in Green TSSOP-14 and UTQFN-1.7×2-12L
Packages
• Fully Symmetric Supply Voltages, 0.9 V to 3.6 V
on A Port and 0.9 V to 3.6 V
• VCC Isolation Feature – If Either VCC Input is at
GND, all Outputs are in High-Impedance State
• OE Input Circuit Referenced to VCCA
• Low Power Consumption, 5 μA Max (ICCA or ICCB)
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 8000-V Human-Body Model (A114-B)
– 1000-V Charged-Device Model (C101)
