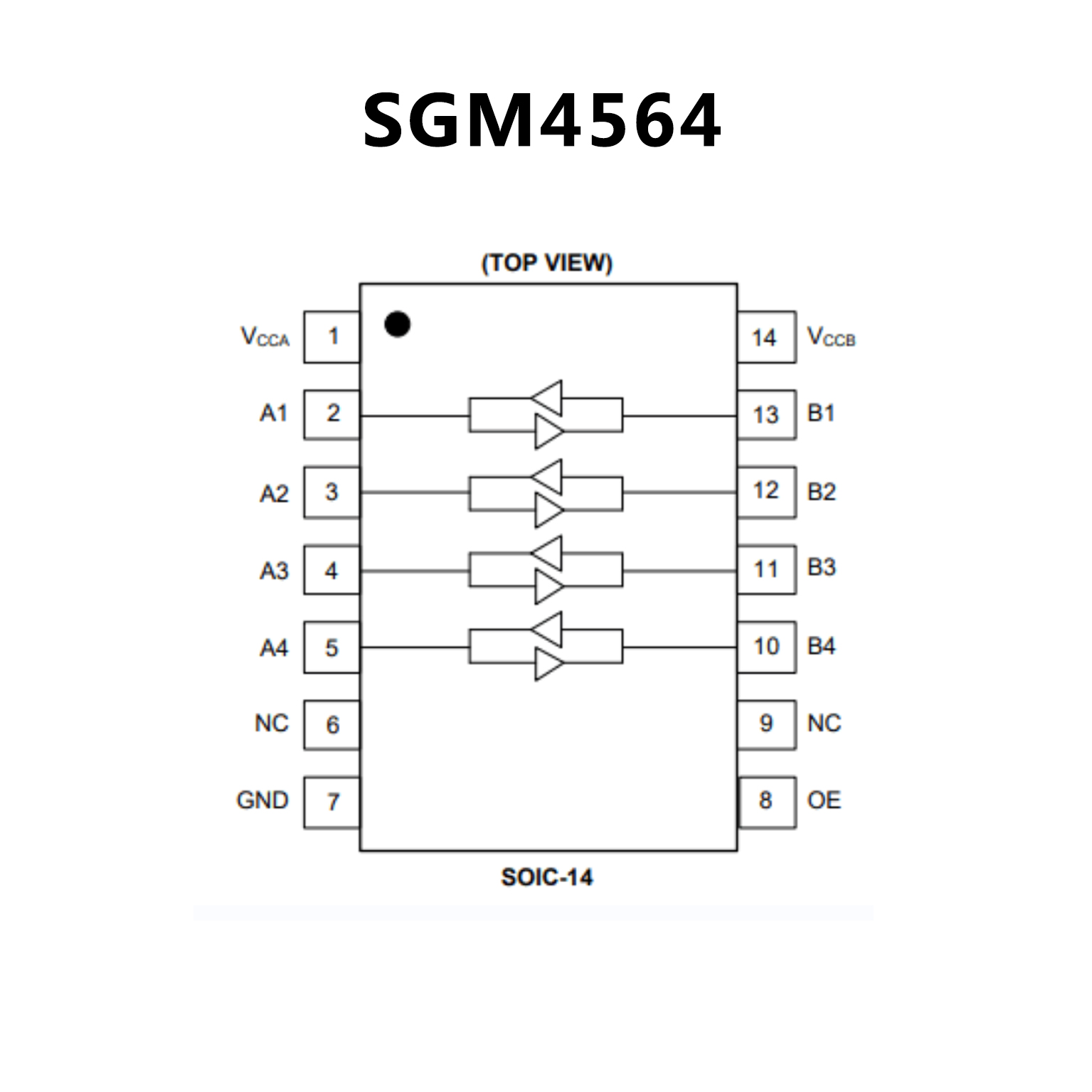

SGM4564.pdf• Power Supply Voltage Range (VCCA ≤ VCCB)
A Ports: 1.2V to 5.5VB Ports: 1.65V to 5.5V
• Support VCCA or VCCB Isolation
When VCCA or VCCB is Low,
Device Enters Power-Down Mode
• OE Input Circuit Referenced to VCCA
• Support Partial-Power-Down Function
• Support Push-Pull Output
• Low Power Consumption
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-14, UTQFN-
1.8×1.8-12L and TQFN-2×2-12L Packages
• No Direction-Control Signal Needed
• Max Data Rates
24 Mbps (Push Pull)2 Mbps (Open Drain)
• Available in the Texas Instruments
NanoFree™ Package
• 1.65 V to 3.6 V on A port and 2.3
V to 5.5 V on B port (VCCA ≤ VCCB)
• No Power-Supply Sequencing
Required – VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 A Port
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
±8-kV Contact Discharge±10-kV Air-Gap Discharge
