Low Power, Low Supply Voltage,SOT Package, Digital Temperature Sensor, TMP102 P2P SGM457.
SGM457
SGM457.pdf
SGM457.pdfFEATURES
• 1.6Vto 5.5V Supply Voltage Range
• Temperature Accuracy:
– 40℃to +125℃: ±2℃(MAX)
• Operating Supply Current:14μA (TYP)
• ShutdownMode Current: 0.5μA (TYP)
• Resolution: 12 Bits
• Serial Control Bus is Compatible withTwo-Wire,I2C
• AvailableinaGreen SOT-563-6Package

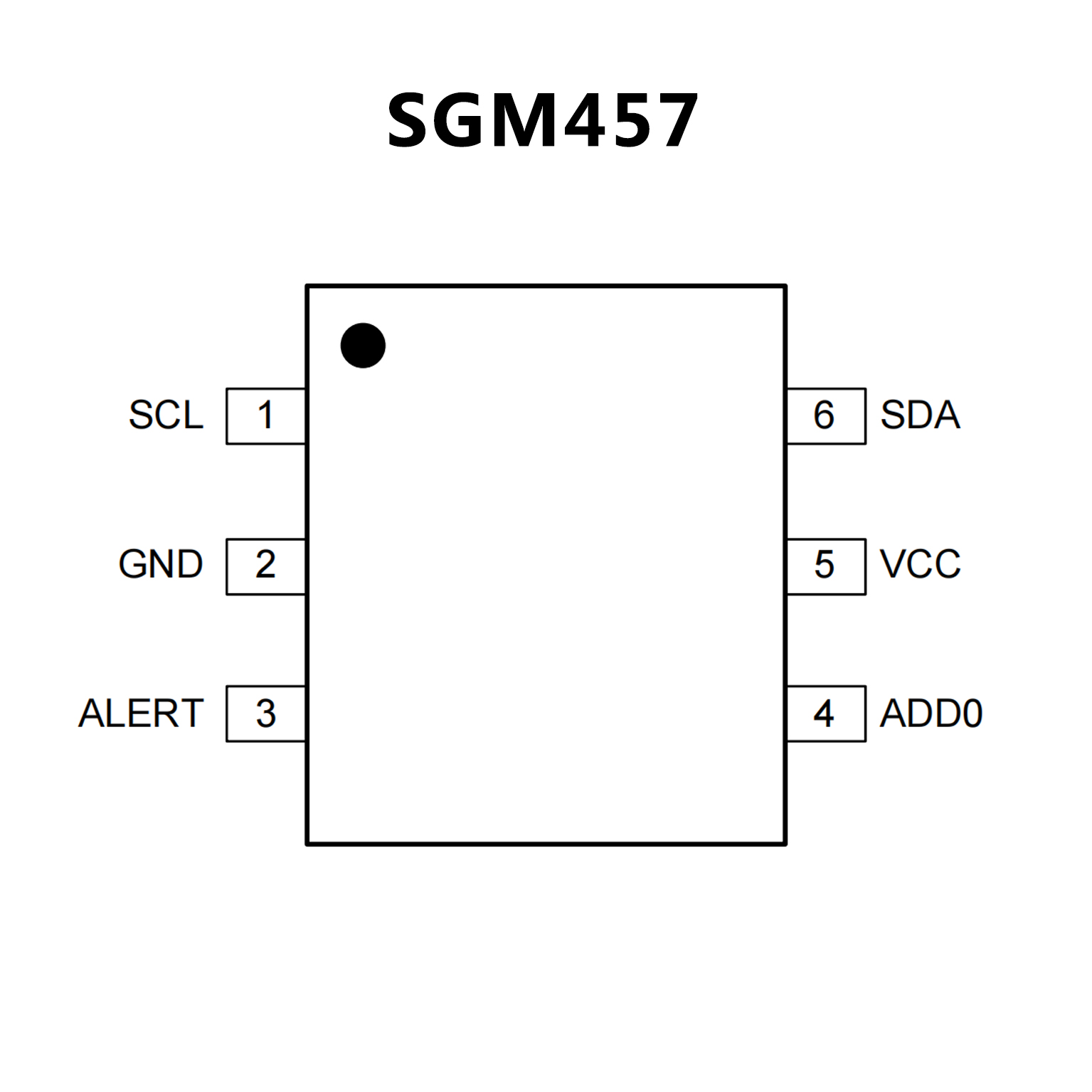

PIN CONFIGUTION
优势替代
FEATURES
• SOT563 Package (1.6-mm × 1.6-mm) is a 68%
Smaller Footprint than SOT-23
• Accuracy Without Calibration:
– 2.0°C (max) from –25°C to 85°C
– 3.0°C (max) from –40°C to 125°C
• Low Quiescent Current:
– 10-μA Active (max)
– 1-μA Shutdown (max)
• Supply Range: 1.4 to 3.6 V
• Resolution: 12 Bits
• Digital Output: SMBus, Two-Wire, and I2C
Interface Compatibility
• NIST Traceable

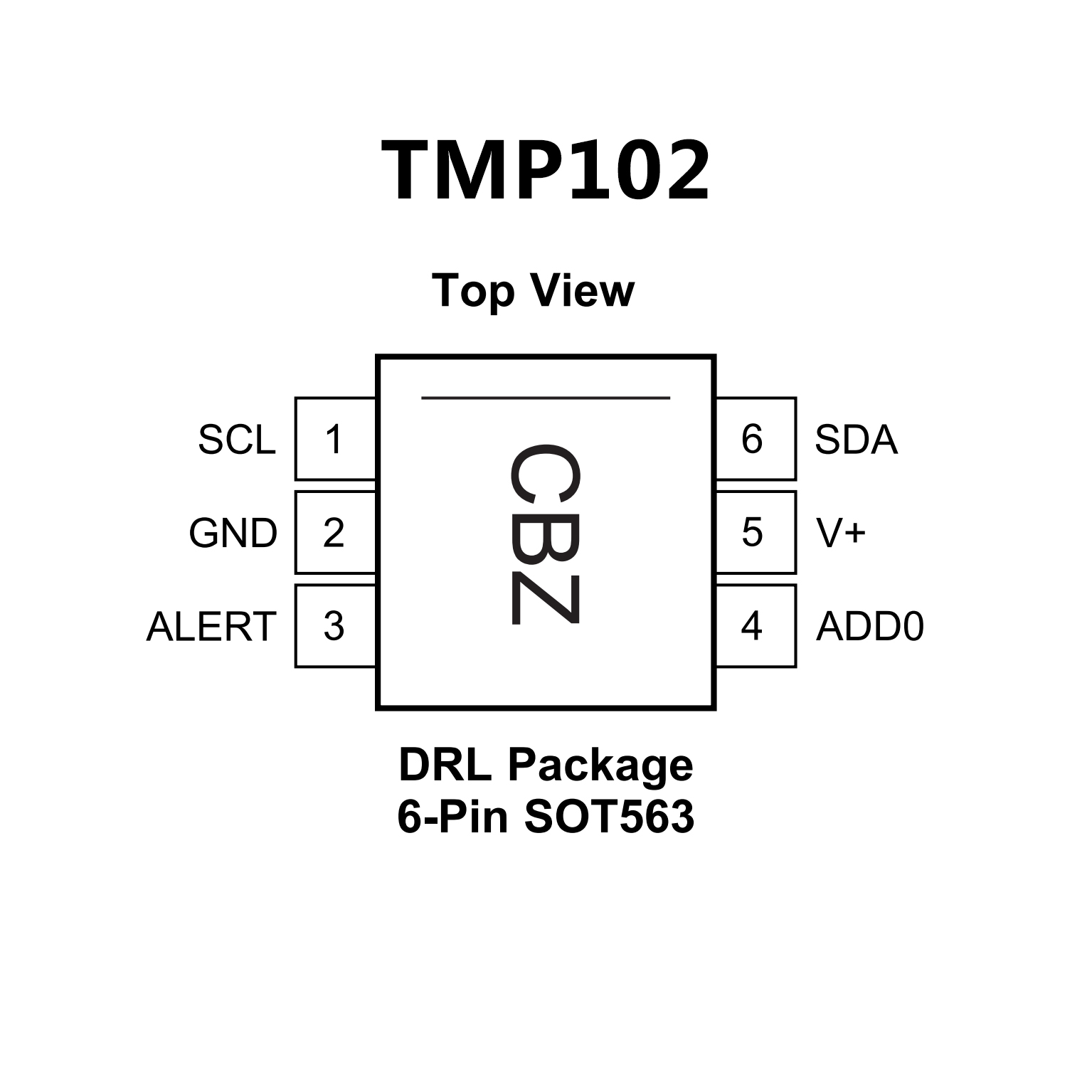

PIN CONFIGUTION
