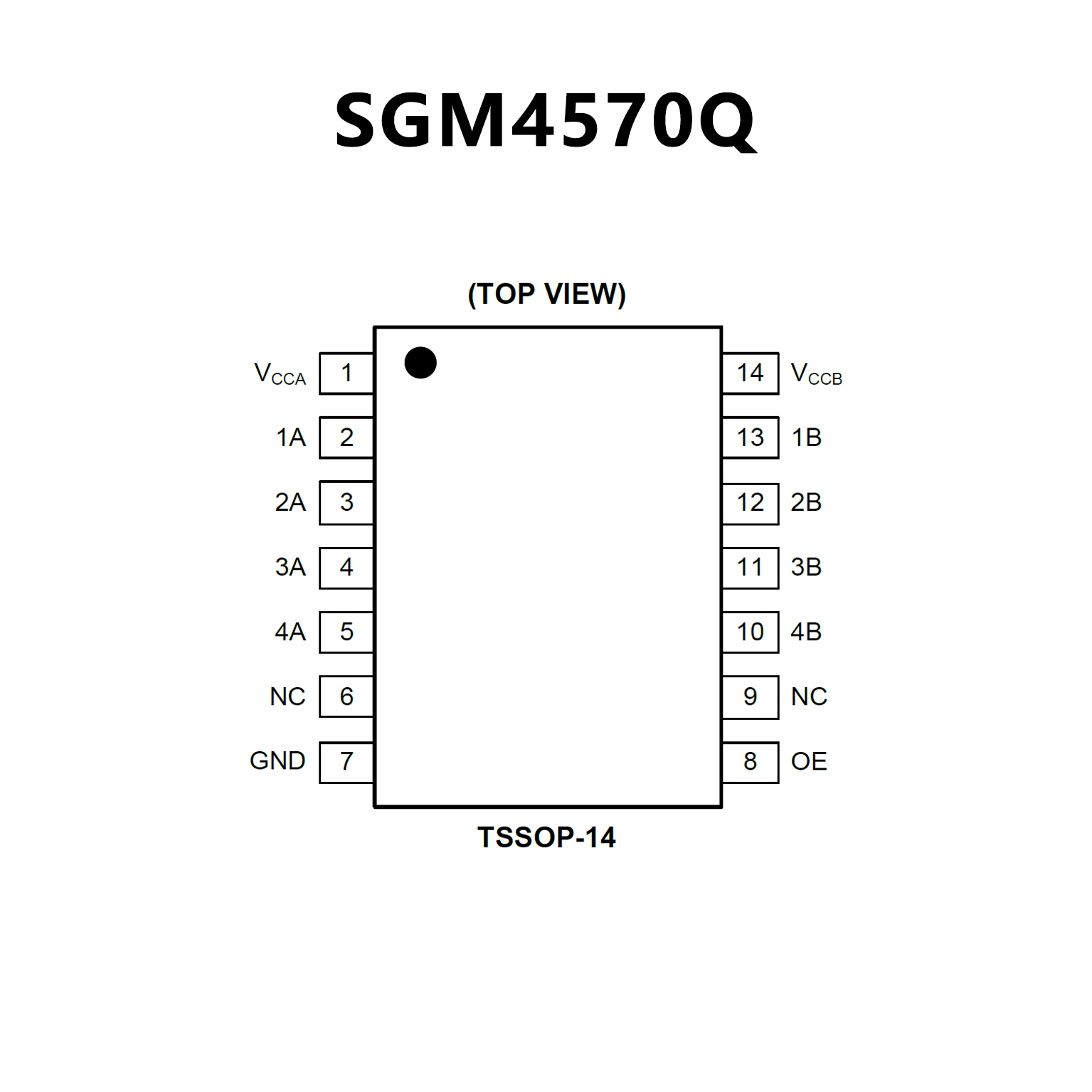

SGM4570Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• VCCA Supply Voltage Range: 1.65V to 3.6V
• VCCB Supply Voltage Range: 2.3V to 5.5V
• Inputs Accept Voltages up to 5.5V
• Push-Pull Data Rates: 24Mbps (MAX)
• Support Partial Power-Down Mode
• Available in a Green TSSOP-14 Package

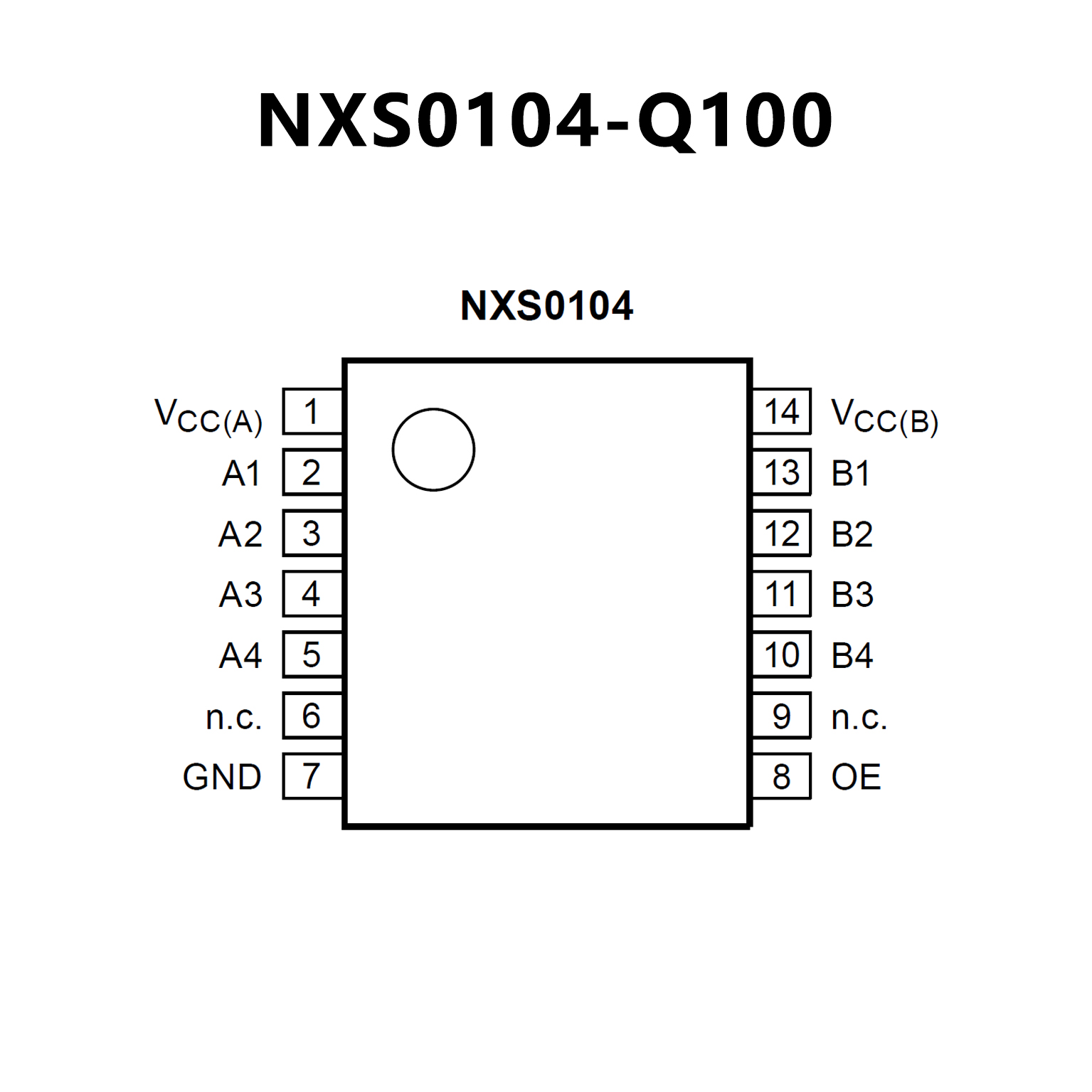

• Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
• Specified from -40°C to +85°C and from -40°C to +125°C
• Wide supply voltage range:
• VCC(A): 1.65V to 3.6V and VCC(B): 2.3V to 5.5V
• Maximum data rates:
• Push-pull: 24 Mbps
• IOFF circuitry provides partial Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM: ANSI/ESDA/Jedec JS-001 Class 2 exceeds
2.5 kV for A port
• HBM: ANSI/ESDA/Jedec JS-001 Class 3B exceeds
15 kV for B port
• MIL-STD-883, method 3015 Class 2 exceeds 2.5 kV
for A port
• MIL-STD-883, method 3015 Class 3B exceeds 15 kV
for B port
• IEC61000-4-2 contact discharge exceeds 8000 V
for B port
• Latch-up performance exceeds 100 mA per JESD
78B Class II
• Multiple package options
• DHVQFN package with Side-Wettable Flanks enabling
Automatic Optical Inspection (AOI) of solder joints
