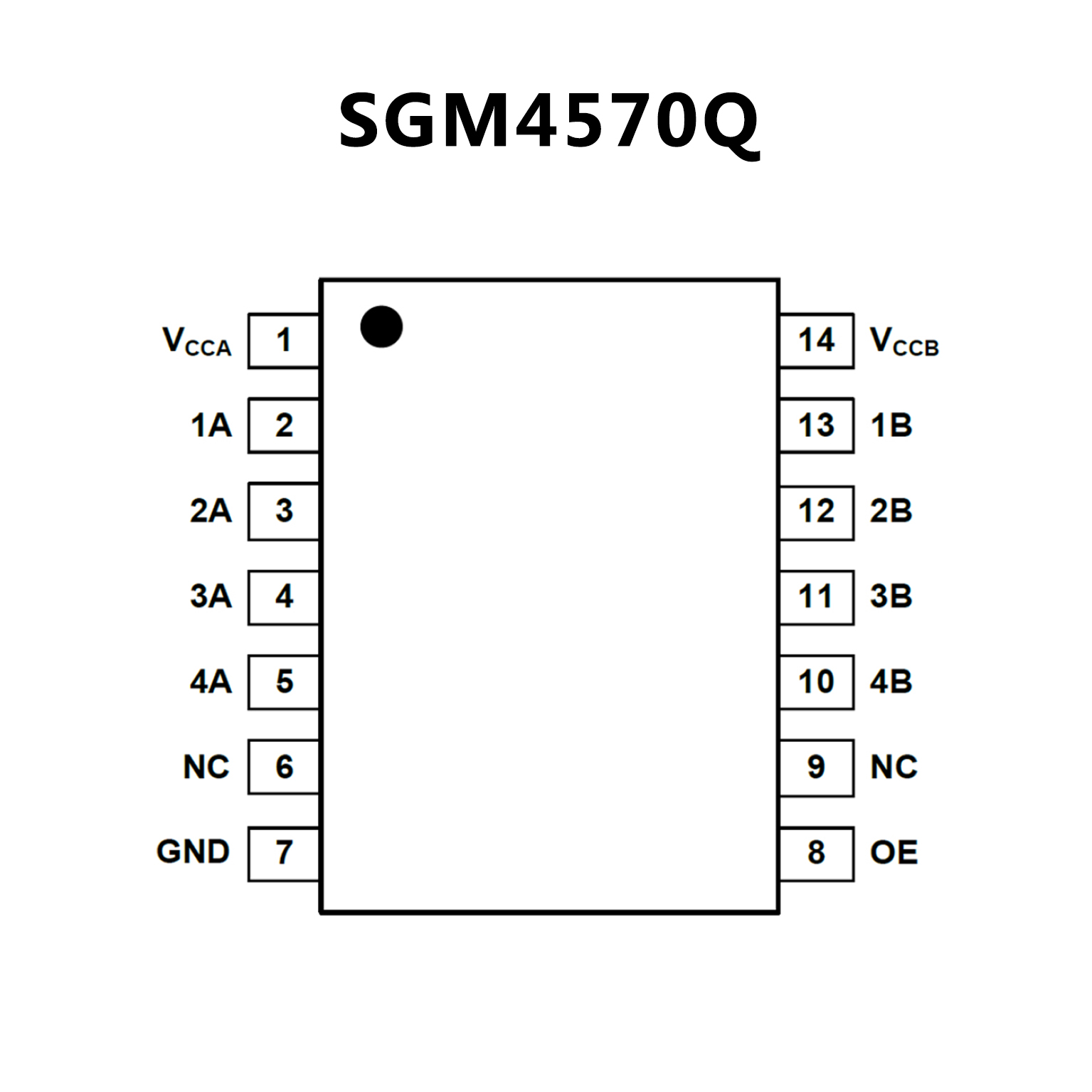

SGM4570Q.pdf• AEC-Q100 Qualified for Automotive
Applications Device Temperature Grade 1
TA = -40℃ to +125℃
• VCCA Supply Voltage Range: 1.65V to 3.6V
• VCCB Supply Voltage Range: 2.3V to 5.5V
• Inputs Accept Voltages up to 5.5V
• Push-Pull Data Rates: 24Mbps (MAX)
• Support Partial Power-Down Mode
• Available in a Green TSSOP-14 Package
• No Direction-Control Signal Needed
• Max Data Rates
24 Mbps (Push Pull)2 Mbps (Open Drain)

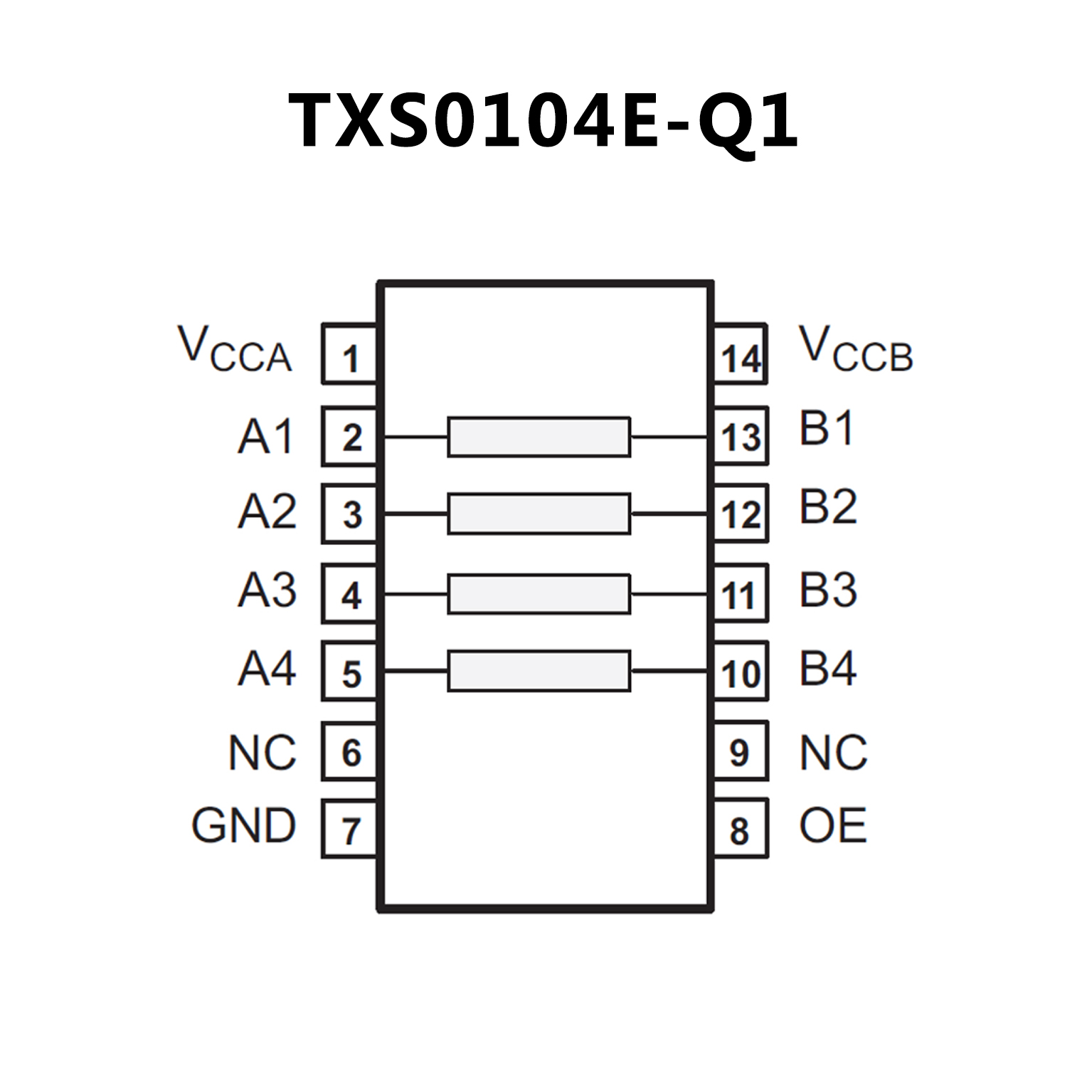

• Available in the Texas Instruments
NanoFree™ Package
• 1.65 V to 3.6 V on A port and 2.3 V to
5.5 V on B port (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required –
VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22A Port
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)±8-kV Contact Discharge
±10-kV Air-Gap Discharge
