Dual supply translating transceiver; open drain;auto direction sensing, SGM4573XTS14GTR Replace NXS0104.
SGM4573
SGM4573.pdf
SGM4573.pdfFEATURES
• VCCA Supply Voltage Range: 1.65V to 3.6V
• VCCB Supply Voltage Range: 2.3V to 5.5V
• Inputs Accept Voltages up to 5.5V
• Push-Pull Data Rate: 24Mbps
• IOFF Circuitry Provides Partial Power-Down
Mode Operation
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green TSSOP-14 Package

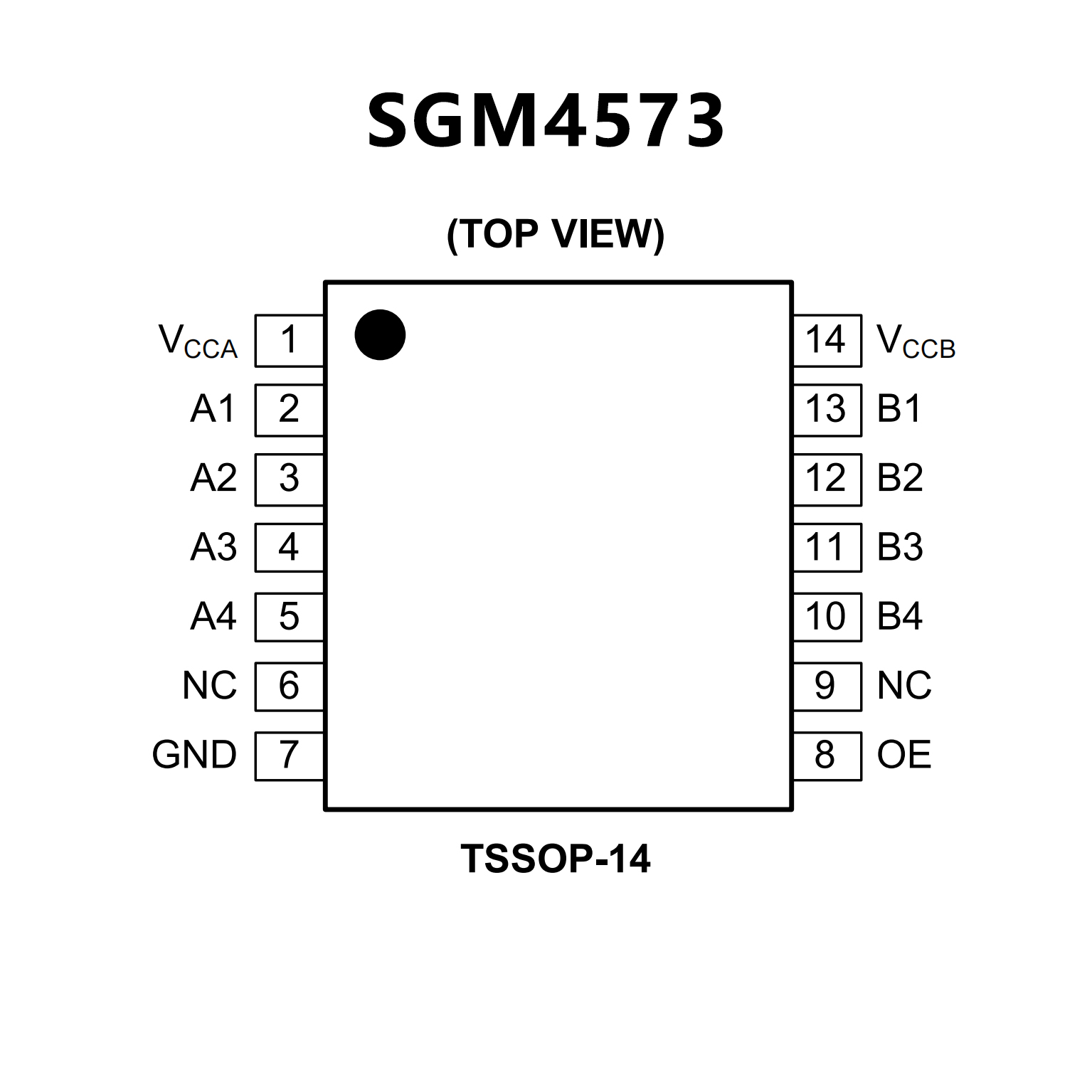

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range:
• VCC(A): 1.65 V to 3.6 V and
VCC(B): 2.3 V to 5.5 V
• Maximum data rates:
• Push-pull: 24 Mbps
• IOFF circuitry provides partial
Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM: ANSI/ESDA/Jedec JS-001 Class
2 exceeds 2.5 kV for A port
• HBM: ANSI/ESDA/Jedec JS-001 Class
3B exceeds 15 kV for B port
• CDM: ANSI/ESDA/Jedec JS-002
Class C3 exceeds 1.5 kV
• IEC61000-4-2 contact discharge
exceeds 8000 V for B port
• Latch-up performance exceeds 100
mA per JESD 78B Class II
• Multiple package options
• Specified from -40 °C to +85 °C
and -40 °C to +125 °C

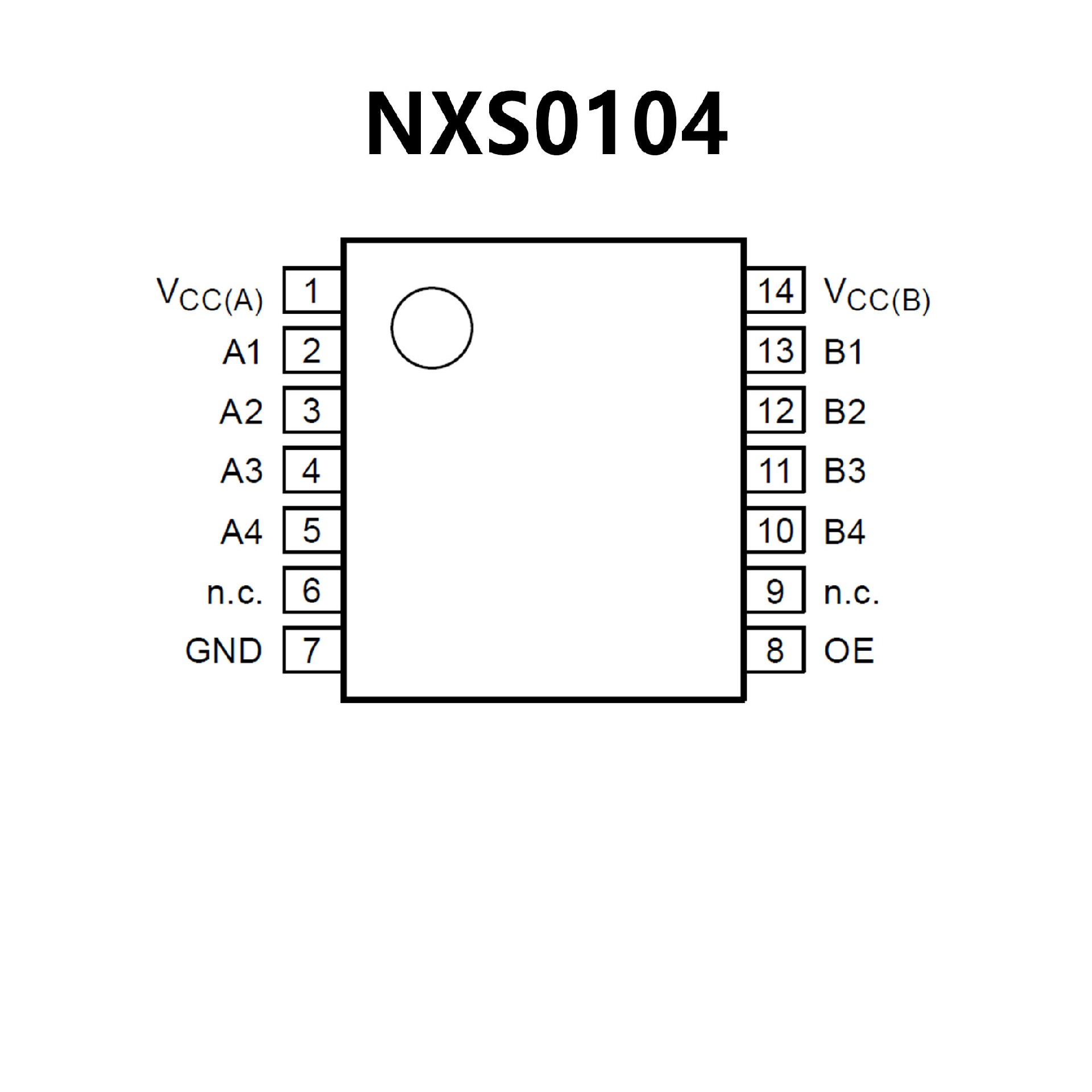

PIN CONFIGUTION
