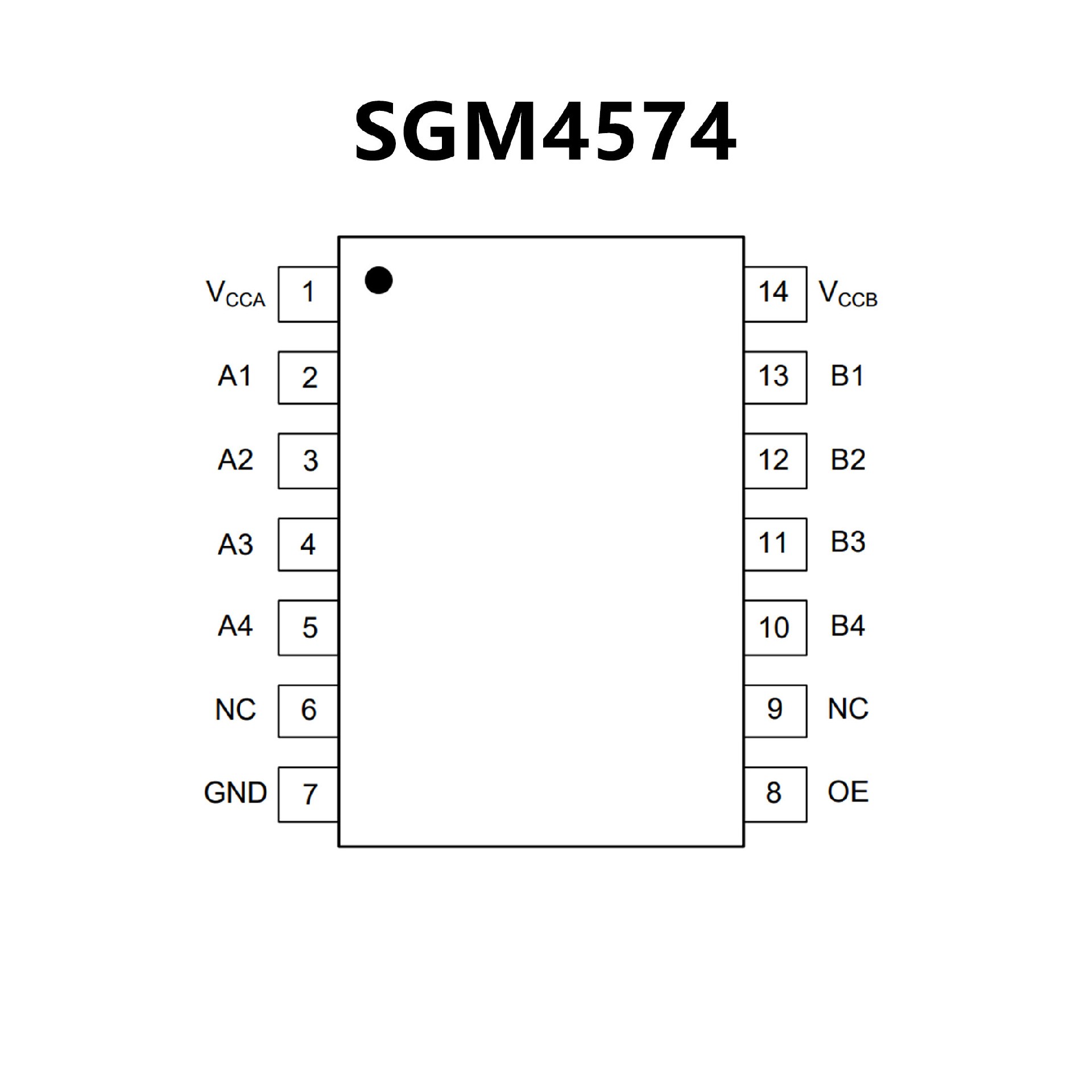

SGM4574.pdf• No Direction-Control Signal Needed
• Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
• 1.65V to 5.5V on A ports and 2.3V to 5.5V
on B ports (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required
Either VCCA or VCCB Can Be Ramped First
• Available in Green SOIC-14, UTQFN-1.8×1.8-12L
and TQFN-2×2-12L Packages

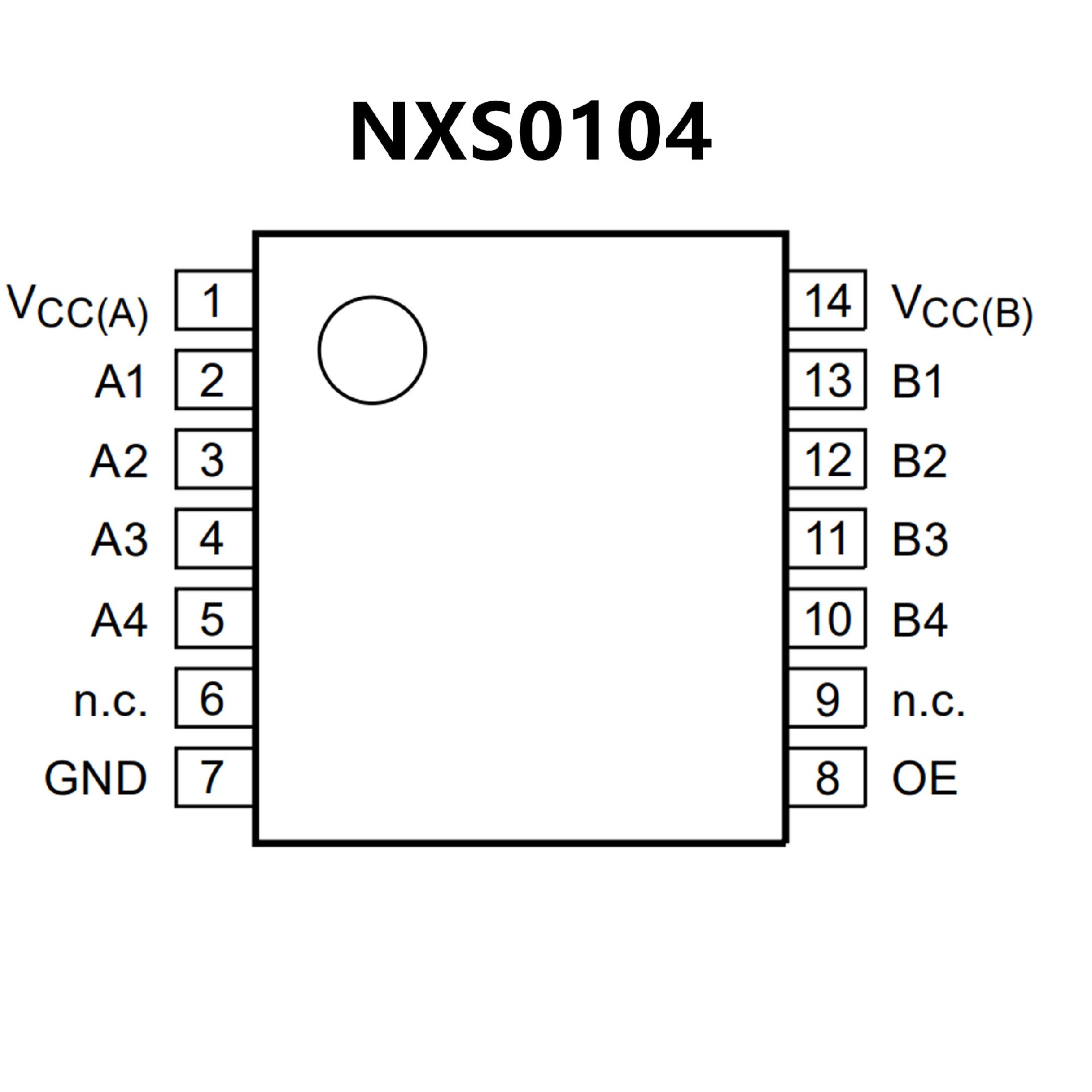

• Wide supply voltage range:
• VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
• Maximum data rates:
• Push-pull: 24 Mbps
• IOFF circuitry provides partial
Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM: ANSI/ESDA/Jedec JS-001
Class 2 exceeds 2.5 kV for A port
• HBM: ANSI/ESDA/Jedec JS-001
Class 3B exceeds 15 kV for B port
• CDM: ANSI/ESDA/Jedec JS-002
Class C3 exceeds 1.5 kV
• IEC61000-4-2 contact discharge
exceeds 8000 V for B port
• Latch-up performance exceeds
100 mA per JESD 78B Class II
• Multiple package options
• Specified from -40 °C to +85 °C
and -40 °C to +125 °C
