SGM4574.pdf• No Direction-Control Signal Needed
• Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
• 1.65V to 5.5V on A ports and 2.3V to 5.5V on B
ports (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required
Either VCCA or VCCB Can Be Ramped First

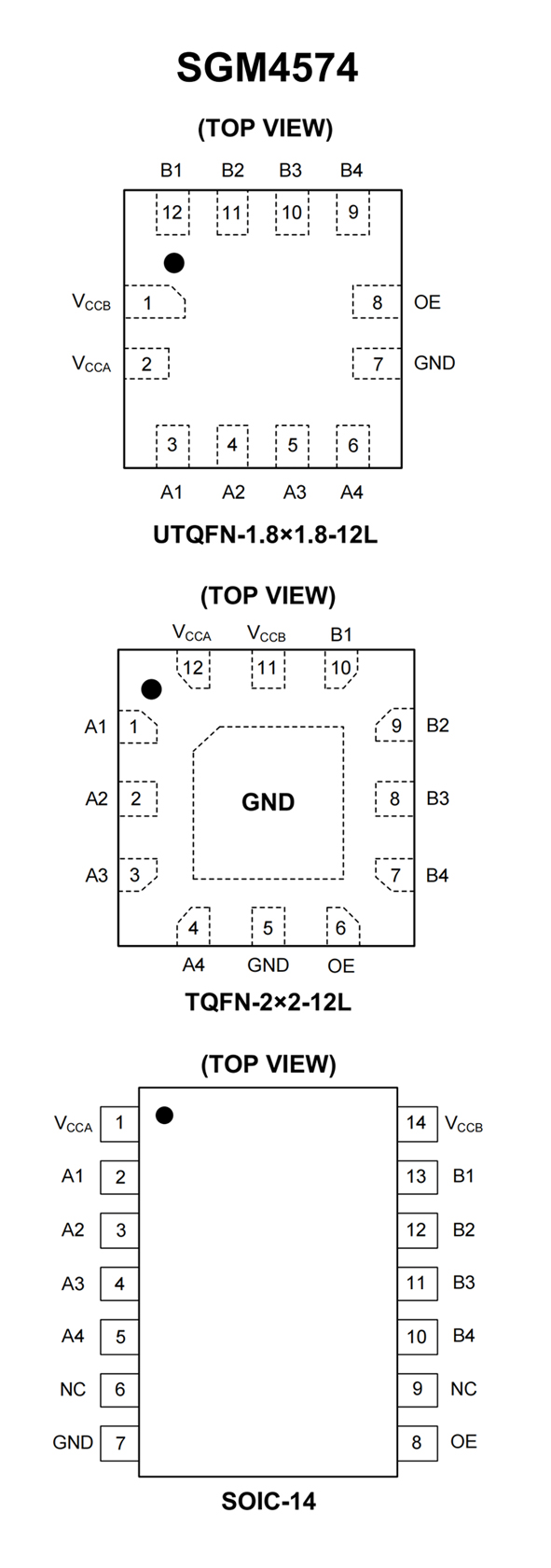

• Available in Green SOIC-14, UTQFN-1.8×1.8-12L
and TQFN-2×2-12L Packages
• No Direction-Control Signal Needed
• Max Data Rates
– 24 Mbps (Push Pull)
– 2 Mbps (Open Drain)

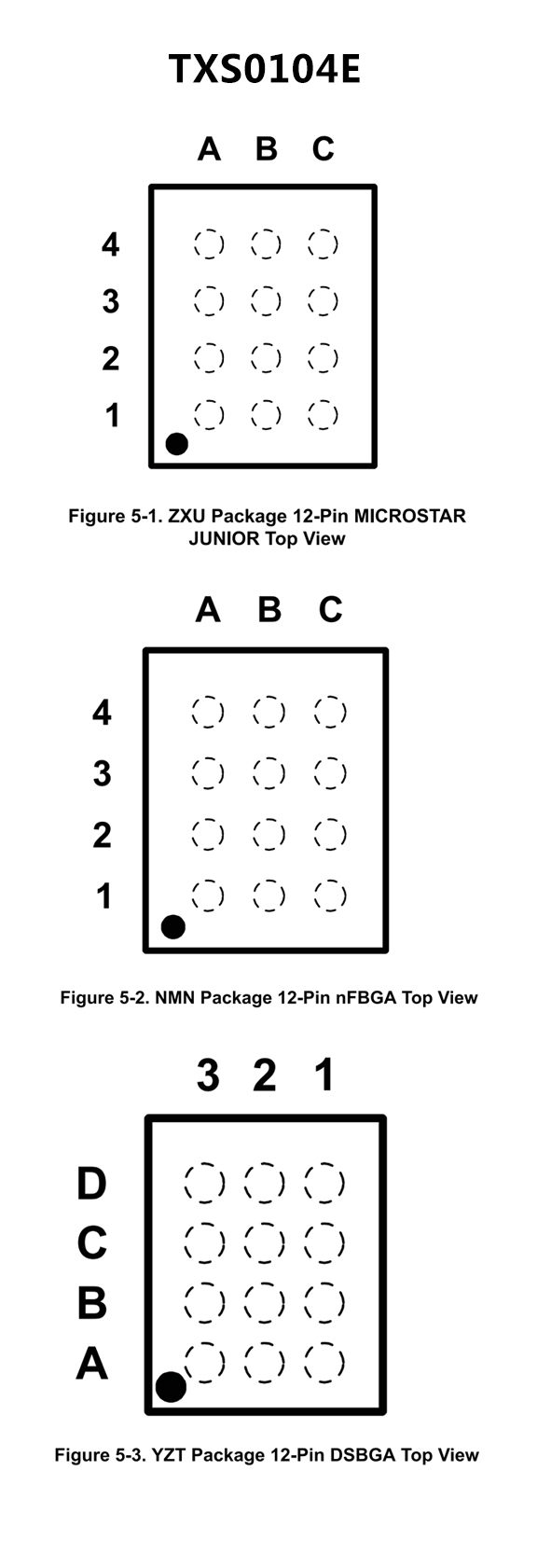

• Available in the Texas Instruments NanoFreeTM
Package
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B
port (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required – VCCA or
VCCB Can Be Ramped First
• Latch-Up Performance Exceeds 100 mA Per JESD
78, Class II
• ESD Protection Exceeds JESD 22
– A Port
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
– B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
– ±8-kV Contact Discharge
– ±10-kV Air-Gap Discharge
