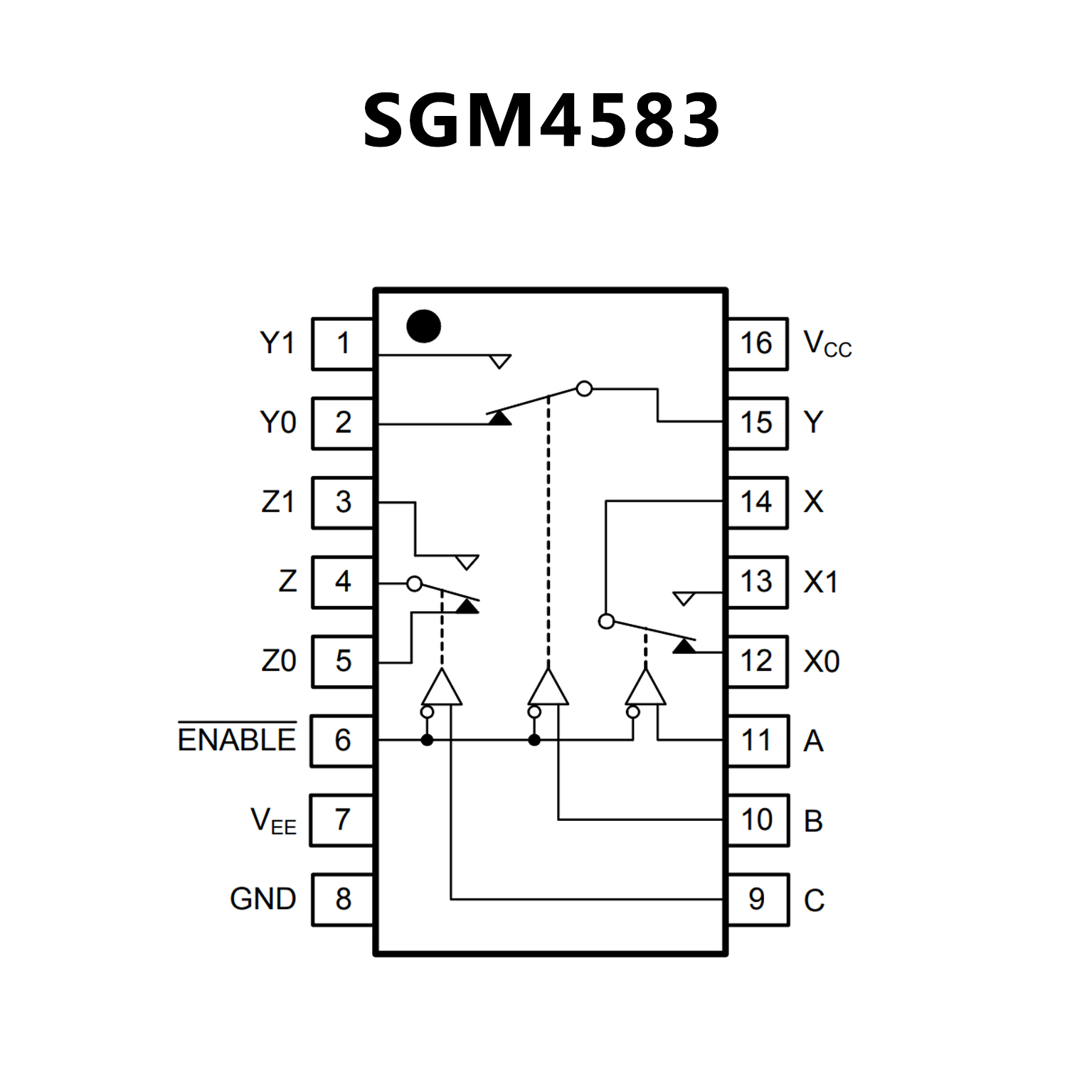

SGM4583.pdf• Guaranteed On-Resistance
51Ω with ±5V Supplies
84Ω with Single +5V Supply
• Guaranteed On-Resistance Match Between
Channels
• Low Off-Leakage Current 10nA at +25℃
• Low On-Leakage Current 10nA at +25℃
• ±1.8V to ±5.5V Dual-Supply Operation or
+3.6V to +11V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.02% (RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -62dB (RL = 50Ω, f = 1MHz)
• Low Crosstalk: -85dB (RL = 50Ω, f = 1MHz)
• Extended Industrial Temperature Range:
-40℃ to +85℃
• Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
• Wide analog input voltage range from-5 V to +5 V
• Low ON resistance:
80Ω(typical) at VCC-VEE = 4.5 V
70Ω(typical) at VCC-VEE = 6.0 V
60Ω(typical) at VCC-VEE = 9.0 V
• Logic level translation: to enable 5 V logic to communicate
with ±5V analog signals
• Typical ‘break before make’ built-in
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Multiple package options
• Specified from-40 ℃ to +85 ℃ and -40 ℃ to +125℃
