8-CH/Dual 4-CH High-Performance CMOS Analog Multiplexers,SGM4588YS16GTR-Replace-ADG1208YRZ.
SGM4588YS16
SGM4588YS16.pdf
SGM4588YS16.pdfFEATURES
• Low On-Resistance: 22Ω
• Low Charge Injection: 15pC
• Fast Transition Time: 160ns
• Single Supply Capability
• 40V Supply Max Rating
• 1.8V Control Logic
• Reduced Switching Errors
• Reduced Glitching
• Improved Data Throughput
• Reduced Power Consumption
• Increased Ruggedness
• Wide Supply Ranges: ±4.5V to ±20V
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16 and TSSOP-16
Packages

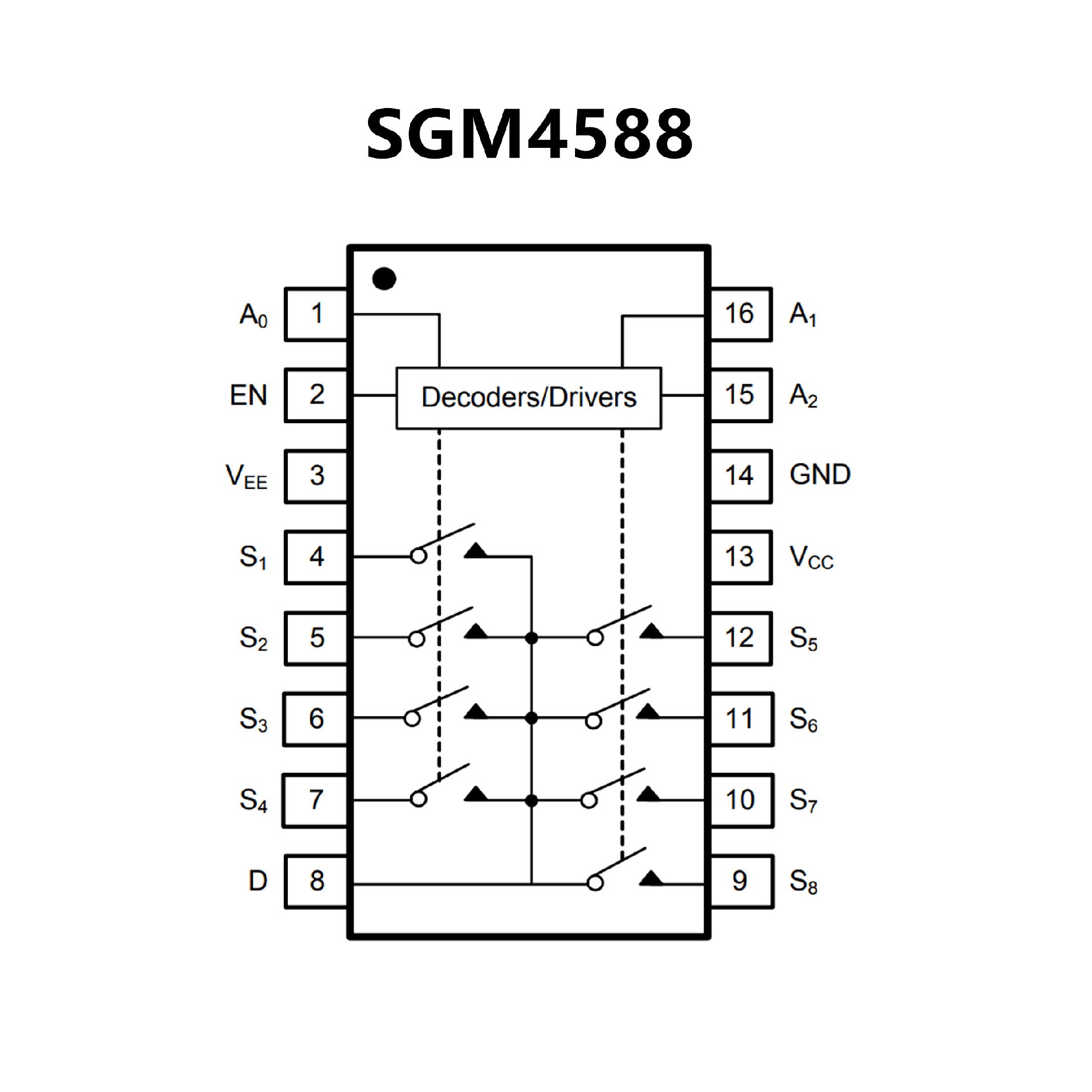

PIN CONFIGUTION
优势替代
FEATURES
• <1 pC charge injection over full signal range
• 1 pF off capacitance
• 33 V supply range
• 120 Ω on resistance
• Fully specified at ±15 V/+12 V
• 3 V logic compatible inputs
• Rail-to-rail operation
• Break-before-make switching action
• Available in a 16-lead TSSOP, a 16-lead LFCSP, and a
• 16-lead SOIC
• Typical power consumption < 0.03 µW

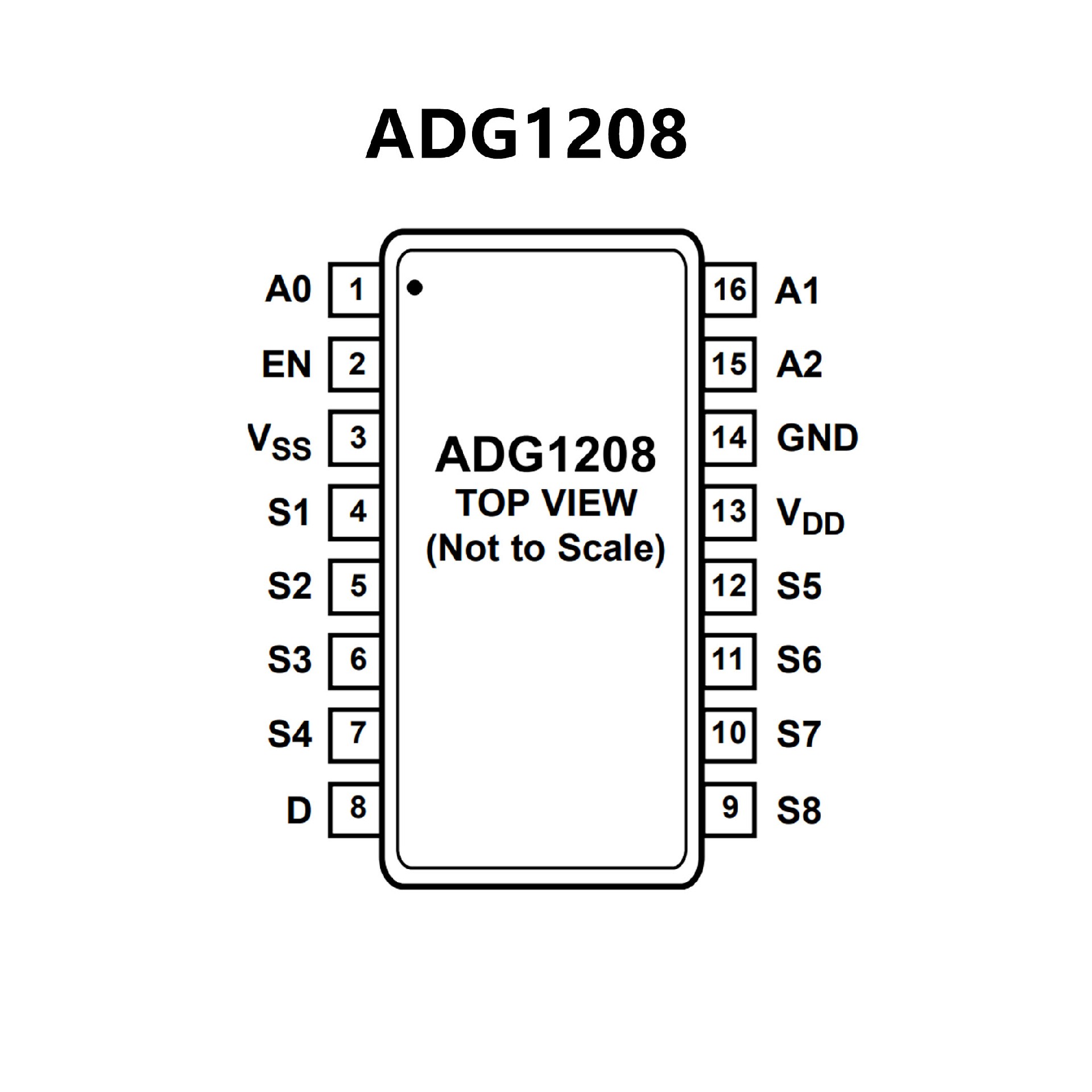

PIN CONFIGUTION
