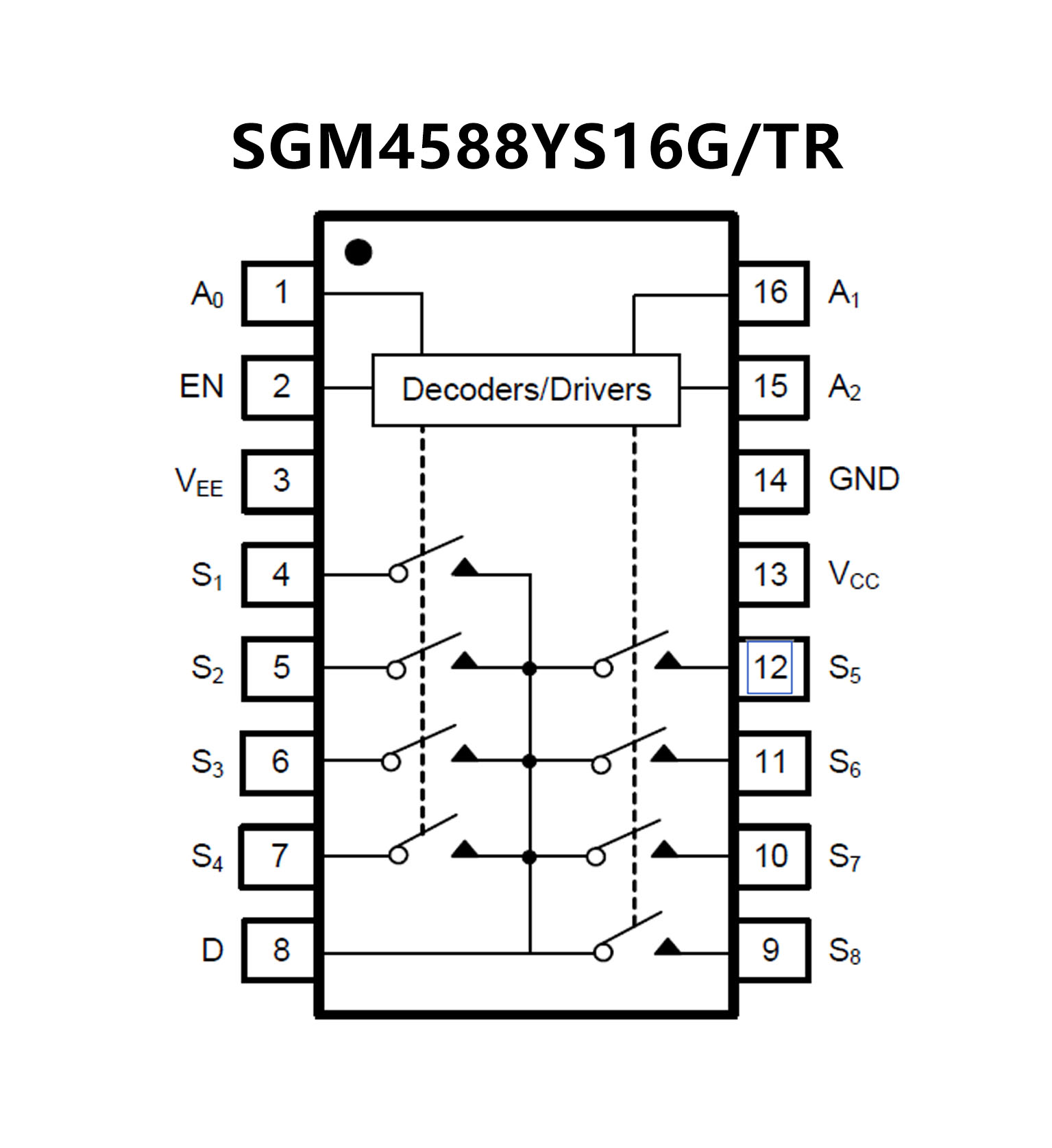

SGM4588YS16GTR.pdf• Low On-Resistance: 22Ω
• Low Charge Injection: 15pC
• Fast Transition Time: 160ns
• Single Supply Capability
• 40V Supply Max Rating
• 1.8V Control Logic
• Reduced Switching Errors
• Reduced Glitching
• Improved Data Throughput
• Reduced Power Consumption
• Increased Ruggedness
• Wide Supply Ranges: ±4.5V to ±20V
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16 and TSSOP-16
Packages
• 44 V supply maximum rating
• VSS to VDD analog signal range
• Single-/dual-supply specifications
• Wide supply range: 10.8 V to 16.5 V
• Extended plastic temperature range: −40°C to +85°C
• Low power dissipation: 28 mW maximum
• Low leakage: 20 pA typical
• Available in 16-lead DIP/SOIC and 20-lead PLCC/LCC
• packages

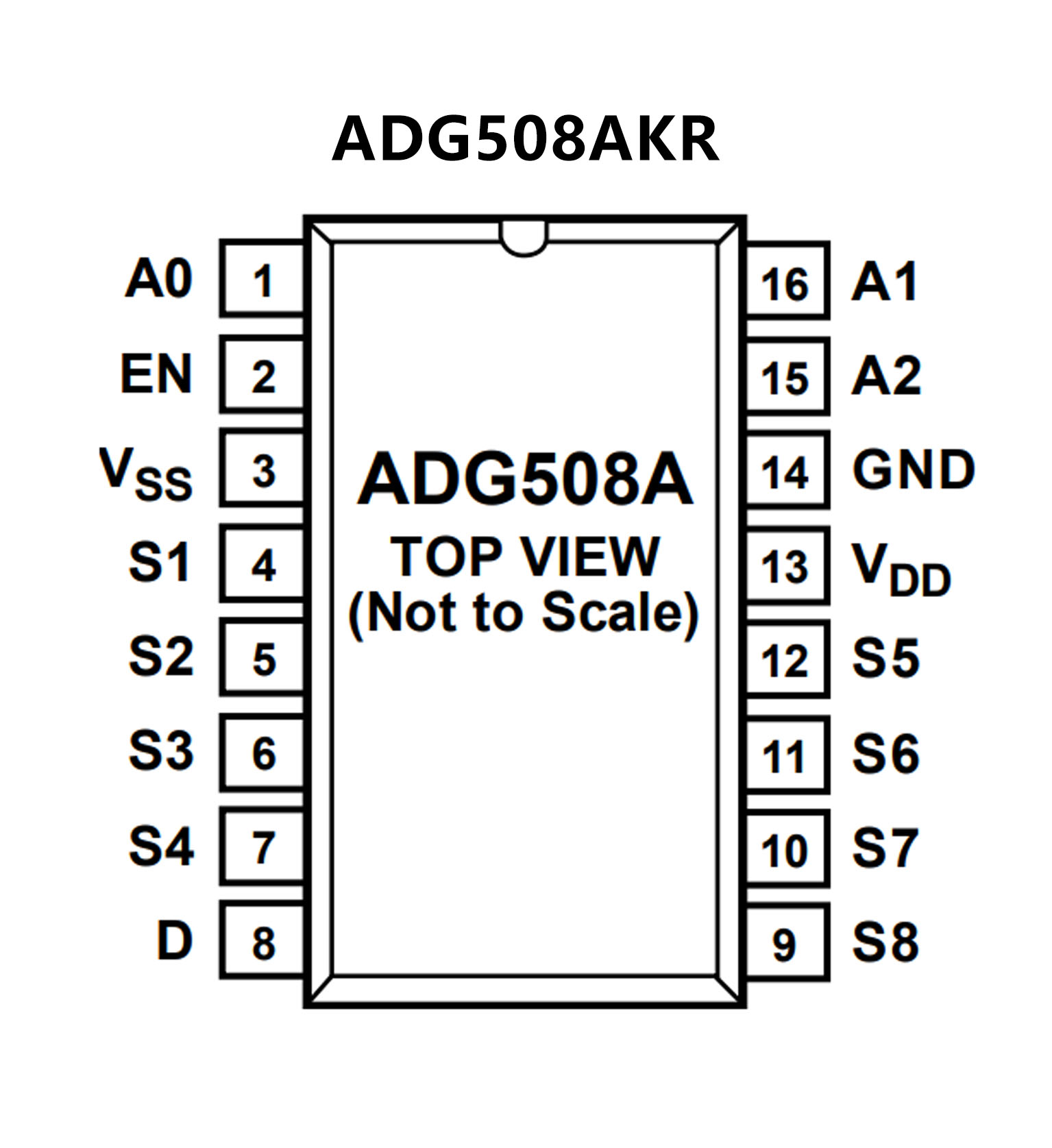

• Superior alternative to
DG508A, HI-508
DG509A, HI-509
