Low Supply voltage,12bit Digital Temperature Sensor,SGM458CTG/TR Replace TMP103CYFF.
SGM458CTG/TR
SGM458CTG/TR.pdf
SGM458CTG/TR.pdfFEATURES
• 1.6V to 5.5V Supply Voltage Range
• Two-Wire Interface Supports 1.8V, 2.8V, 3.3V and 5.0V Logic
• Temperature Accuracy:
55℃ to +125℃: ±1℃ (TYP)
• Resolution: 12 Bits or 8 Bits
• Support Multiple Devices in One Serial Bus
• Serial Control Bus is Compatible with I2C and SMBus Interface
• Low Quiescent Current (IQ): 2.9μA at 0.25Hz
• Shutdown Mode Current: 0.7μA (TYP)
• Available in a Green WLCSP-0.85×0.85-4B Package

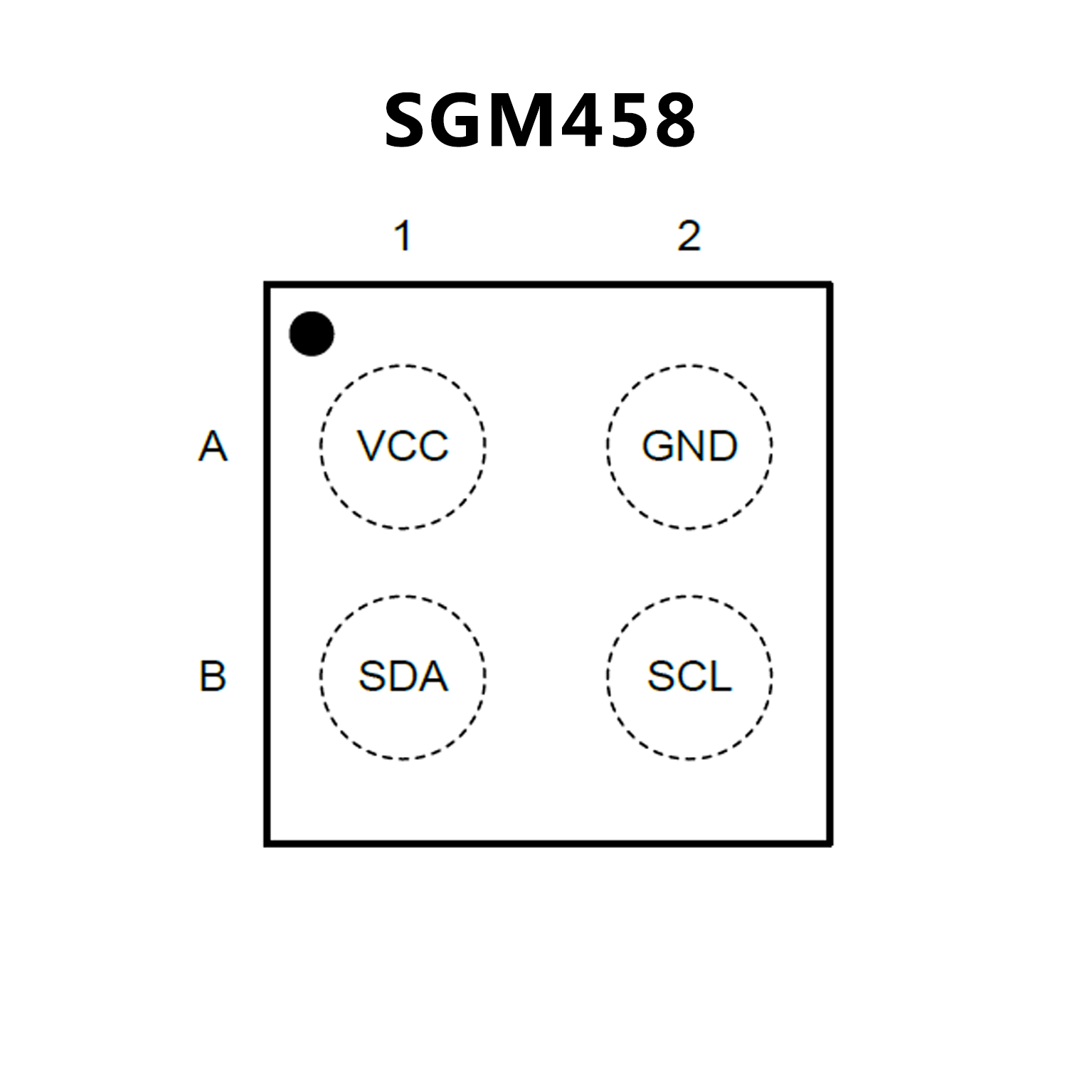

PIN CONFIGUTION
优势替代
FEATURES
• Multiple Device Access (MDA):
Global Read/Write Operations
• I2C™ and SMBus™-Compatible Interface
• Resolution: 8 Bits
• Accuracy: ±1°C Typical (–10°C to 100°C)
• Low Quiescent Current:
– 3-μA Active IQ at 0.25 Hz
– 1-μA Shutdown
• Supply Range: 1.4 V to 3.6 V
• Digital Output
• 4-Ball WCSP (DSBGA) Package

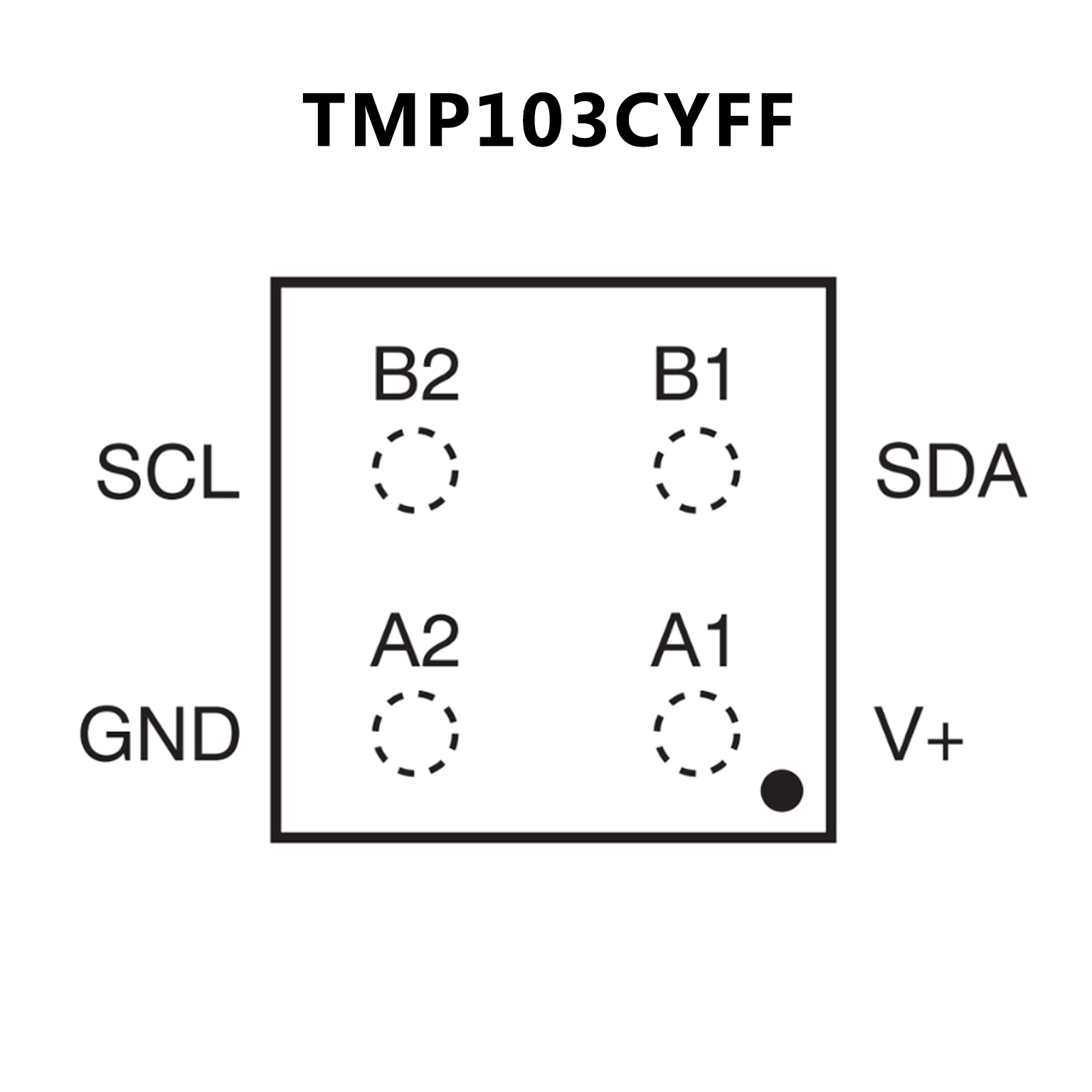

PIN CONFIGUTION
