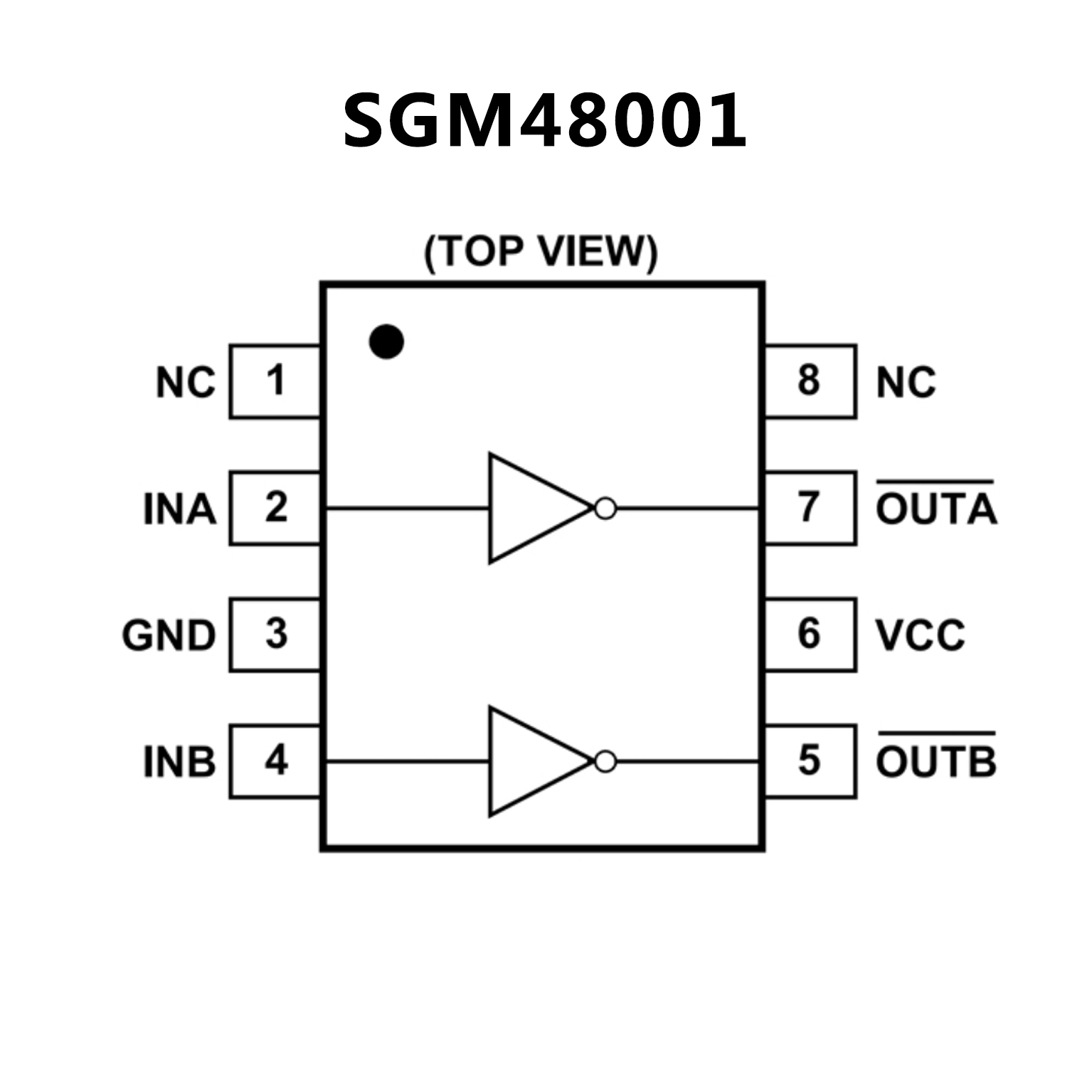

SGM48001.pdf• Improved Response Times
• Matched Rise and Fall Times
• Reduced Clock Skew between Dual Channels
• Low Output Impedance
• Output is at LOW under UVLO Protection
• High Noise Immunity
• Improved Clocking Rate
• Low Supply Current
• Wide Operating Voltage Range
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and TDFN-2×2-8L
Packages
• High Peak Output Current:1.5A
• Wide Operating Range: 4.5V to 18V
• High Capacitive Load
Drive Capability: 1000 pF in 25 nsec
• Short Delay Time: <40nsec Typ
• Consistent Delay Times With Changes in
Supply Voltage
• Low Supply Current
With Logic “1” Input : 4mA
With Logic “0” Input : 400µA
• Low Output Impedance: 7Ω
• Latch-Up Protected: Will Withstand >0.5A
Reverse Current: Down to – 5V
• Input Will Withstand Negative Inputs
• ESD Protected: 4kV

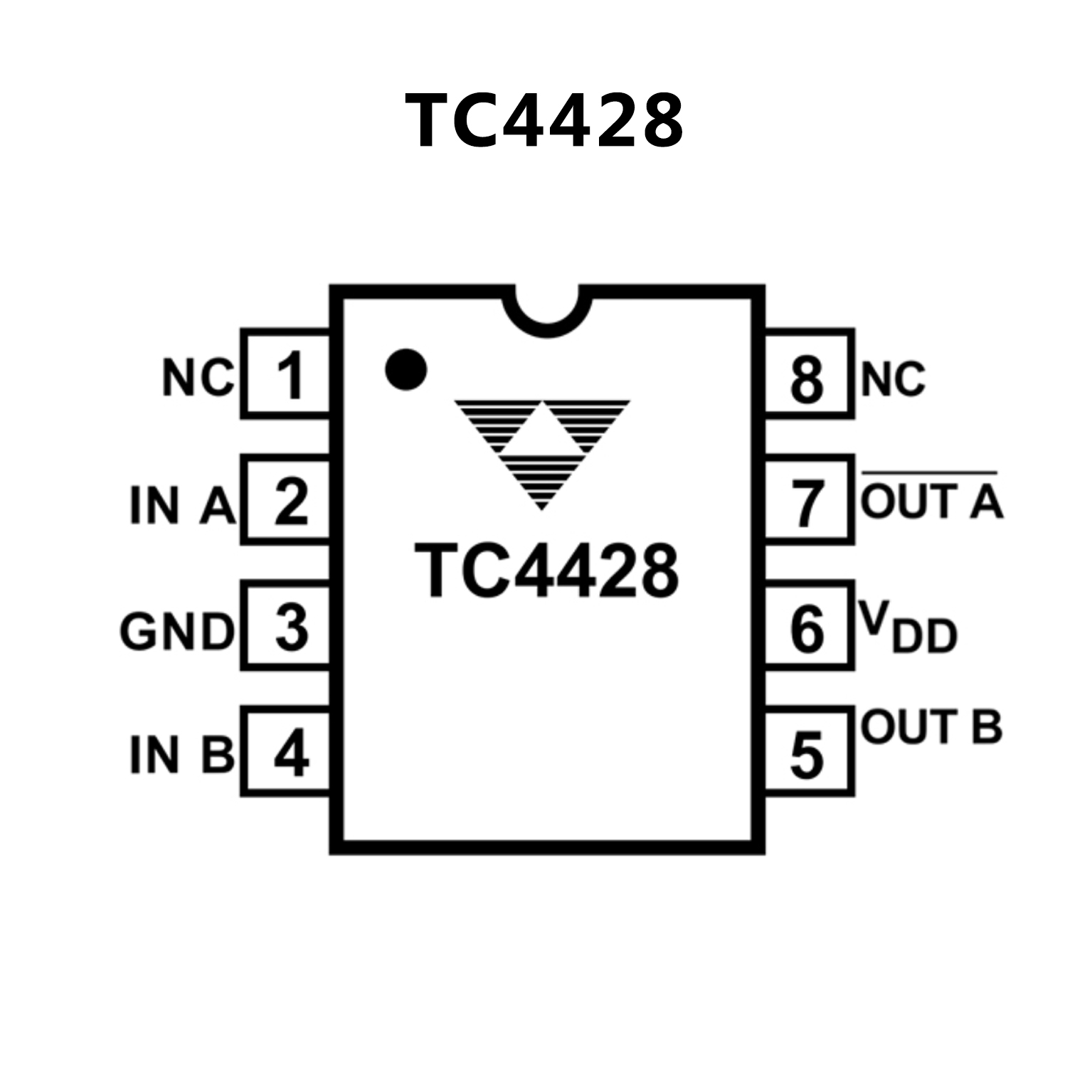

• Pinout Same as TC426/TC427/TC428
