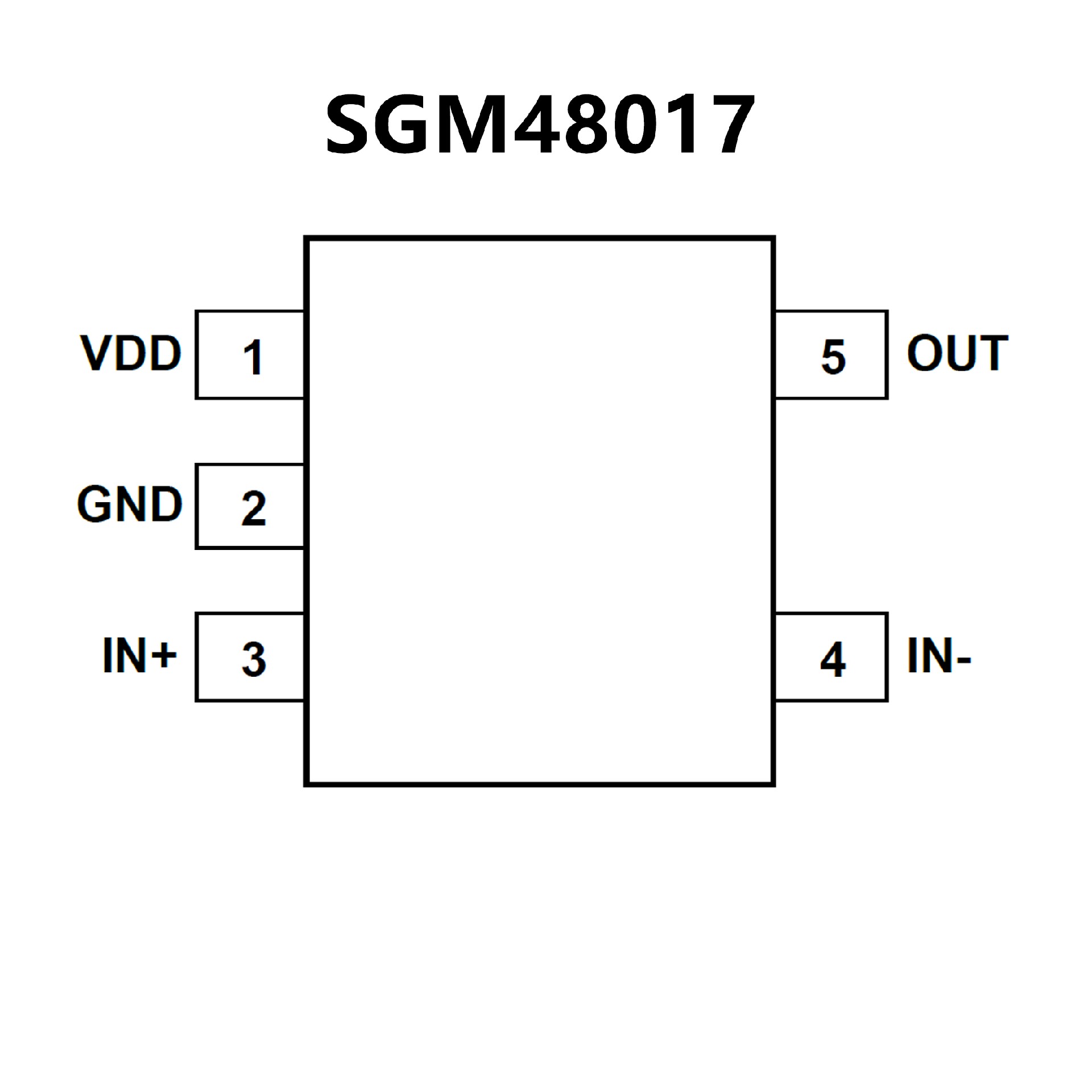

SGM48017.pdf• Simple and Reliable
• 8A Source and 13A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 20V
• Fast Propagation Delay: 30ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 8ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pin:
-10V when (VDD - VINx) ≤ 22V
• Negative Voltage Capability on EN Pin:
-10V when (VDD - VEN) ≤ 22V
• Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package
• Low-Cost, Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
• 4-A Peak Source and 4-A Peak Sink Symmetrical Drive
• Fast Propagation Delays (13-ns typical)
• Fast Rise and Fall Times (9-ns and 7-ns typical)
• 4.5-V to 18-V Single Supply Range
• Outputs Held Low During VDD UVLO (ensures glitch free
operation at power-up and powerdown)
• TTL and CMOS Compatible Input Logic Threshold
(independent of supply voltage)
• Hysteretic Logic Thresholds for High Noise Immunity
• Dual Input Design (choice of an inverting (INpin) or
non-inverting (IN+ pin) driver configuration)
Unused Input Pin can be Used for Enable or Disable Function
