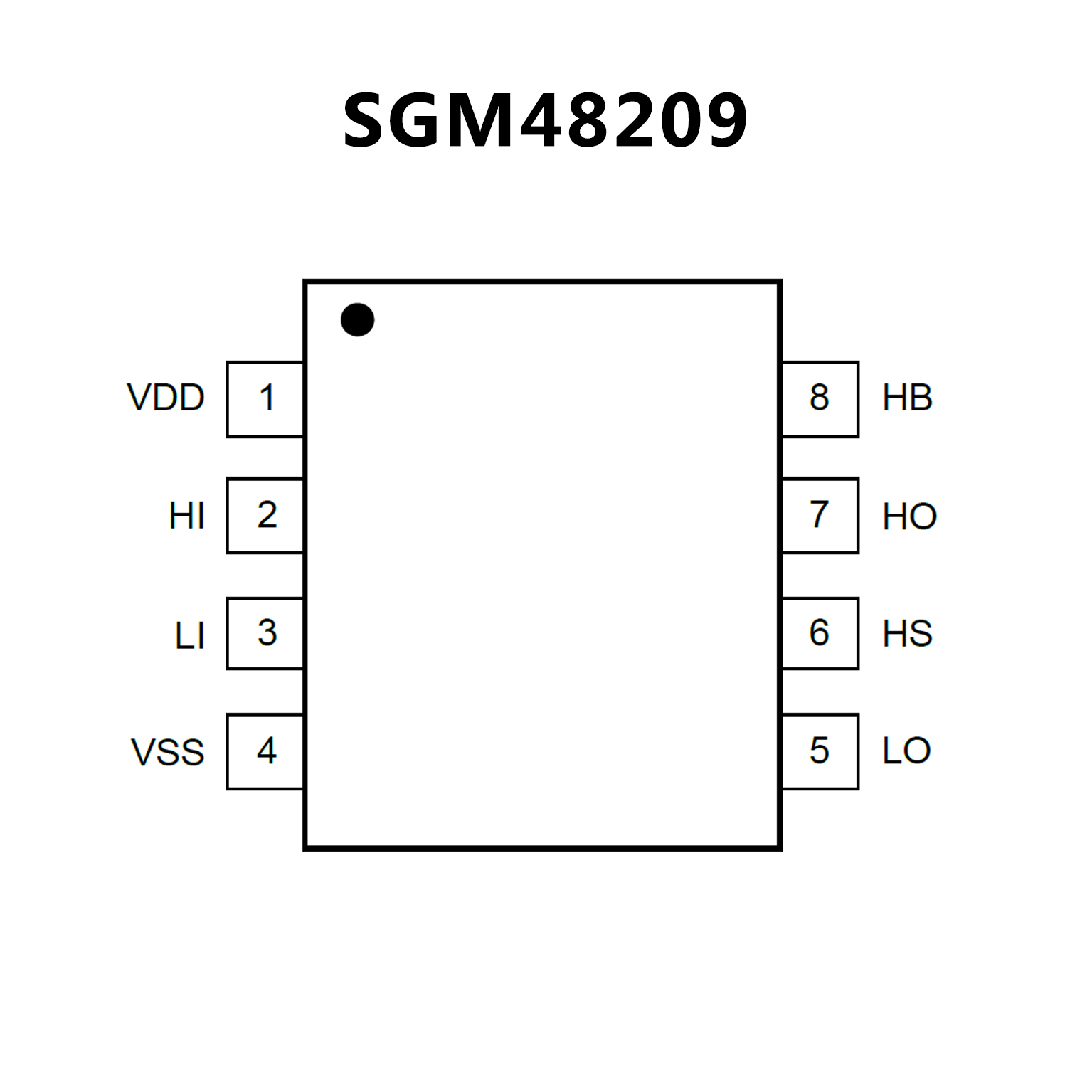

SGM48209.pdf• Wide Operating Range: 8V to 17V
• Drive Two N-MOSFETs Configured in Half Bridge
• Maximum Blocking Voltage: 120V DC
• Integrated Internal Bootstrap Diode for Cost Saving
• 4A Peak Sink and Source Currents
• -10V to 20V Tolerance of Input Pins
• COMS/TTL Compatible Inputs
• 6.5ns (TYP) Rise Time and 4.5ns (TYP) Fall Time with 1000pF Load
• Propagation Delay Time: 31ns (TYP)
• Delay Matching: 3ns (TYP)
• UVLO Functions for Both High-side and Low-side Drivers
• -40℃ to +140℃ Operating Junction Temperature Range
• Available in a Green SOIC-8 Package

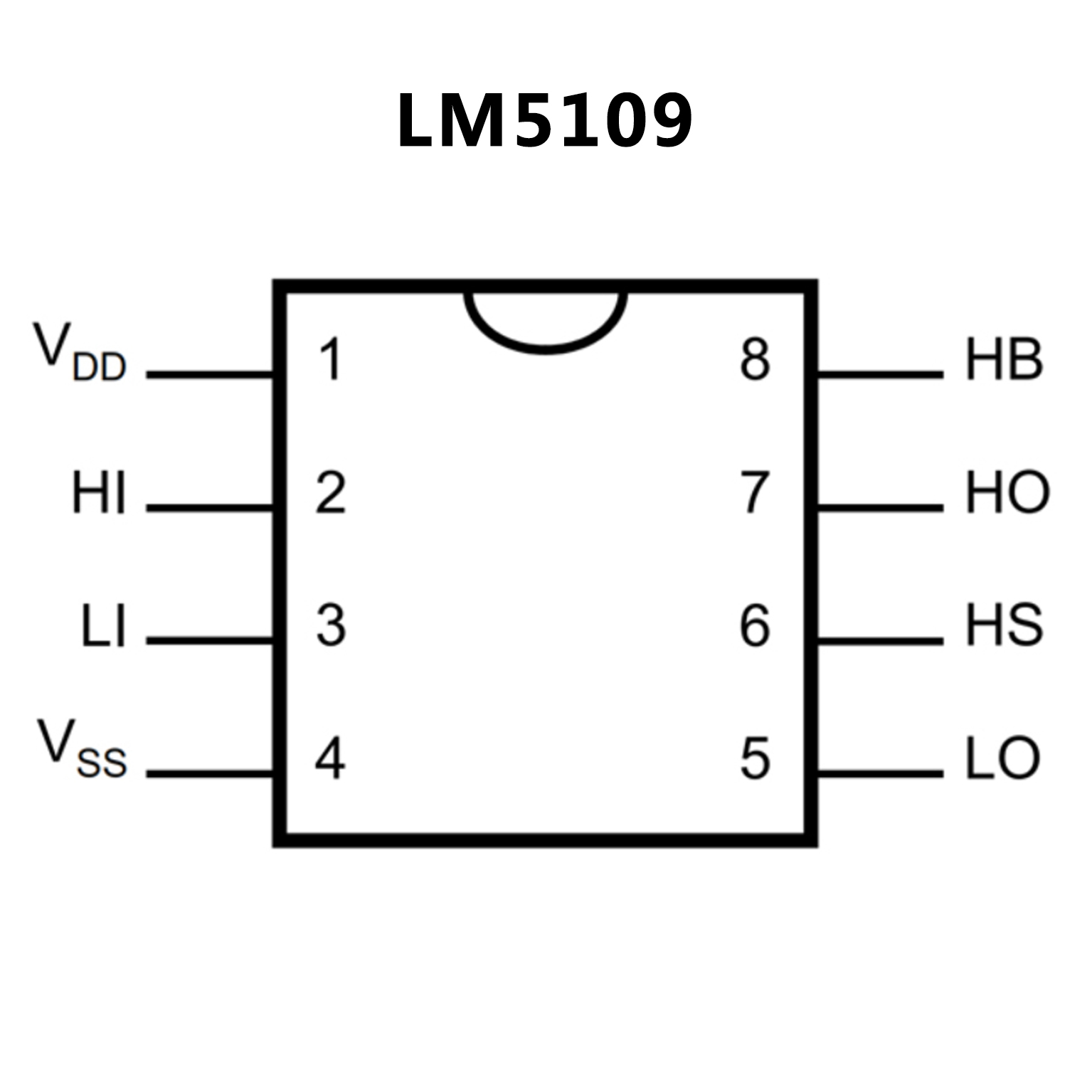

• Drives Both a High-Side and Low-Side N-Channel
MOSFET
• 1A peak Output Current (1.0A Sink / 1.0A Source)
• Independent TTL Compatible Inputs
• Bootstrap Supply Voltage to 108V DC
• Fast Propagation Times (30 ns Typical)
• Drives 1000 pF Load with 15ns Rise and Fall Times
• Excellent Propagation Delay Matching (2 ns Typical)
• Supply Rail Under-Voltage Lockout
• Low Power Consumption
• Pin Compatible with ISL6700
• Industry Standard SOIC-8 and Thermally Enhanced
WSON-8 Package
