7A, 5A Low-Side GaN Driver With 60MHz, 1ns Speed, SGM48520 Replace LMG1020.
SGM48520
SGM48520.pdf
SGM48520.pdfFEATURES
• 5V Supply Voltage
• 6A Peak Source and 4A Peak Sink Currents
• Ultra-Fast, Low-side Gate Driver for GaN and
Si FETs
• Minimum Input Pulse Width: 1ns
• Up to 60MHz Operation
• Propagation Delay: 2ns (TYP)
• Rise Time: 570ps (TYP)
• Fall Time: 610ps (TYP)
• Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)
• Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6AL Packages

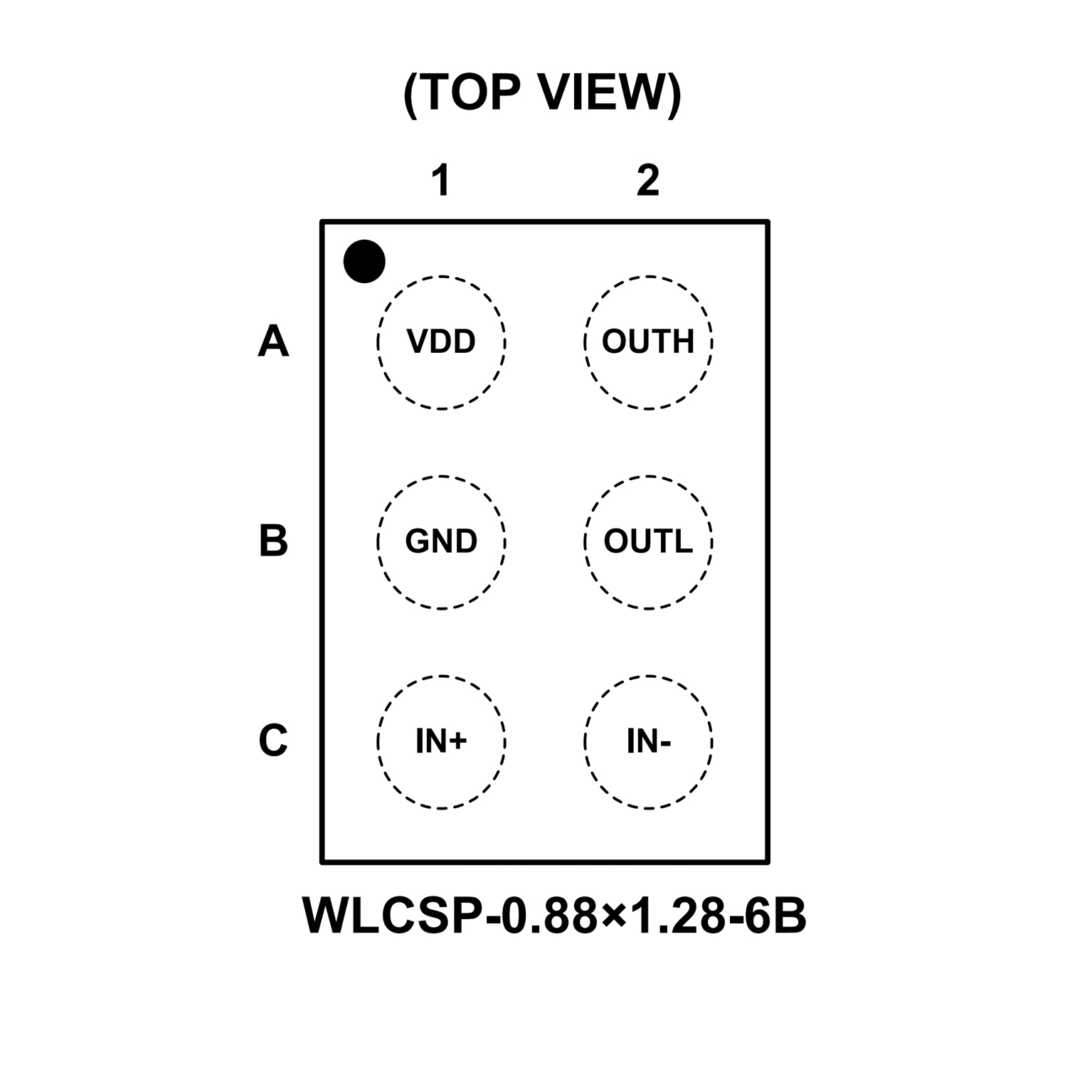

PIN CONFIGUTION
优势替代
FEATURES
• Low-Side, Ultra-Fast Gate Driver for GaN and Silicon FETs
• 1 ns Minimum Pulse
• Up to 60 MHz Operation
• 2.5 ns Typical, 4.5 ns Maximum Propagation Delay
• 400 ps Typical Rise and Fall Time
• 7-A Peak Source and 5-A Peak Sink Currents
• UVLO and Overtemperature Protection
• 0.8 mm × 1.2 mm WCSP Package

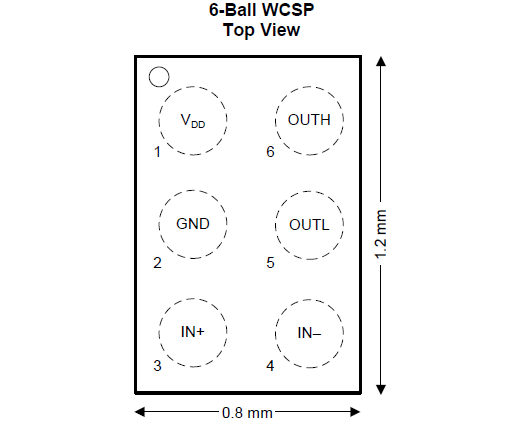

PIN CONFIGUTION
