SGM48520.pdf• 5V Supply Voltage
• 6A Peak Source and 4A Peak Sink Currents
• Ultra-Fast, Low-side Gate Driver for GaN and
Si FETs
• Minimum Input Pulse Width: 1ns
• Up to 60MHz Operation
• Propagation Delay: 2ns (TYP)
• Rise Time: 570ps (TYP)
• Fall Time: 610ps (TYP)
• Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)

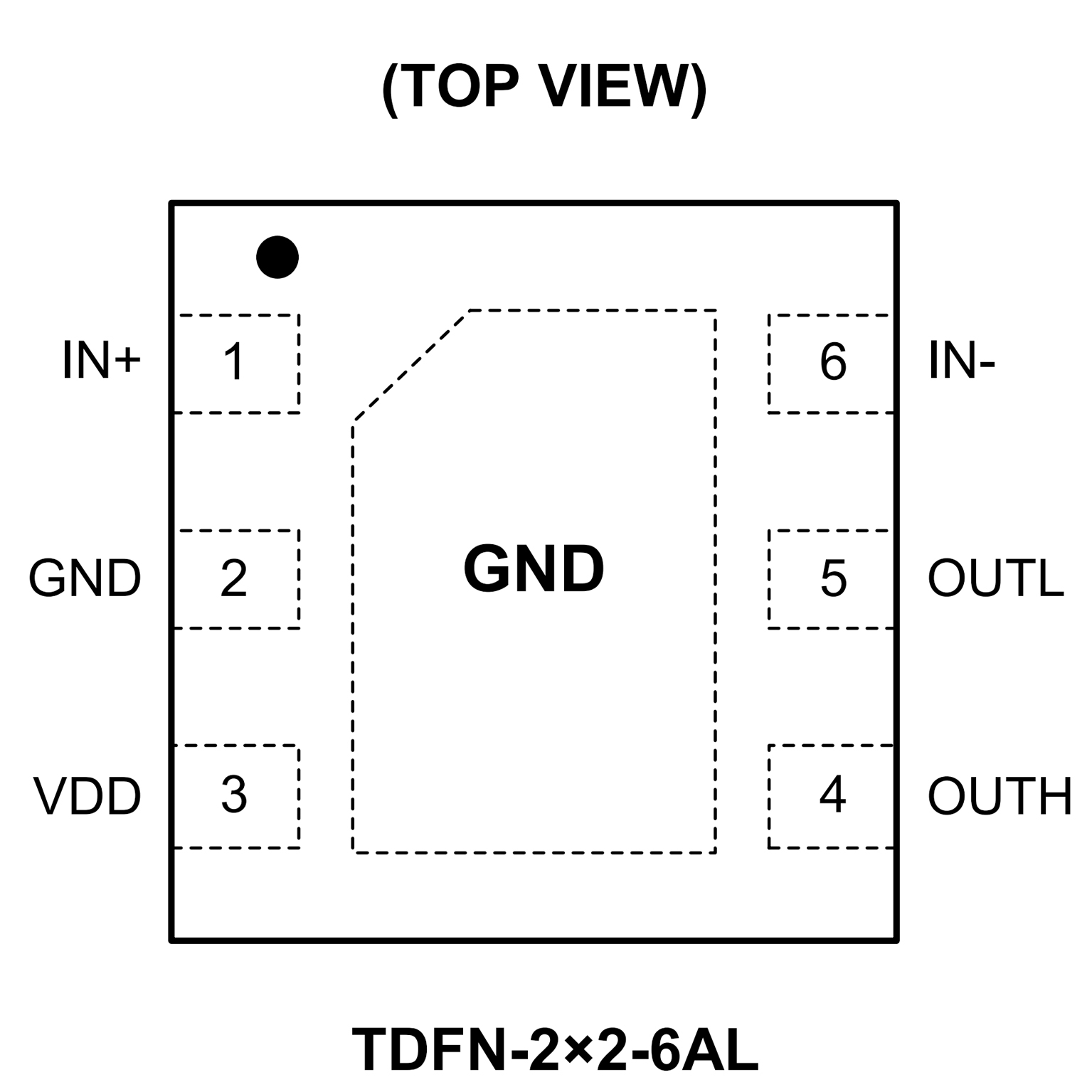

• Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6AL Packages
• AEC-Q100 grade 1 qualified
• 1.25-ns typical minimum input pulse width
• 2.6-ns typical rising propagation delay
• 2.9-ns typical falling propagation delay
• 300-ps typical pulse distortion
• Independent 7-A pull-up and 5-A pull-down current
• 650-ps typical rise time (220-pF load)
• 850-ps typical fall time (220-pF load)

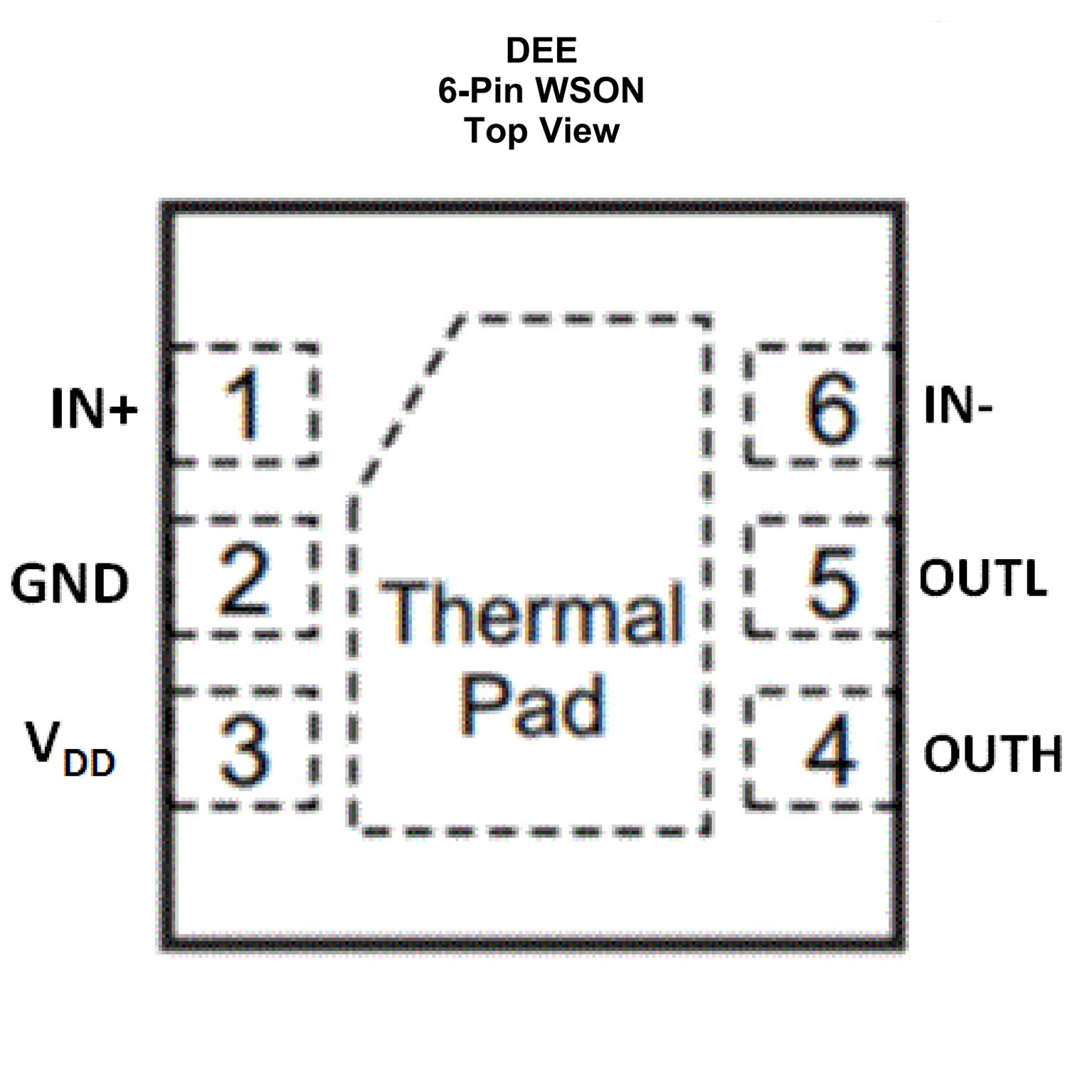

• 2-mm x 2-mm QFN package
• Inverting and non-inverting inputs
• UVLO and over-temperature protection
• Single 5-V supply voltage
