Dual 5A,High-Speed,Low-Side Gate Drivers with Negative Input Voltage Capability,SGM48523 Replace UCC27423.
SGM48523XS8G SGM48523XS8G.pdf
FEATURES

• Two Independent Gate Drive Channels

• 4.5V to 18V Single Supply Range (VDD)

• 5A Peak Source/Sink Pulse Current Drive

• Independent Enable Pin for Each Channel

• TTL and CMOS Compatible Logic Threshold

• Logic Levels Independent of Supply Voltage

• Hysteretic Input Logic for High Noise Immunity

• Outputs are Logic Low when Inputs are Floating

• Negative Voltage Handling Capability:

  -8V DC at Inputs

  -2V, 200ns Pulse for Outputs (OUTx)

• Glitch-Free Operation at Power-Up and Power-

  Down: Outputs Pulled Low during Supply UVLO

• Fast Propagation Delays: 18ns (TYP)

• Fast Rise Time: 8ns (TYP)

• Fast Fall Time: 8ns (TYP)

• Delay Matching between Two Channels: 1ns (TYP)

• Channels can be Paralleled for Higher Drive Current

• -40℃ to +140℃ Operating Temperature Range

• Packaging:

  SGM48523/4A/5 Available in Green SOIC-8,

  MSOP-8 (Exposed Pad) and TDFN-3×3-8L

  Packages

• SGM48526 Available in a Green TDFN-3×3-8L

  Package

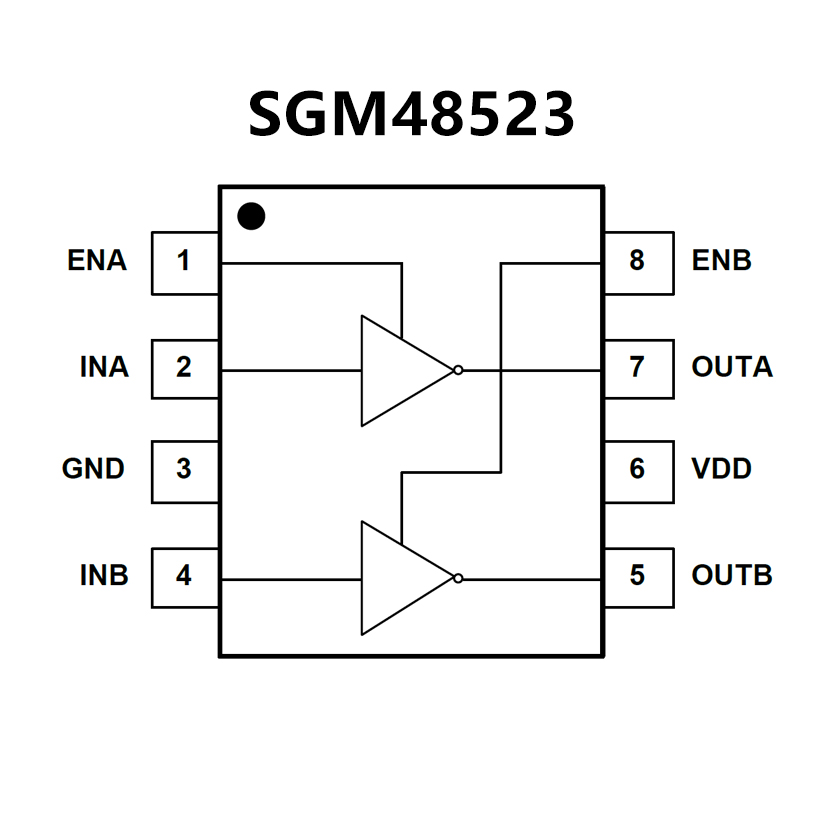

PIN CONFIGUTION
优势替代
UCC27423DR UCC27423DR.pdf

No.13099

FEATURES

• Industry-Standard Pin-Out

• Enable Functions for Each Driver

• High Current Drive Capability of ±4 A

• Unique BiPolar and CMOS True Drive

  Output Stage Provides High Current at

  MOSFET Miller Thresholds

• TTL/CMOS Compatible Inputs

  Independent of Supply Voltage

• 20-ns Typical Rise and 15-ns Typical

  Fall Times with 1.8-nF Load

• Typical Propagation Delay Times

  of 25 ns with Input Falling and

  35 ns with Input Rising

• 4-V to 15-V Supply Voltage

• Dual Outputs Can Be Paralleled

  for Higher Drive Current

• Available in Thermally Enhanced

  MSOP PowerPAD™ Package

• Rated From –40°C to 125°C

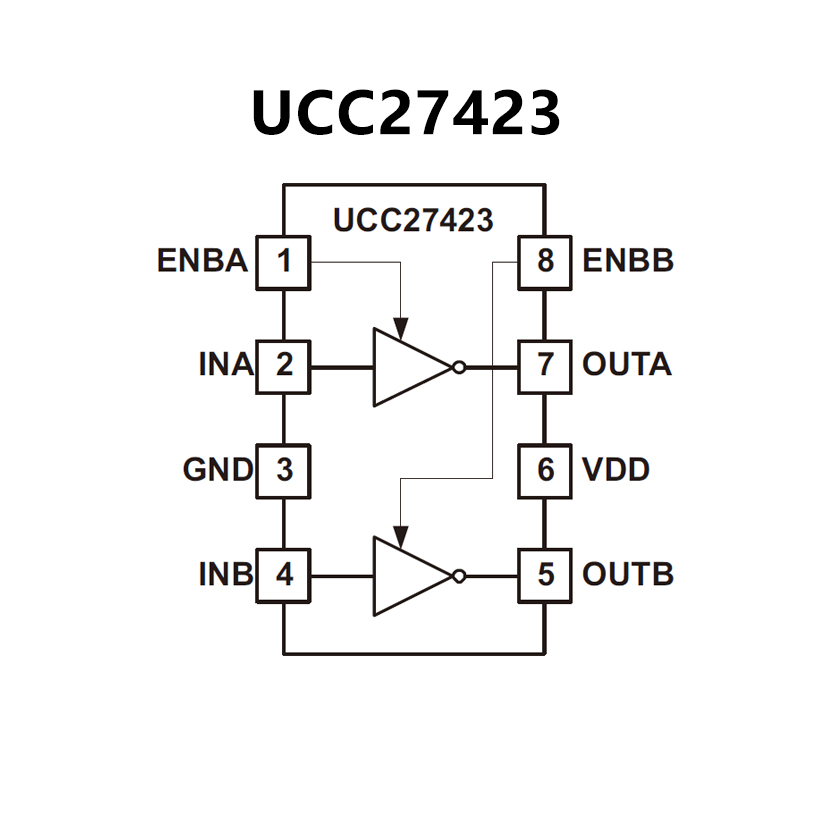

PIN CONFIGUTION
