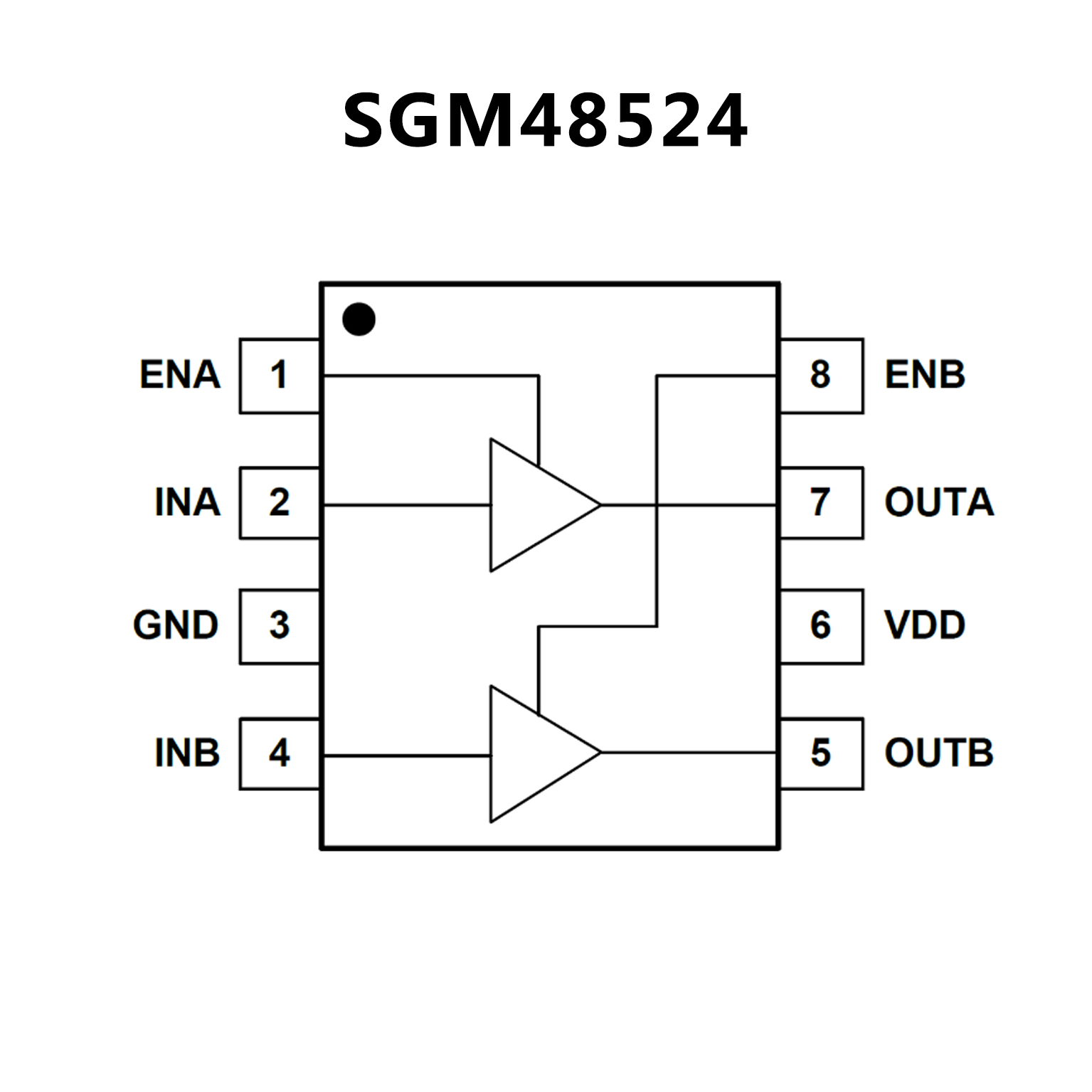

• Two Independent Gate Drive Channels

• 5A Source and 5A Sink Peak Currents

• Wide Supply Voltage Range: 4.5V to 18V

• TTL and CMOS Compatible Logic Threshold

• Logic Levels Independent of Supply Voltage

• Hysteretic Input Logic for High Noise Immunity

• Outputs Held Low When Inputs are Floating

• Fast Propagation Delays: 18ns (TYP)

• Fast Rise Time: 7ns (TYP)

• Fast Fall Time: 7ns (TYP)

• Ringing Suppression

• Negative Voltage Capability on INx Pins:

  -10V when (VDD - VINx) ≤ 20V

• Negative Voltage Capability on ENx Pins:

  -10V when (VDD - VENx) ≤ 20V

• Negative Voltage Capability on OUTx Pin:

  -2V (Pulse < 200ns)

• Comprehensive Protection Features

     Thermal Shutdown Protection

     Under-Voltage Lockout

     Short-Circuit Protection

• -40℃ to +125℃ Operating Temperature Range

• Available in Green SOIC-8, MSOP-8 (Exposed

  Pad) and TDFN-3×3-8L Packages
