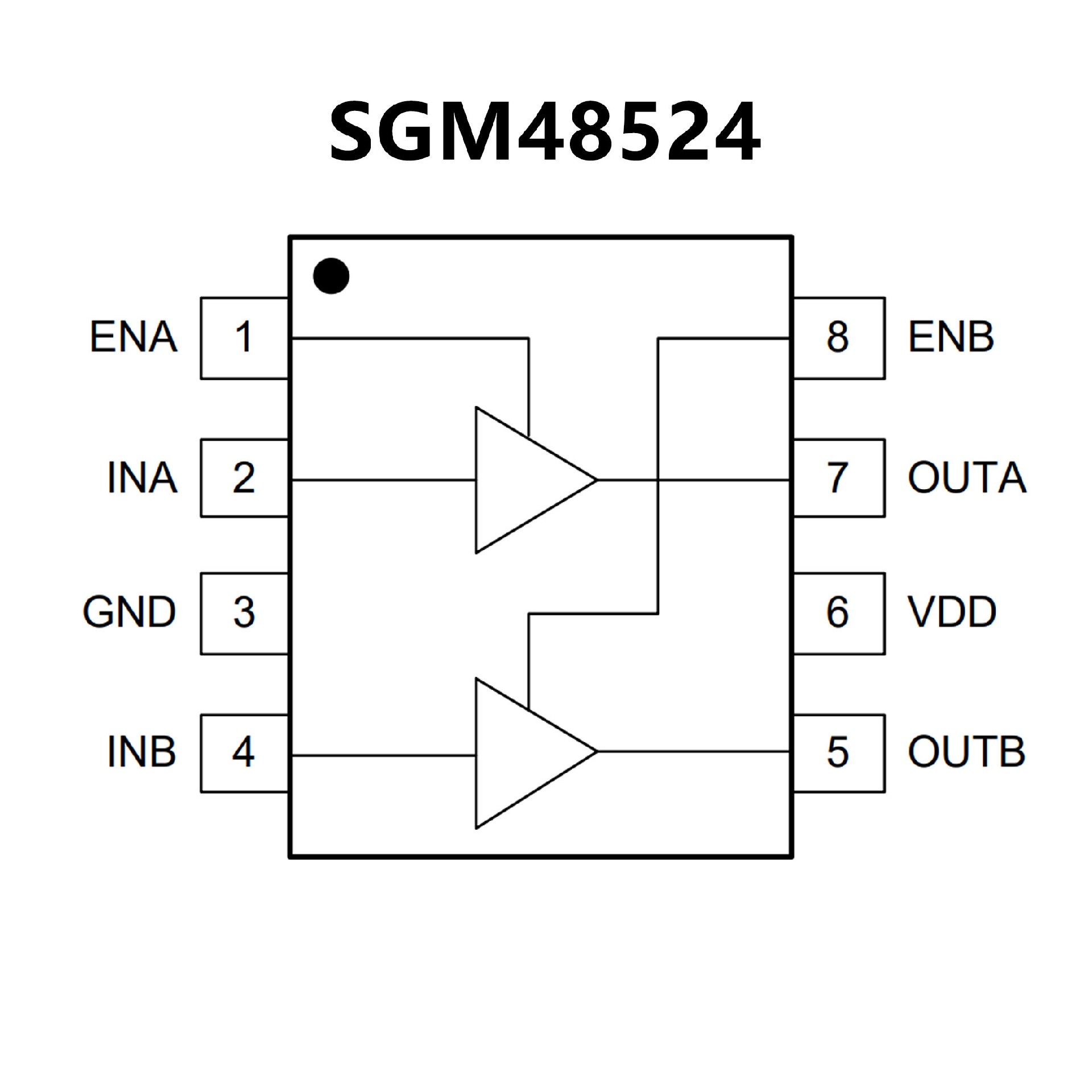

SGM48524.pdf• Two Independent Gate Drive Channels
• 5A Source and 5A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 18V
• TTL and CMOS Compatible Logic Threshold
• Logic Levels Independent of Supply Voltage
• Hysteretic Input Logic for High Noise Immunity
• Outputs Held Low When Inputs are Floating
• Fast Propagation Delays: 18ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 7ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pins:
10V when (VDD - VINx) ≤ 20V
• Negative Voltage Capability on ENx Pins:
10V when (VDD - VENx) ≤ 20V
• Negative Voltage Capability on OUTx Pin:
2V (Pulse < 200ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8, MSOP-8
(ExposedPad) and TDFN-3×3-8L Packages

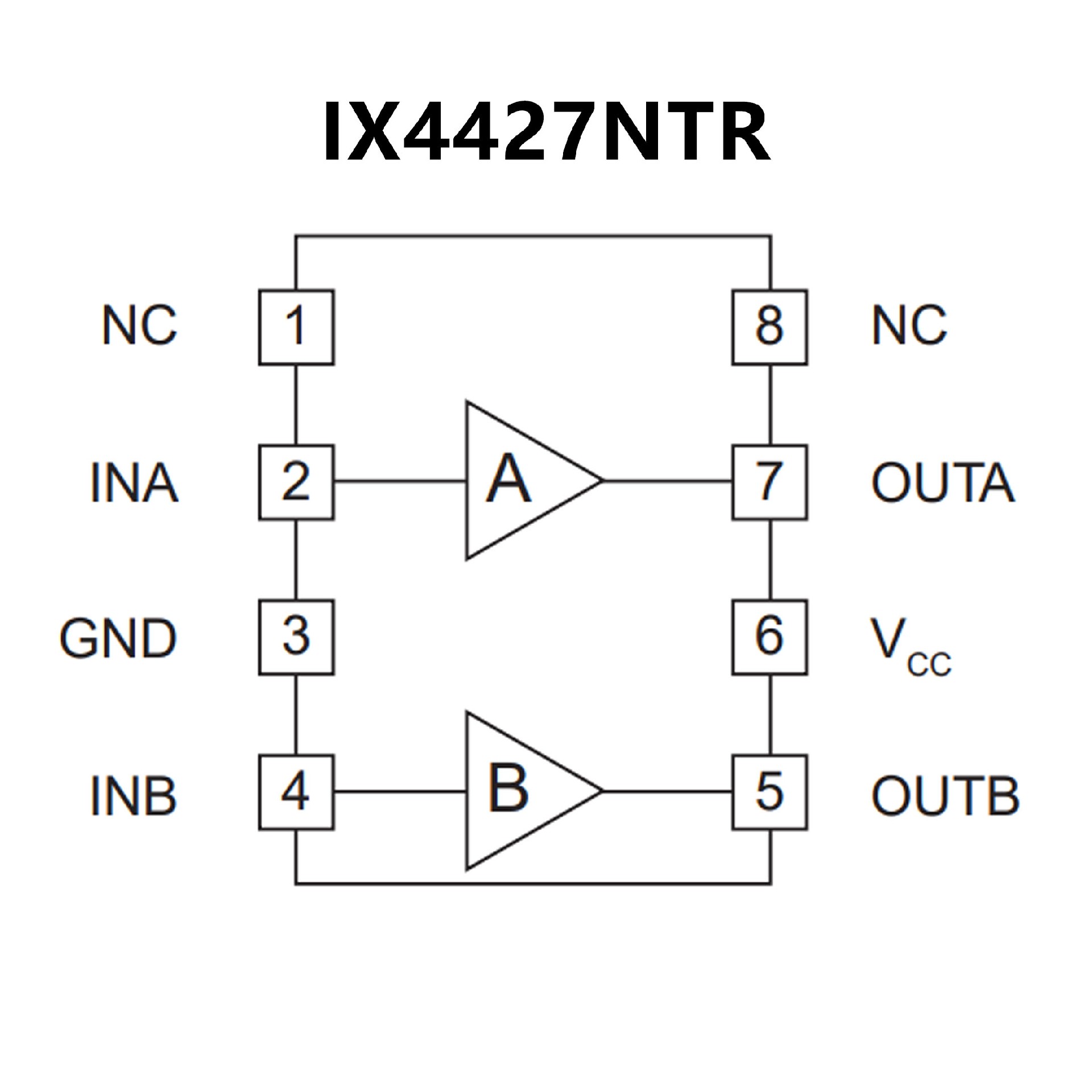

• 1.5A Peak Output Current
• Wide Operating Voltage Range: 4.5V to 35V
• -40°C to +125°C Operating Temperature Range
• Latch-up Protected to 1.5A
• TTL and CMOS Compatible Inputs
• Fast Rise and Fall Times
• Low Power Consumption
