SGM48524.pdf• Two Independent Gate Drive Channels
• 5A Source and 5A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 18V
• TTL and CMOS Compatible Logic Threshold
• Logic Levels Independent of Supply Voltage
• Hysteretic Input Logic for High Noise Immunity
• Outputs Held Low When Inputs are Floating
• Fast Propagation Delays: 18ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 7ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
• Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
• Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range

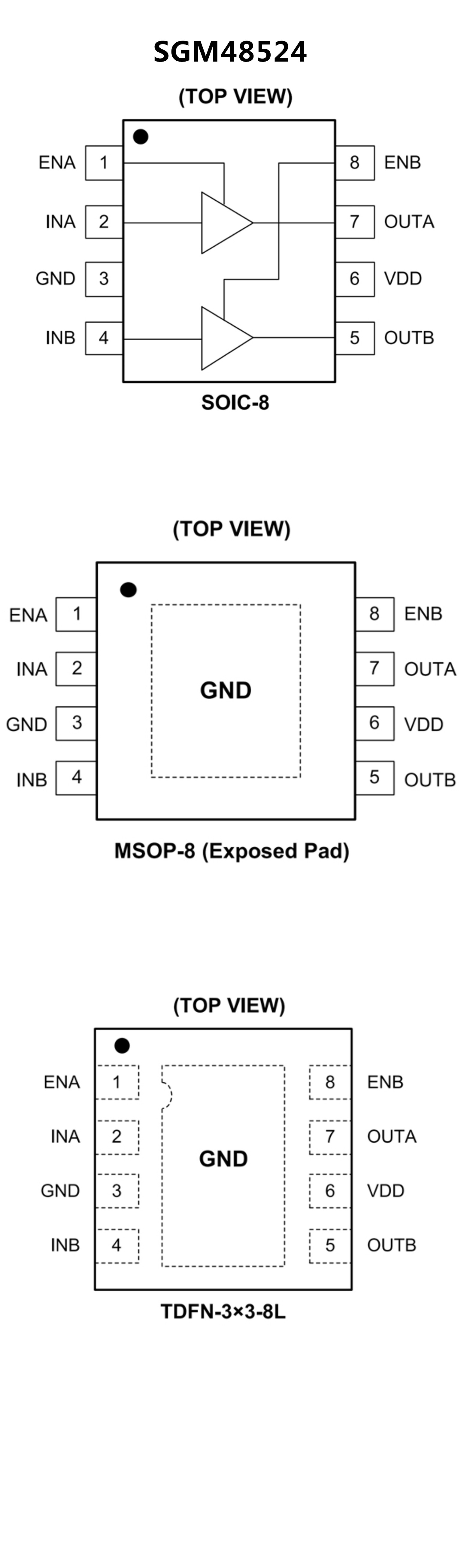

• Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages

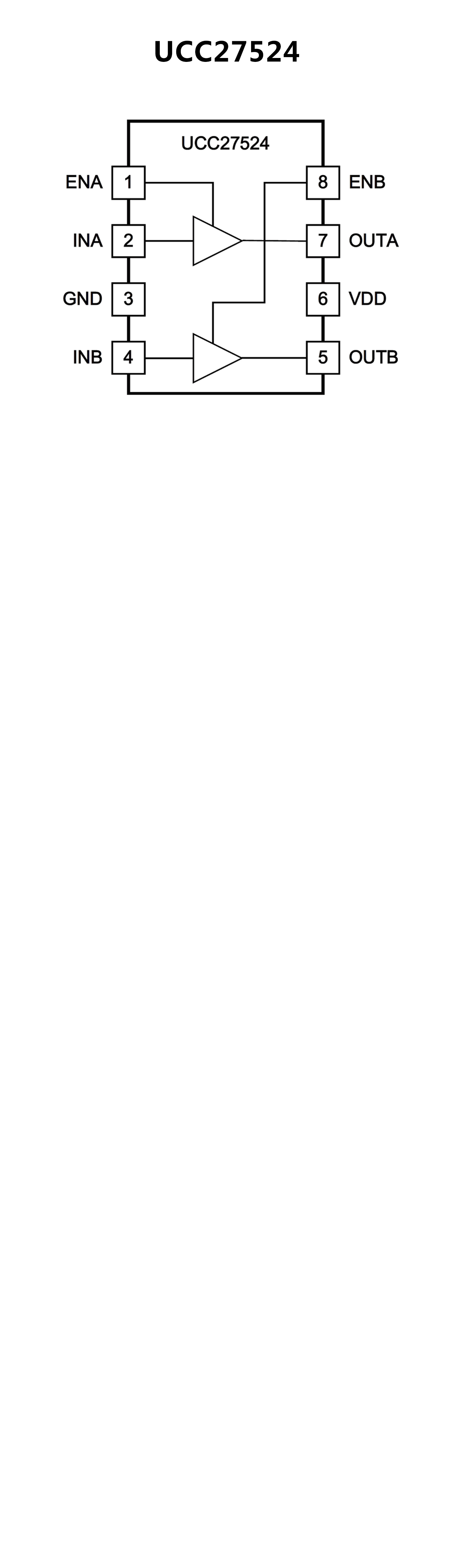

• Industry-Standard Pinout
• Two Independent Gate-Drive Channels
• 5-A Peak Source and Sink-Drive Current
• Independent-Enable Function for Each Output
• TTL and CMOS Compatible Logic Threshold
• Independent of Supply Voltage
• Hysteretic-Logic Thresholds for High Noise Immunity
• Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
• 4.5-V to 18-V Single-Supply Range
• Outputs Held Low During VDD-UVLO, (Ensures
Glitch-Free Operation at Power up and Power Down)
• Fast Propagation Delays (13-ns Typical)
• Fast Rise and Fall Times (7-ns and 6-ns Typical)
• 1-ns Typical Delay Matching Between Two Channels
• Two Outputs are in Parallel for Higher Drive Current
• Outputs Held Low When Inputs Floating
• PDIP (8), SOIC (8), MSOP (8) PowerPAD™ and
• 3-mm × 3-mm WSON-8 Package Options
• Operating Temperature Range of –40°C to 140°C
