Dual 5A, High Speed, Low Side Gate Drivers with Negative Input Voltage Capability, Replace UCC27524.
FEATURES

• Two Independent Gate Drive Channels

• 4.5V to 18V Single Supply Range (VDD)

• 5A Peak Source/Sink Pulse Current Drive

• Independent Enable Pin for Each Channel

• TTL and CMOS Compatible Logic Threshold

• Logic Levels Independent of Supply Voltage

• Hysteretic Input Logic for High Noise Immunity

• Outputs are Logic Low when Inputs are Floating

• Negative Voltage Handling Capability:

  -8V DC at Inputs

  -2V, 200ns Pulse for Outputs (OUTx)

• Glitch-Free Operation at Power-Up and Power-

• Down: Outputs Pulled Low during Supply UVLO

• Fast Propagation Delays: 18ns (TYP)

• Fast Rise Time: 8ns (TYP)

• Fast Fall Time: 8ns (TYP)

• Delay Matching between Two Channels: 1ns (TYP)

• Channels can be Paralleled for Higher Drive Current

  -40℃ to +140℃ Operating Temperature Range

• Packaging:

  SGM48523/4A/5 Available in Green SOIC-8,

  MSOP-8 (Exposed Pad) and TDFN-3×3-8L Packages

  SGM48526 Available in a Green TDFN-3×3-8L Package

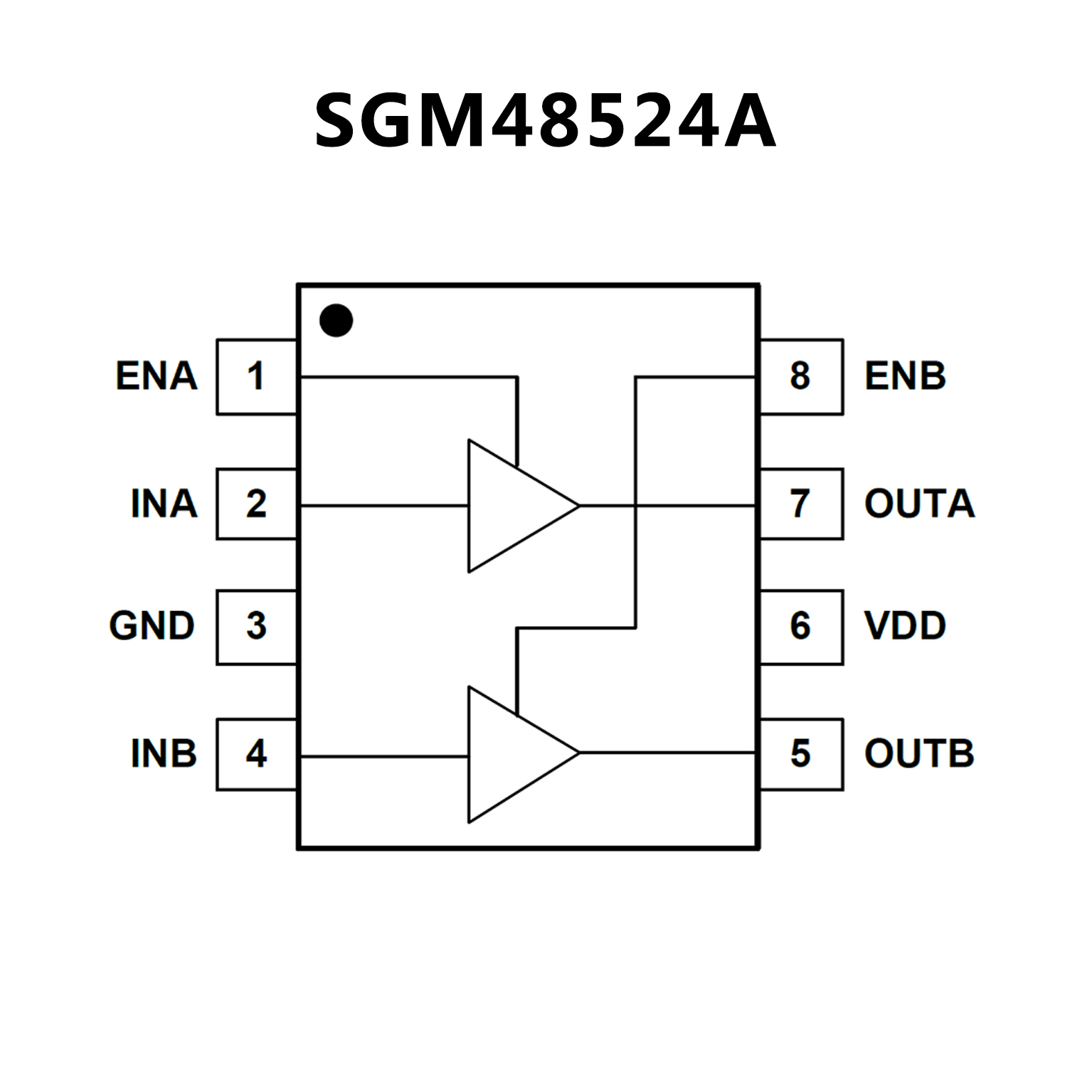

PIN CONFIGUTION
优势替代
UCC27524 UCC27524.pdf

No.13312

FEATURES

• 工业标准引脚分配
• 两个独立的栅极驱动通道
• 5A峰值驱动源电流和灌电流
• 针对每个输出的独立使能功能
 与电源电压无关的TTL和CMOS兼容逻辑阀值针对高抗扰度的滯后逻辑阀值
• 输入和使能引脚电压电平不受VDD引脚偏置电源电压限制
• 4.5V至18V单电源范围
• 在VDD欠压闭锁(UVLO)期间,输出保持低电平,(以确保加电和断电时的无毛刺脉冲运行)
• 快速传播延迟( 典型值13ns)
• 快速上升和下降时间( 典型值7ns和6ns)
• 两通道间典型值为1ns的延迟匹配时间

• 针对更高的驱动电流,两个输出可以并联
• 当输入悬空时输出保持在低电平
• 环氧树脂双列直插式(PDIP)-8,小外形尺寸集成电路(SOIC)-8,表面贴装小外形尺寸(MSOP)-8封装 PowerPADTM和3mm x 3mm超薄型小外形尺寸(WSON)-8封装选项
• -40°C 至+140°C的运行温度范围

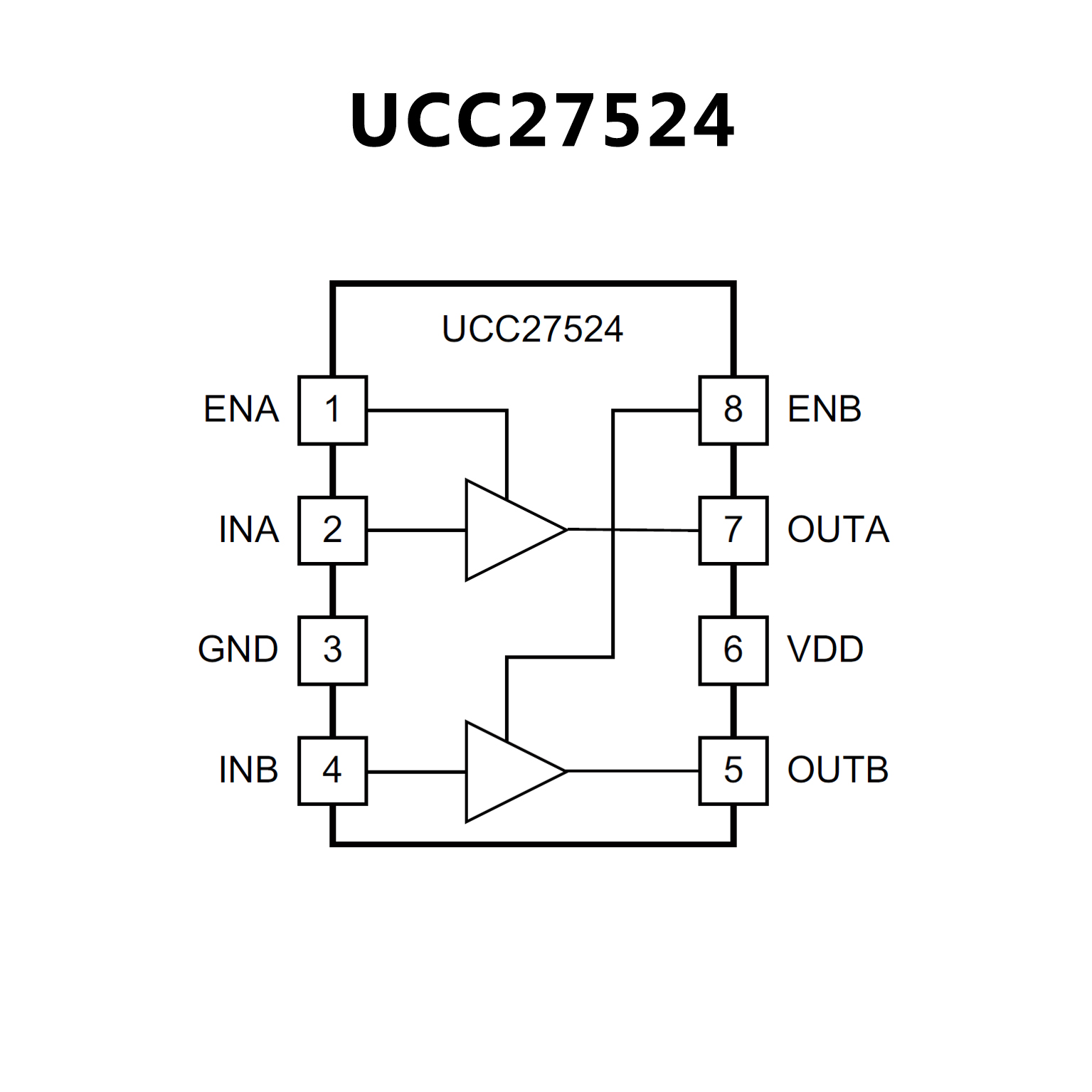

PIN CONFIGUTION
