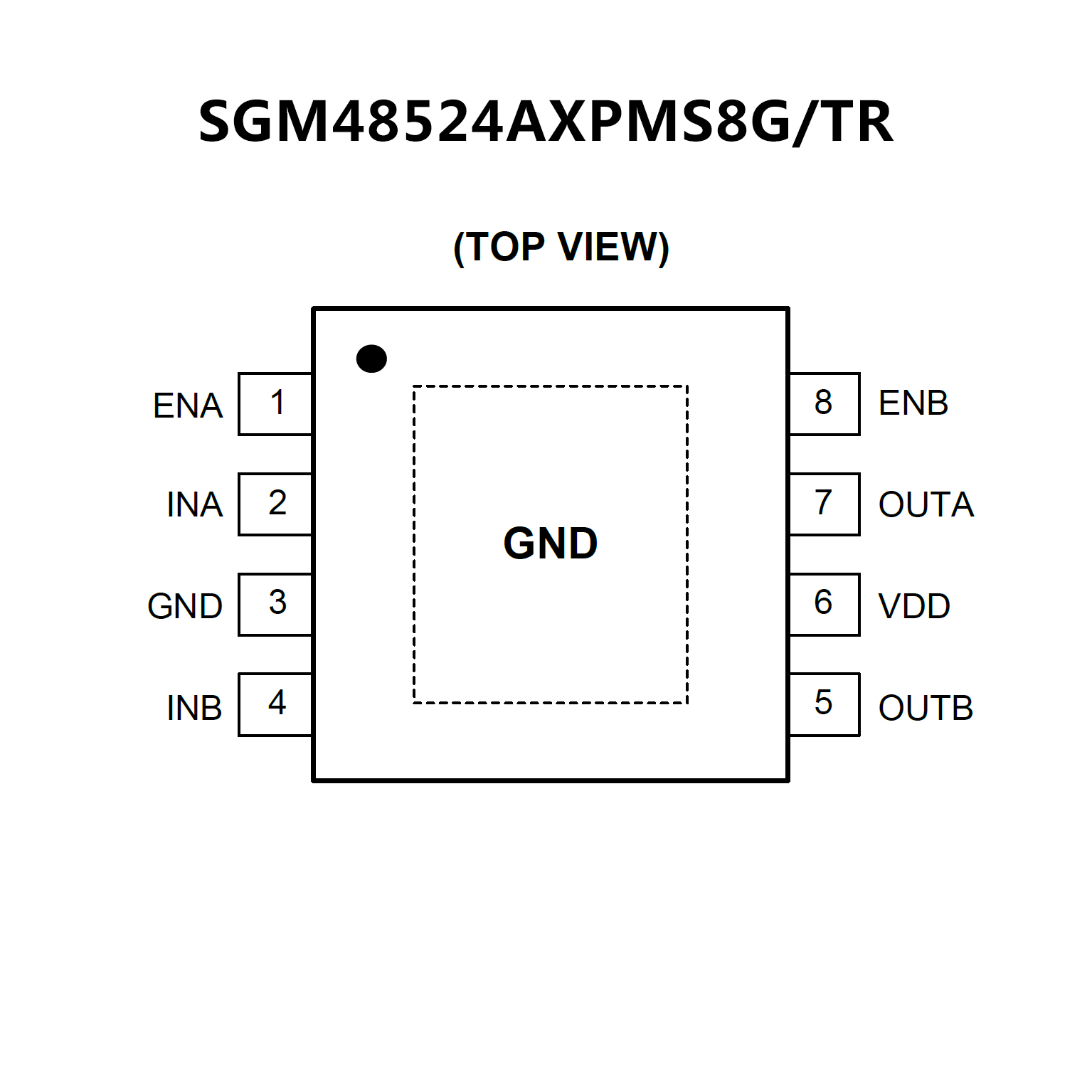

SGM48524.pdf• Two Independent Gate Drive Channels
• 5A Source and 5A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 18V
• TTL and CMOS Compatible Logic Threshold
• Logic Levels Independent of Supply Voltage
• Hysteretic Input Logic for High Noise Immunity
• Outputs Held Low When Inputs are Floating
• Fast Propagation Delays: 18ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 7ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
• Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
• Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages

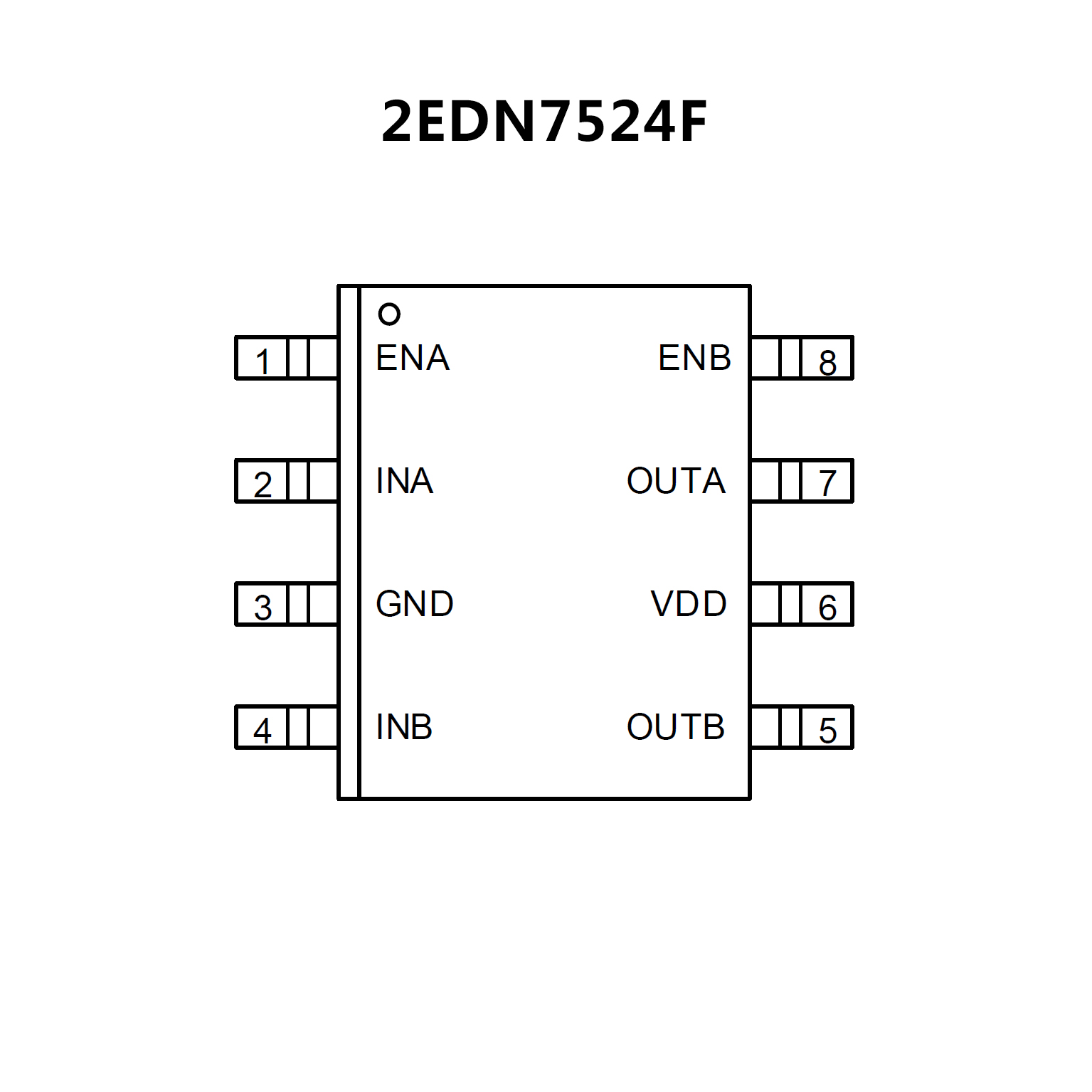

• Highly efficient SMPS enabled by 5 ns fast slew rates and
17 ns propagation delay precision for fast MOSFET and
GaN switching
• 1 ns channel-to-channel propagation delay accuracy
enables safe use of two channels in parallel
• Two independent 5 A channels enable numerous
deployment options
• Industry standard packages and pinout ease
system-design upgrades
