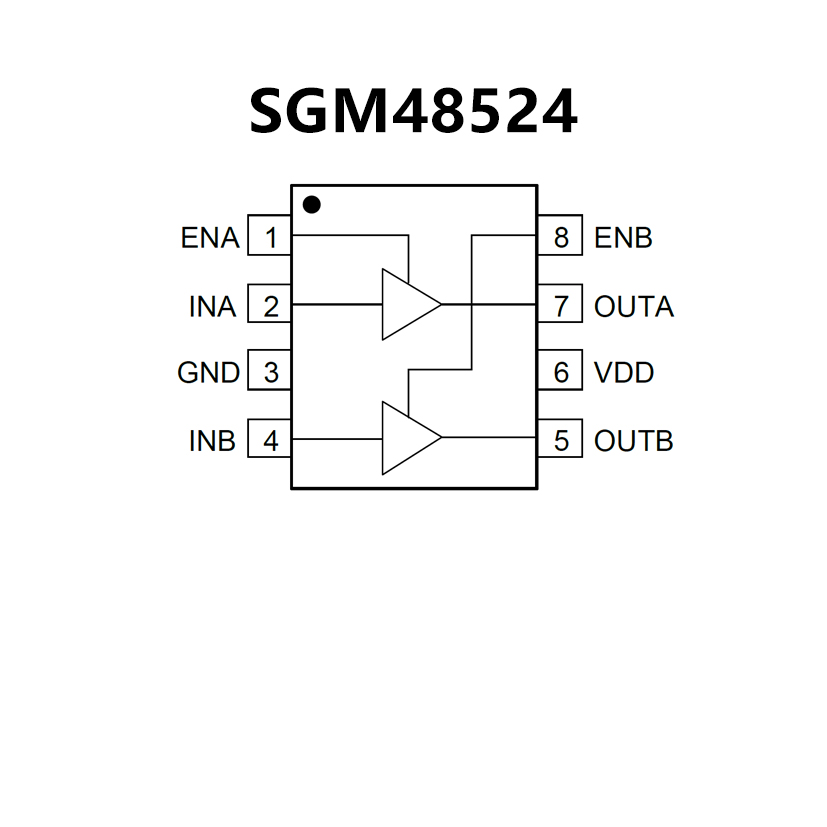

SGM48524XS8G.pdf• Two Independent Gate Drive Channels
• 5A Source and 5A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 18V
• TTL and CMOS Compatible Logic Threshold
• Logic Levels Independent of Supply Voltage
• Hysteretic Input Logic for High Noise Immunity
• Outputs Held Low When Inputs are Floating
• Fast Propagation Delays: 18ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 7ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pins:
10V when (VDD - VINx) ≤ 20V
• Negative Voltage Capability on ENx Pins:
10V when (VDD - VENx) ≤ 20V
• Negative Voltage Capability on OUTx Pin:
2V (Pulse < 200ns)
• Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages
• High Peak Output Current: 4.5A (typical)
• Wide Input Supply Voltage Operating Range:
4.5V to 18V
• High Capacitive Load Drive Capability:
1800 pF in 12 ns
• Short Delay Times: 40 ns (typical)
• Matched Rise/Fall Times
• Low Supply Current:
With Logic ‘1’ Input – 1.0 mA (maximum)
With Logic ‘0’ Input – 150 μA (maximum)
• Low Output Impedance: 2.5Ω (typical)
• Latch-Up Protected: Will Withstand 1.5A Reverse
Current
• Logic Input Will Withstand Negative Swing Up To5V

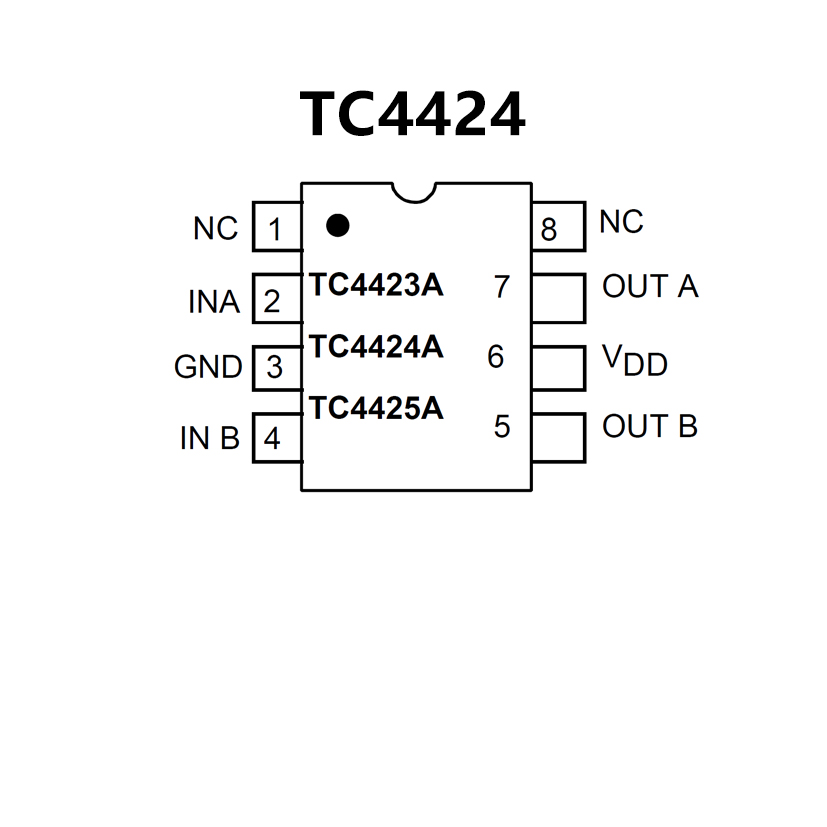

• Pin compatible with the TC4423/TC4424/TC4425
and TC4426A/TC4427A/TC4428A devices
• Space-saving 8-Pin 150 mil body SOIC and 8-Pin
6x5 DFN Packages
