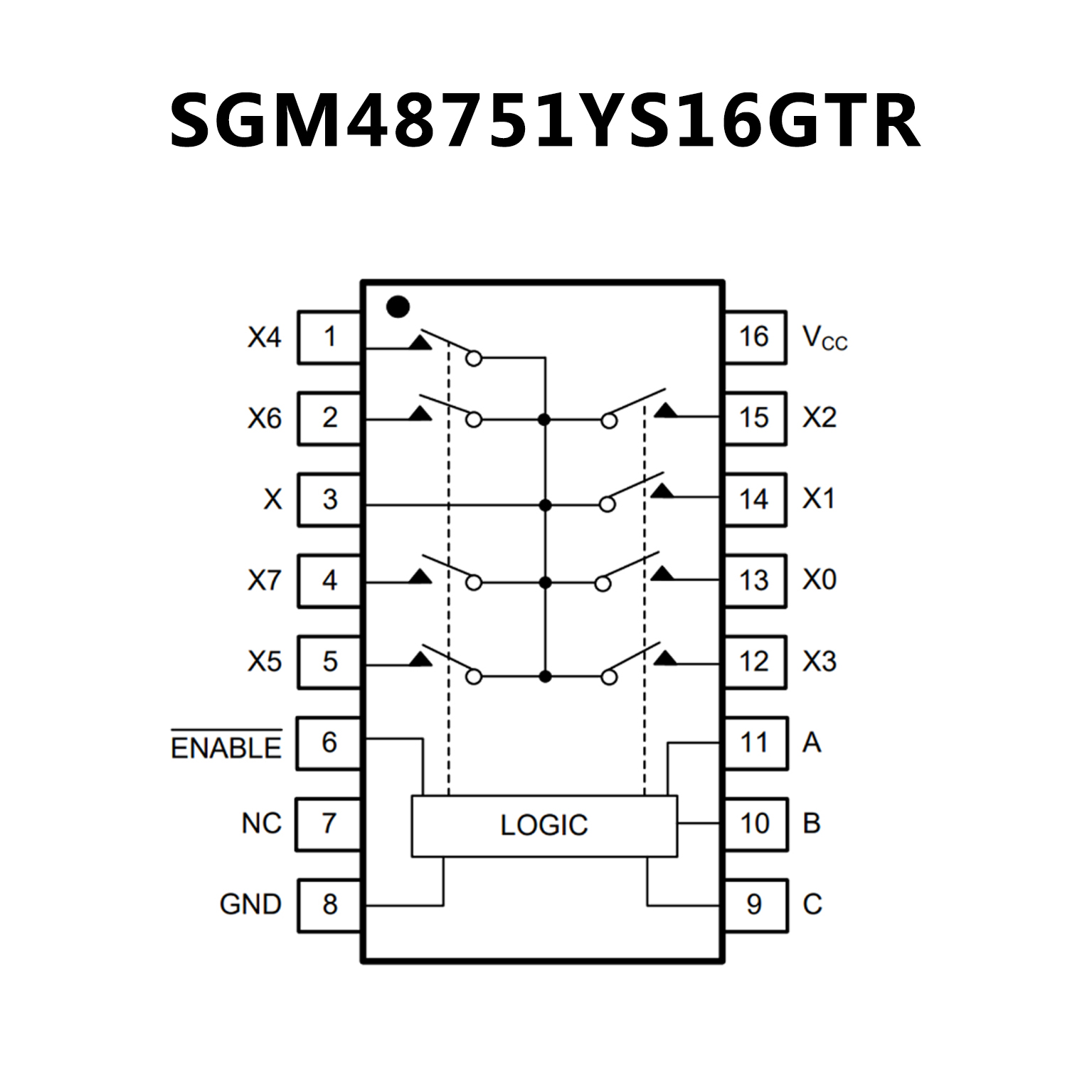

SGM48751.pdf• Guaranteed On-Resistance 48Ω (TYP) with 5V Supply
• Guaranteed On-Resistance Match Between
Channels
• Low Off-Leakage Current 1nA (TYP) at +25℃
• Low On-Leakage Current 1nA (TYP) at +25℃
• Optimized Rise Time and Fall Time of A, B, C
Control Pins to Reduce Clock Feedthrough Effect
• 2.5V to 5.5V Single Supply Operation
• 1.8V Logic Compatible
• High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages

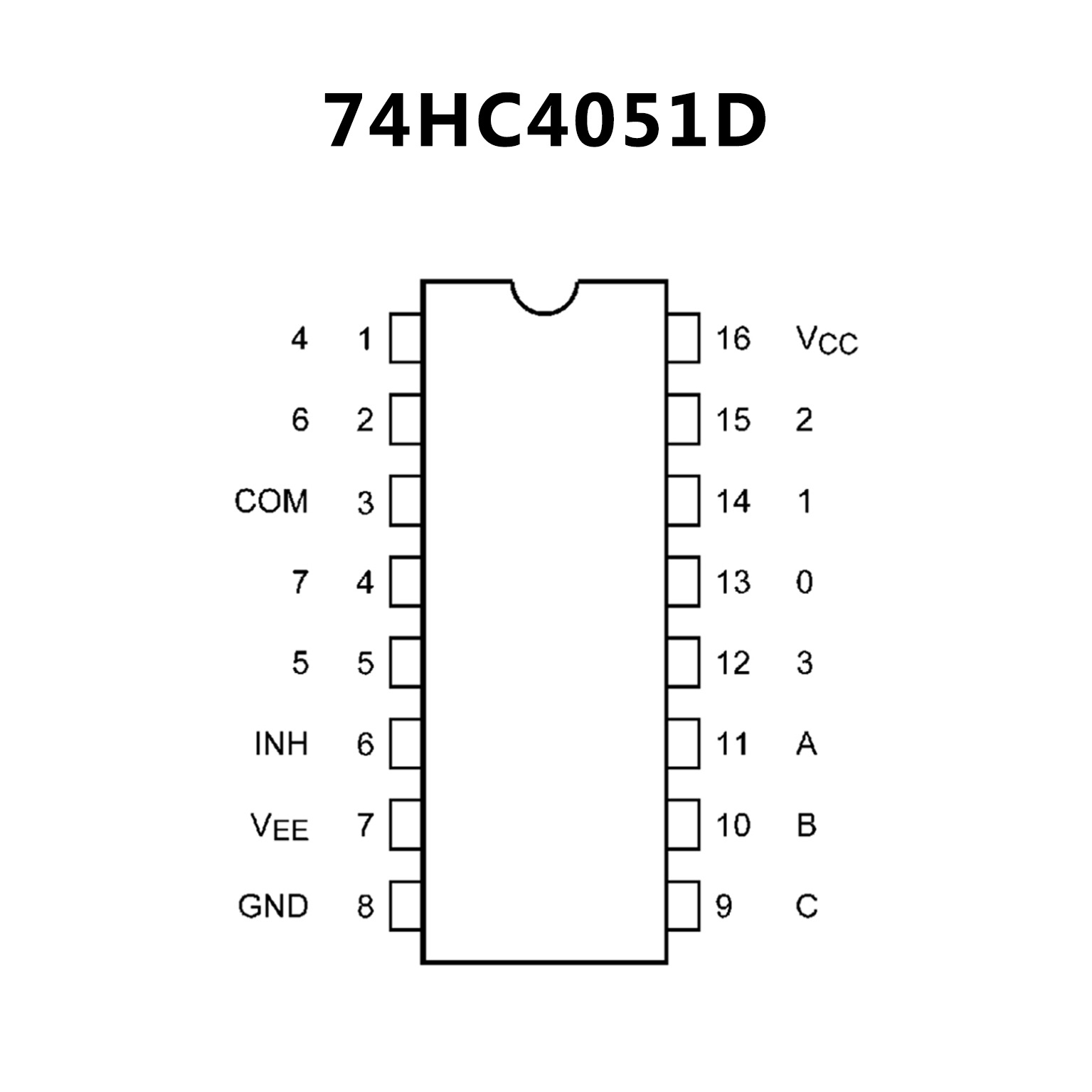

• Wide operating temperature range:
Topr = -40 to 125℃(Note 1)
• Low power dissipation: ICC = 4.0
µA (max) (VCC = 6.0V, VEE = GND, Ta = 25℃ )
• Low ON-resistance: RON = 50Ω (typ.) at VCC - VEE = 9V
• High degree of linearity:
THD = 0.02 % (typ.) at VCC - VEE = 9V
