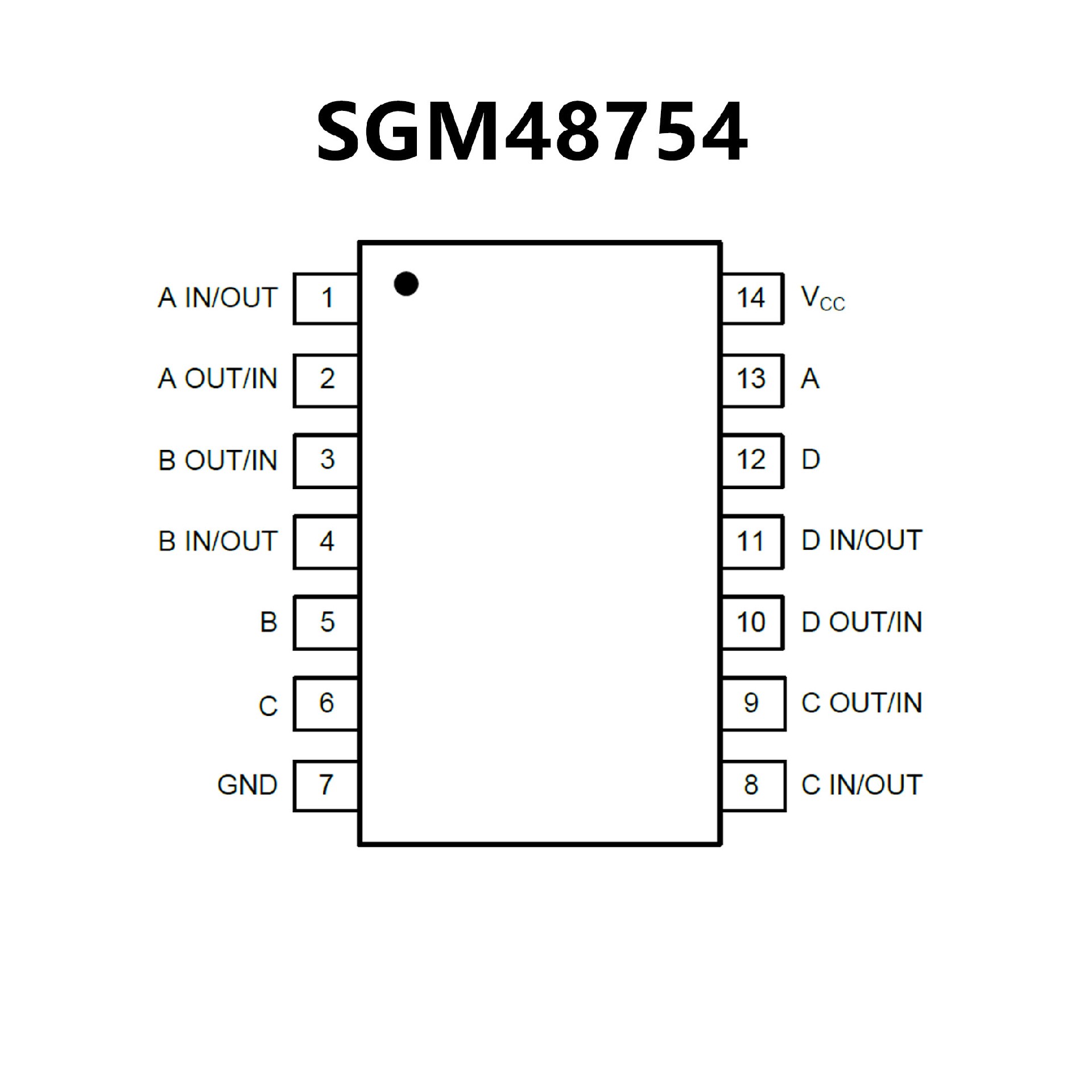

SGM48754.pdf• Guaranteed On-Resistance24Ω (TYP) with 5V Supply
• Guaranteed On-Resistance Match BetweenChannels
• “T” Type Switch
• Low Off-Leakage Current 1nA (TYP) at +25℃
• Low On-Leakage Current 1nA (TYP) at +25℃
• Optimized Rise Time and Fall Time of A, B, C
and DControl Pins to Reduce Clock Feedthrough Effect
• 2.5V to 5.5V Single-Supply Operation
• 1.8V Logic Compatible
• Low Distortion: 0.35% (RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages
• Triple Diode Protection on All Control Inputs
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Linearized Transfer Characteristics
• Low Noise − 12 nV/√Cycle, f ≥ 1.0 kHz typical

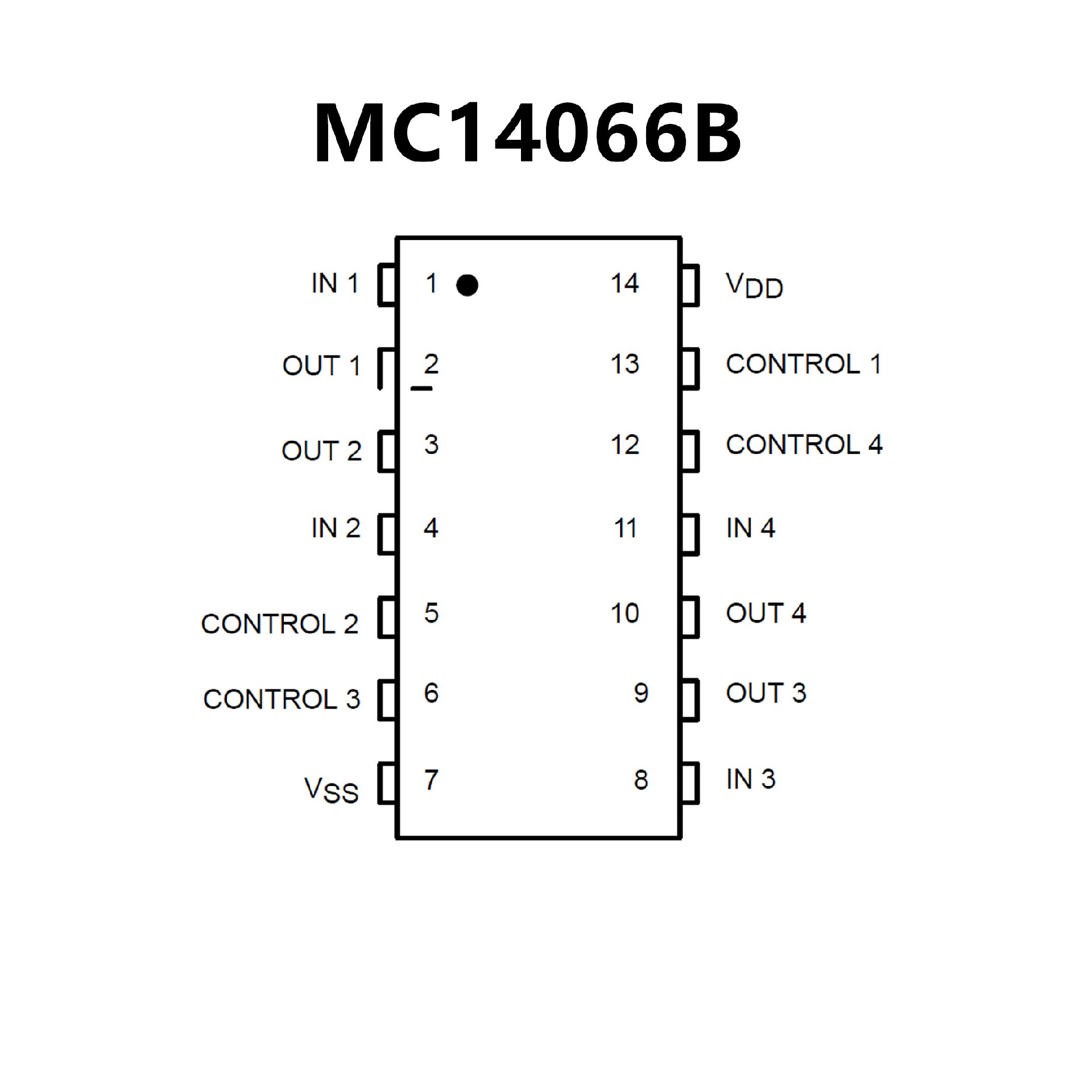

• Pin−for−Pin Replacement for CD4016,
CD4016, MC14016B
• For Lower RON, Use The HC4066 High
Speed CMOS Device
• NLV Prefix for Automotive and Other
Applications RequiringUnique Site and Control
Change Requirements; AEC−Q100Qualified
and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
