SPDT1Ω AnalogSwitch, SGM48757 Replace TS5A23166.
SGM48757
SGM48757.pdf
SGM48757.pdfFEATURES
• Supply Voltage Range: 1.8V to 5.5V
• On-Resistance: 1Ω (TYP) at 4.5V
• -3dB Bandwidth: 72MHz
• High Off-Isolation: -38dB at 10MHz
• Rail-to-Rail Operation
• Low Static Power
• TTL/CMOS Compatible
• Break-Before-Make Switching
• Available in Green SC70-6, SOT-23-6 and
UTDFN-1.45×1-6AL Packages

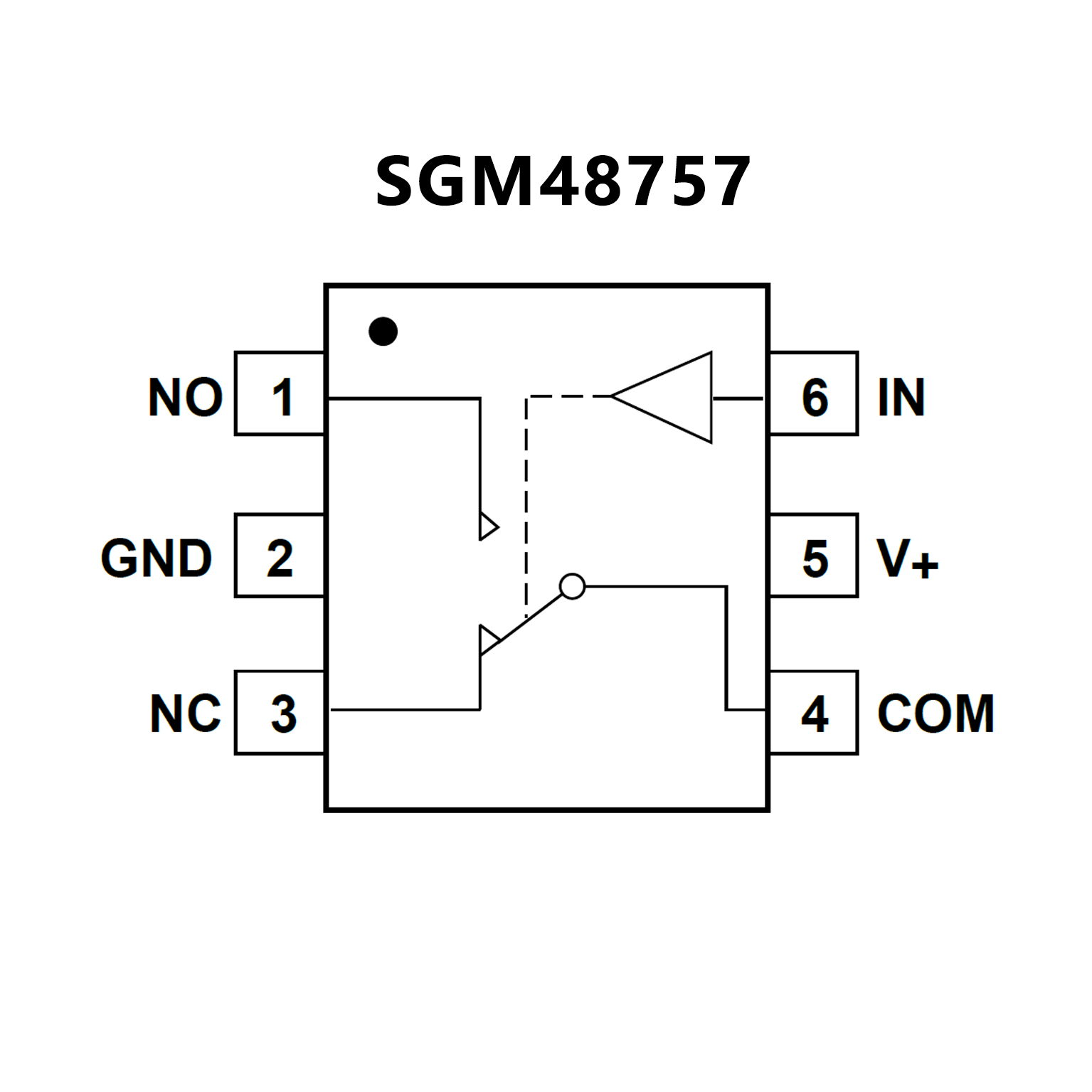

PIN CONFIGUTION
优势替代
FEATURES
• Isolation in Powered-Down Mode, V+ = 0
• Low ON-state resistance (0.9 Ω)
• Control inputs are 5.5-V Tolerant
• Low charge injection
• Excellent ON-state resistance matching
• Low total harmonic distortion (THD)
• 1.65-V to 5.5-V Single-supply operation
• Latch-up performance exceeds 100 mA per JESD 78, class II
• ESD Performance tested per JESD 22
2000-V Human-body model(A114-B, Class II)
1000-V Charged-device model (C101)

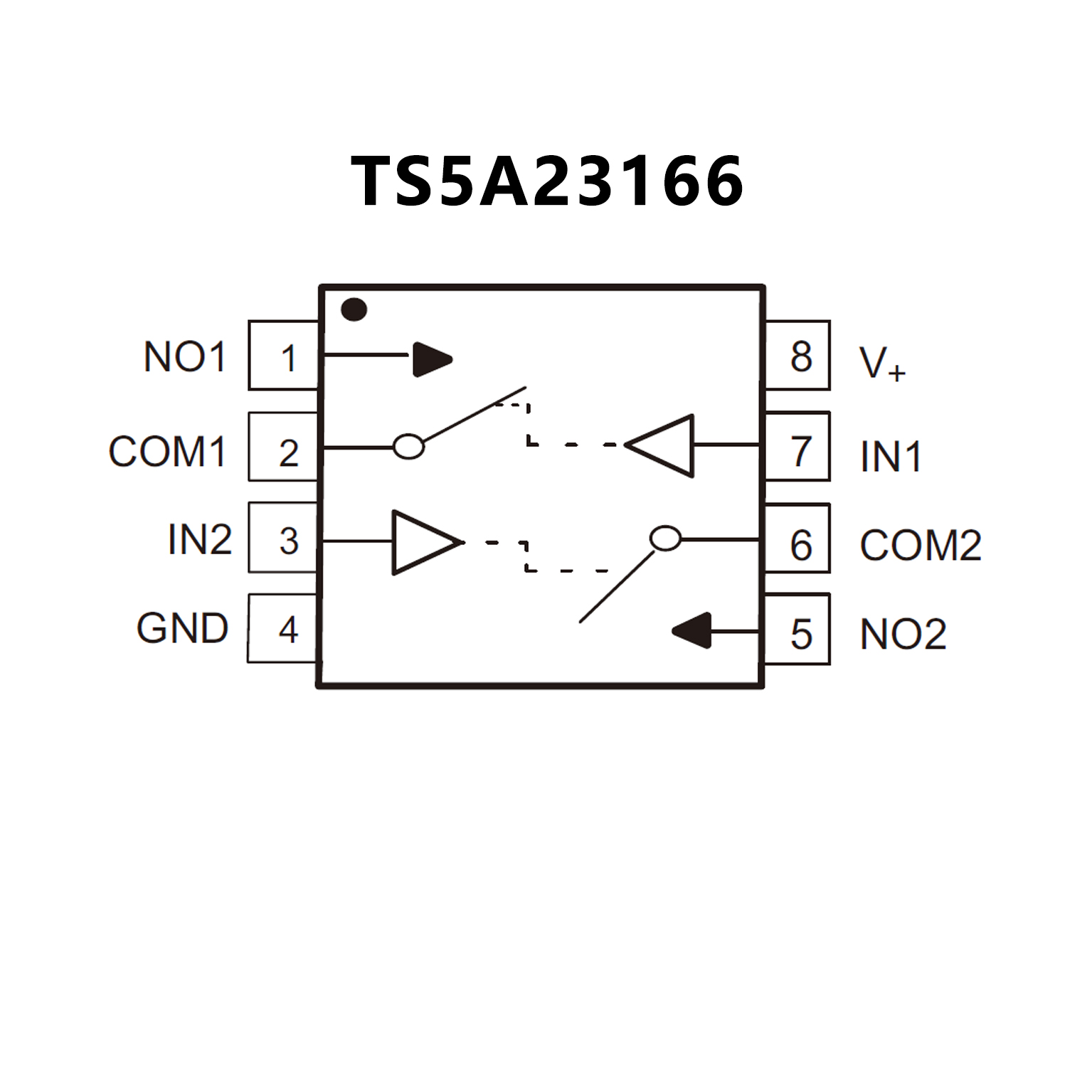

PIN CONFIGUTION
