SPDT 1Ω Analog Switch, SGM48757XN6G/TR Replace TS5A3159DBVR.
SGM48757
SGM48757.pdf
SGM48757.pdfFEATURES
• Supply Voltage Range: 1.8V to 5.5V
• On-Resistance: 1Ω (TYP) at 4.5V
• -3dB Bandwidth: 72MHz
• High Off-Isolation: -38dB at 10MHz
• Rail-to-Rail Operation
• Low Static Power
• TTL/CMOS Compatible
• Break-Before-Make Switching
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-6, SOT-23-6 and
UTDFN-1.45×1-6AL Packages

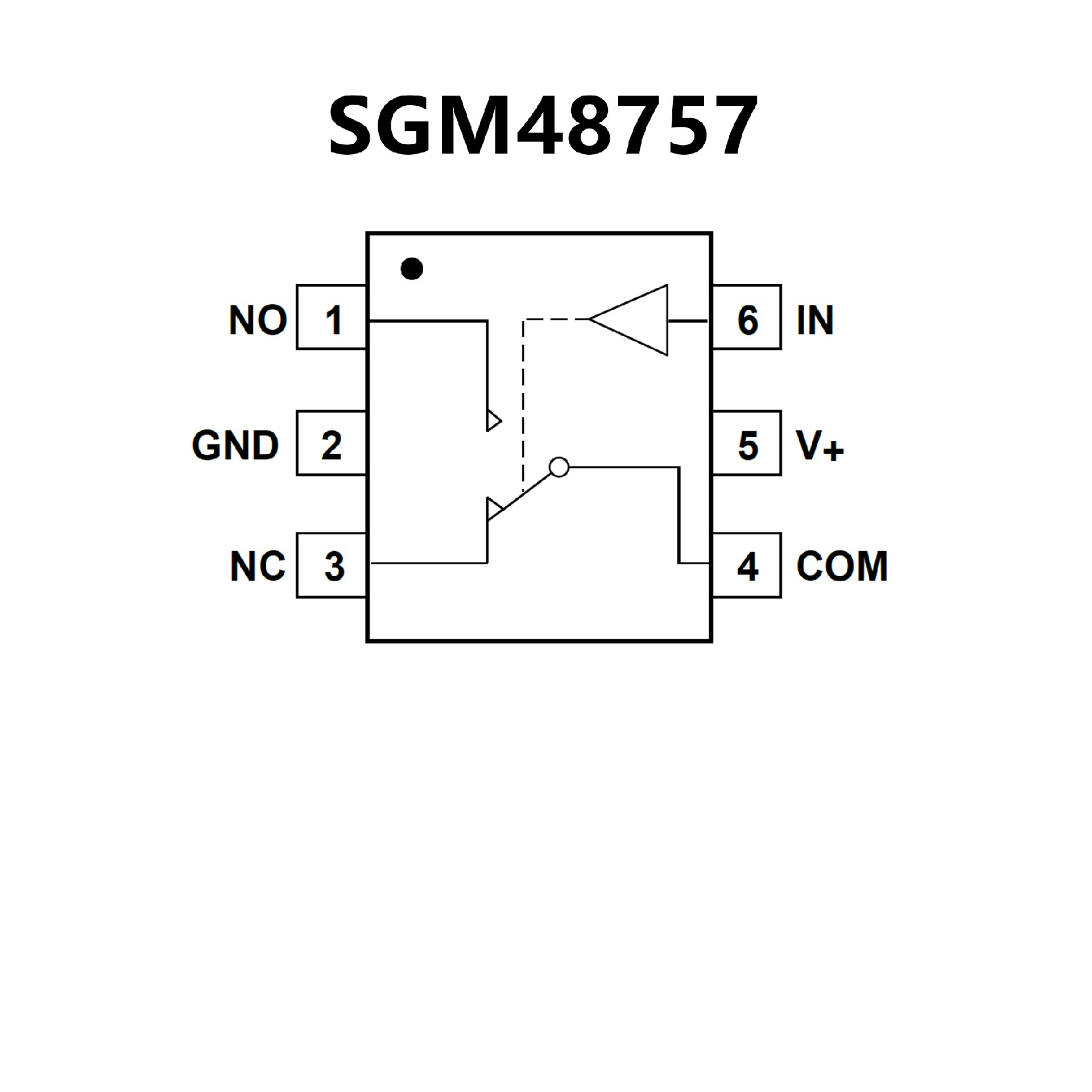

PIN CONFIGUTION
优势替代
FEATURES
• Specified Break-Before-Make Switching
• Low ON-State Resistance (1 Ω)
• Control Inputs are 5-V Tolerant
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.65-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100
mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
2000-V Human-Body Model
(A114-B, Class II)
1000-V Charged-Device Model (C101)

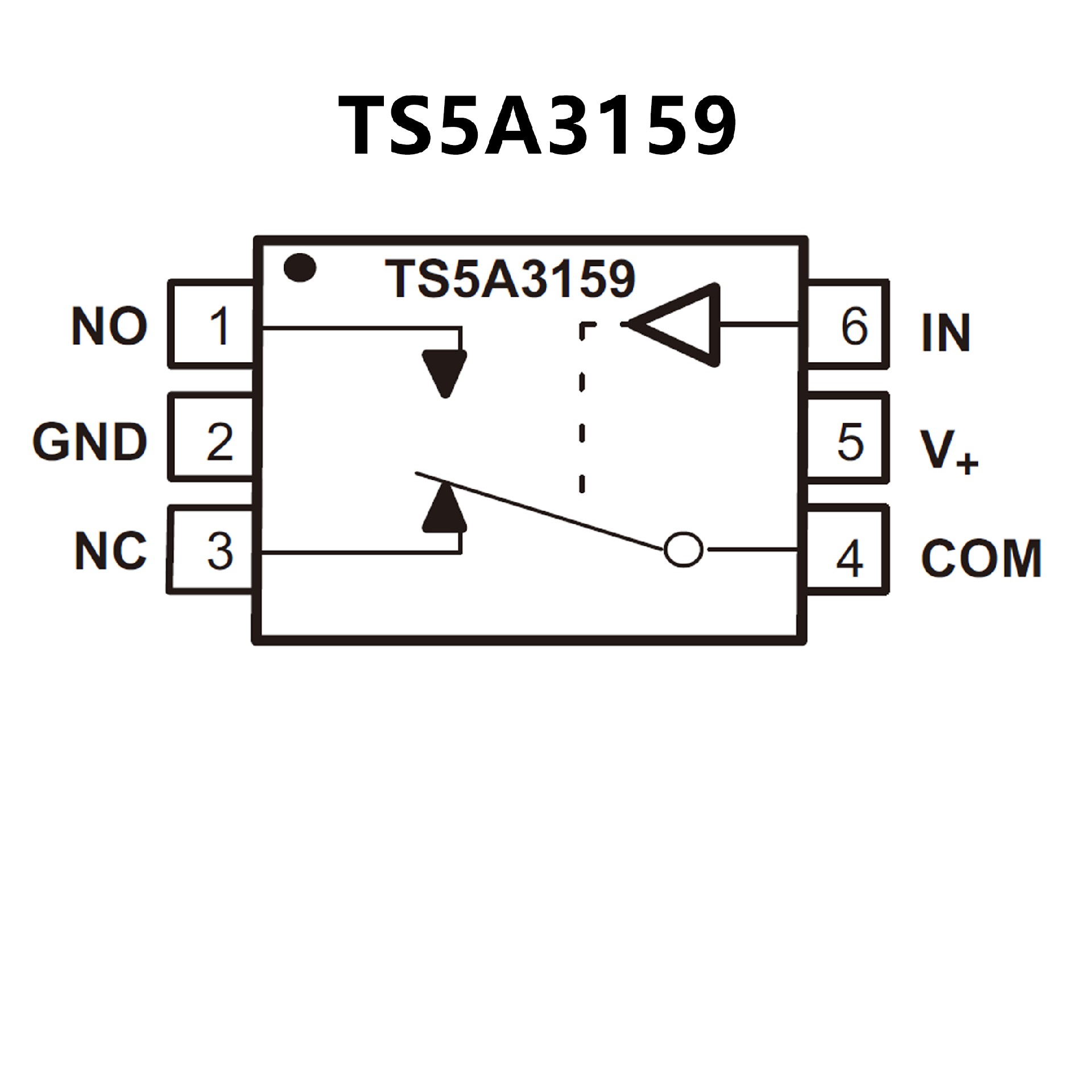

PIN CONFIGUTION
