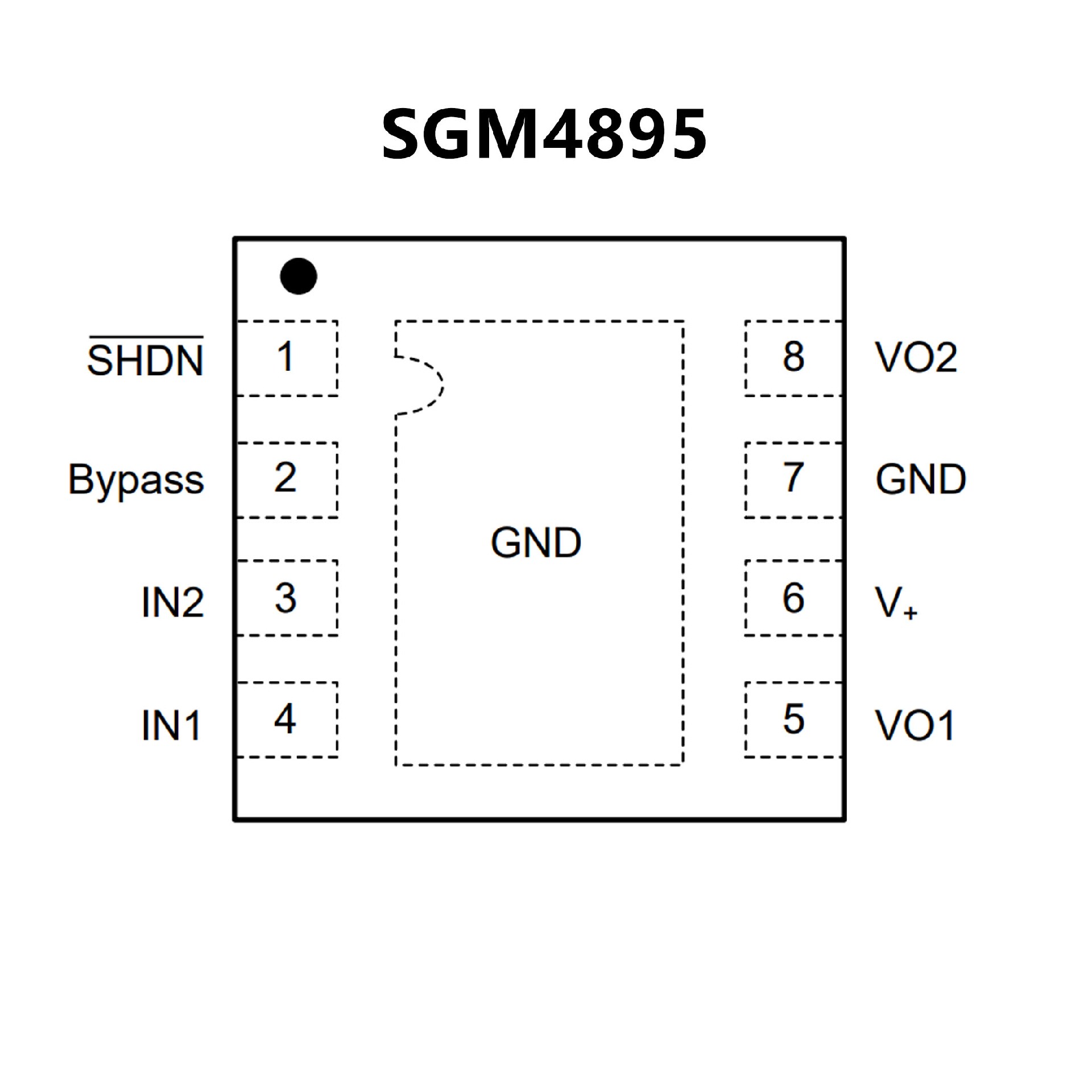

SGM4895.pdf• Fully Differential Amplifier
• Excellent PSRR: Direct Connection to Battery
• 1.3W into 8Ω Load from 5V Supply
atTHD+N = 1% (TYP)
• 1.6W into 4Ω Load from 5V Supply
atTHD+N = 1% (TYP, SGM4895YDB8 Only)
• 2.5V to 5.5V Operation
• Low Shutdown Current
• Improved Pop/Click Circuitry
• Support Single-Ended or Differential Input
• Thermal Overload Protection Circuitry
• No Output Coupling Capacitors, Bootstrap
Capacitors Required
• External Gain Configuration Capability
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TDFN-3×3-8L
andMSOP-8 (Exposed Pad) Packages

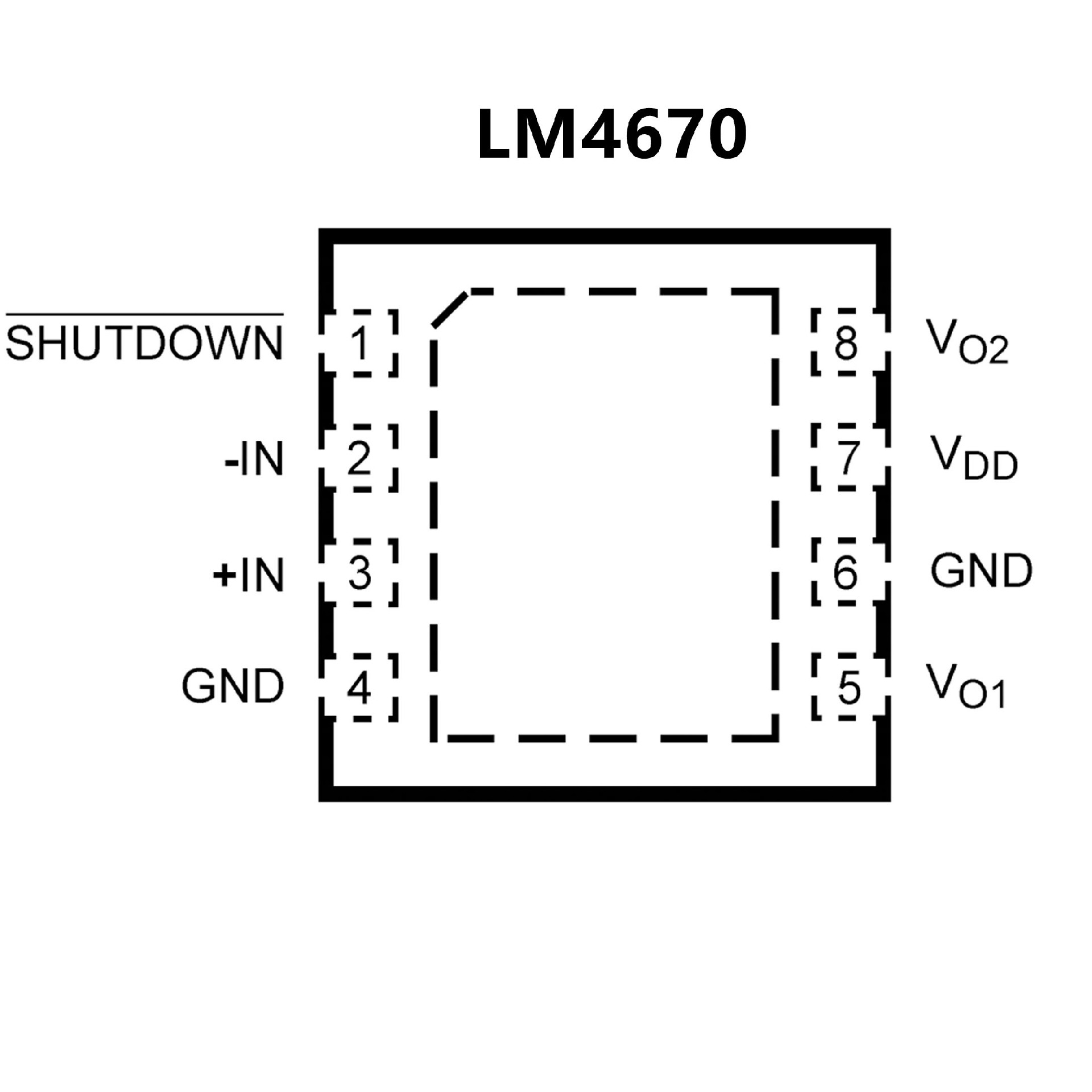

• No output filter required for inductive loads
• Externally configurable gain
• Very fast turn on time: 1.35ms (typ)
• Minimum external components
• "Click and pop" suppression circuitry
• Micro-power shutdown mode
• Short circuit protection
• Available in space-saving microSMD and LLP packages
