Quad, 12-Bit, 40 MSPS/65 MSPS Serial LVDS 1.8 V A/D Converter, SGM5102 Replace AD9228.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
• 2-Channel Simultaneous Sampling
• INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
• SNR: 73.7dB
• SFDR: 90dB
• Low Power: 94mW Total
• 47mW per Channel
• Single Supply: 1.8V
• Serial LVDS Outputs: 1 or 2 Bits per Channel
• Selectable Input Ranges: 1VP-P to 2VP-P
• Full Power Bandwidth S/H: 800MHz
• Shutdown and Nap Modes
• Serial SPI Port for Configuration
• Available in a Green TQFN-6×6-40AL Package
PIN CONFIGUTION
优势替代
FEATURES
• 4 ADCs integrated into 1 package
• 119 mW ADC power per channel at 65 MSPS
• SNR = 70 dB (to Nyquist)
• ENOB = 11.3 bits
• SFDR = 82 dBc (to Nyquist)
• Excellent linearity
DNL = ±0.3 LSB (typical)
INL = ±0.4 LSB (typical)
• Serial LVDS (ANSI-644, default)
Low power, reduced signal option (similar to IEEE 1596.3)
• Data and frame clock outputs
• 315 MHz full power analog bandwidth
• 2 V p-p input voltage range
• 1.8 V supply operation
• Serial port control
Full chip and individual channel power-down modes
Flexible bit orientation
Built in and custom digital test pattern generation
Programmable clock and data alignment
Programmable output resolution
Standby mode

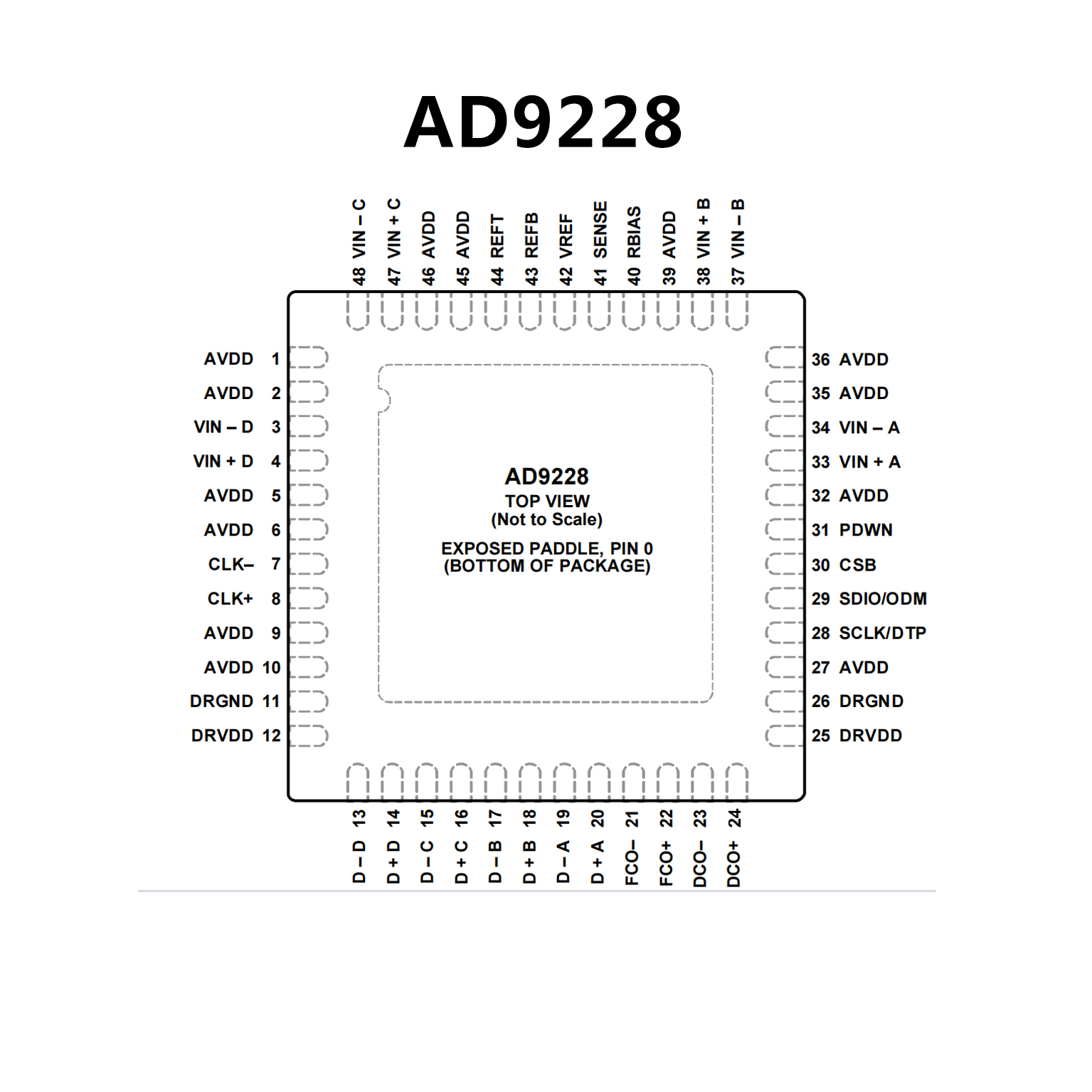

PIN CONFIGUTION
