14-Bit, 25MSPS, Low Power Dual Analog-to-Digital Converter Cores, SGM5102 Replace AD9238.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
• 2-Channel Simultaneous Sampling
• INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
• SNR: 73.7dB
• SFDR: 90dB
• Low Power: 94mW Total
• 47mW per Channel
• Single Supply: 1.8V
• Serial LVDS Outputs: 1 or 2 Bits per Channel
• Selectable Input Ranges: 1VP-P to 2VP-P
• Full Power Bandwidth S/H: 800MHz
• Shutdown and Nap Modes
• Serial SPI Port for Configuration
• Available in a Green TQFN-6×6-40AL Package

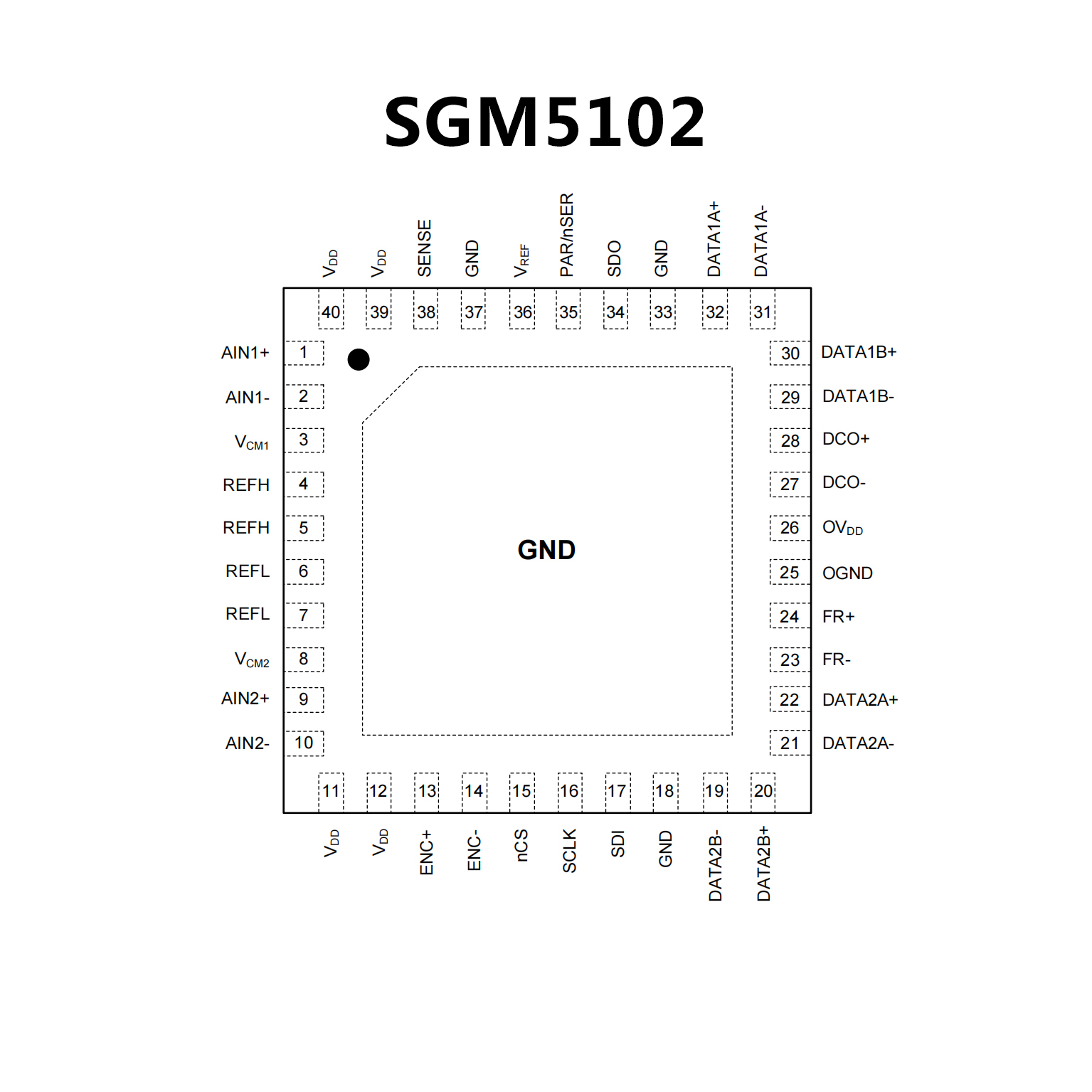

PIN CONFIGUTION
优势替代
FEATURES
• Integrated dual 12-bit ADC
• Single 3 V supply operation (2.7 V to 3.6 V)
• SNR = 70 dB (to Nyquist, AD9238-65)
• SFDR = 80.5 dBc (to Nyquist, AD9238-65)
• Low power: 300 mW/channel at 65 MSPS
• Differential input with 500 MHz, 3 dB bandwidth
• Exceptional crosstalk immunity > 85 dB
• Flexible analog input: 1 V p-p to 2 V p-p range
• Offset binary or twos complement data format
• Clock duty cycle stabilizer
• Output datamux option

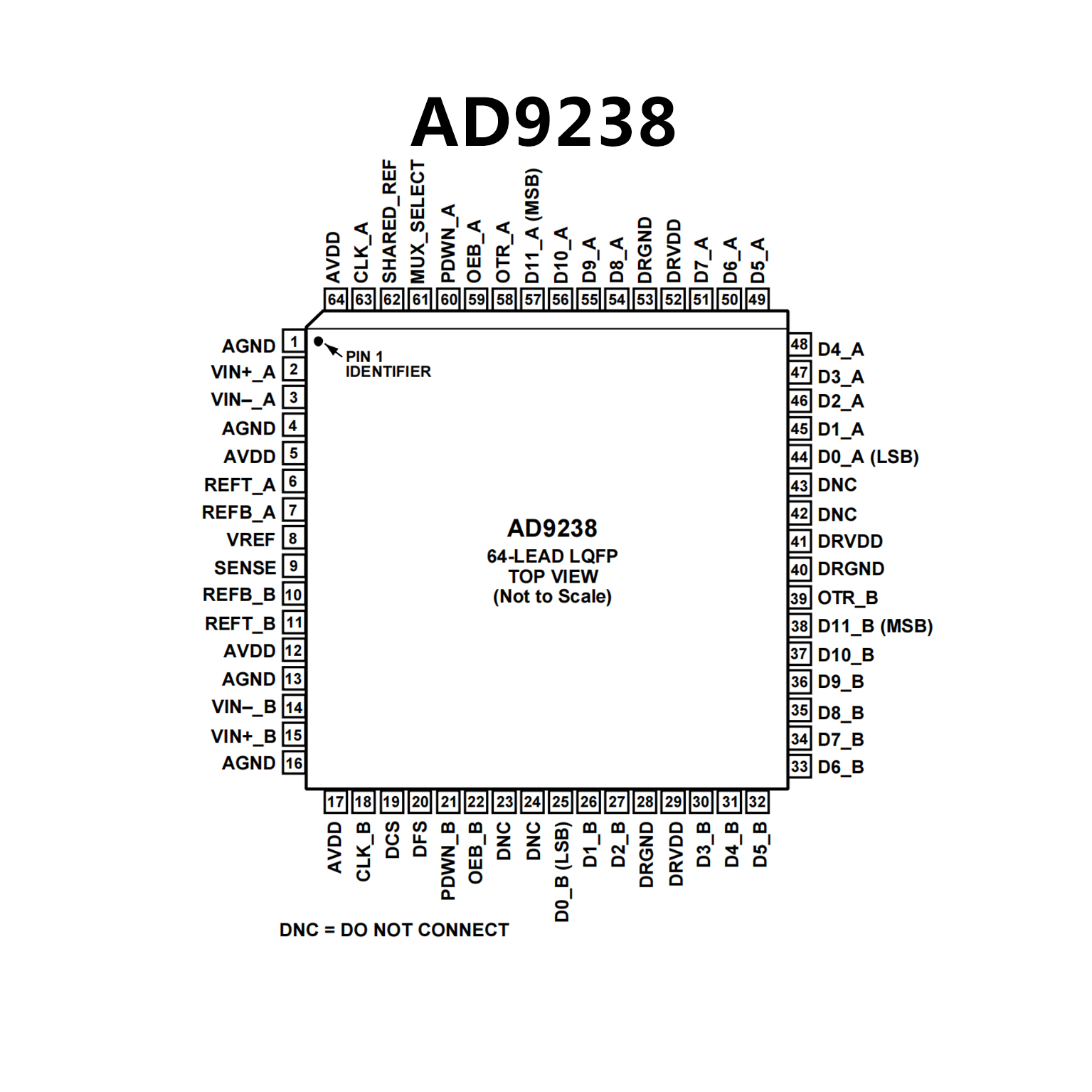

PIN CONFIGUTION
