12-Bit, 65Msps/40Msps/ 25Msps Low Power Dual ADCs, SGM5102 Replace LTC2263.
SGM5102
SGM5102.pdf
SGM5102.pdfFEATURES
• 2-Channel Simultaneous Sampling
• INL ±1LSB (TYP), DNL ±0.3LSB (TYP)
• SNR: 73.7dB
• SFDR: 90dB
• Low Power: 94mW Total
• 47mW per Channel
• Single Supply: 1.8V
• Serial LVDS Outputs: 1 or 2 Bits per Channel
• Selectable Input Ranges: 1VP-P to 2VP-P
• Full Power Bandwidth S/H: 800MHz
• Shutdown and Nap Modes
• Serial SPI Port for Configuration
• Available in a Green TQFN-6×6-40AL Package

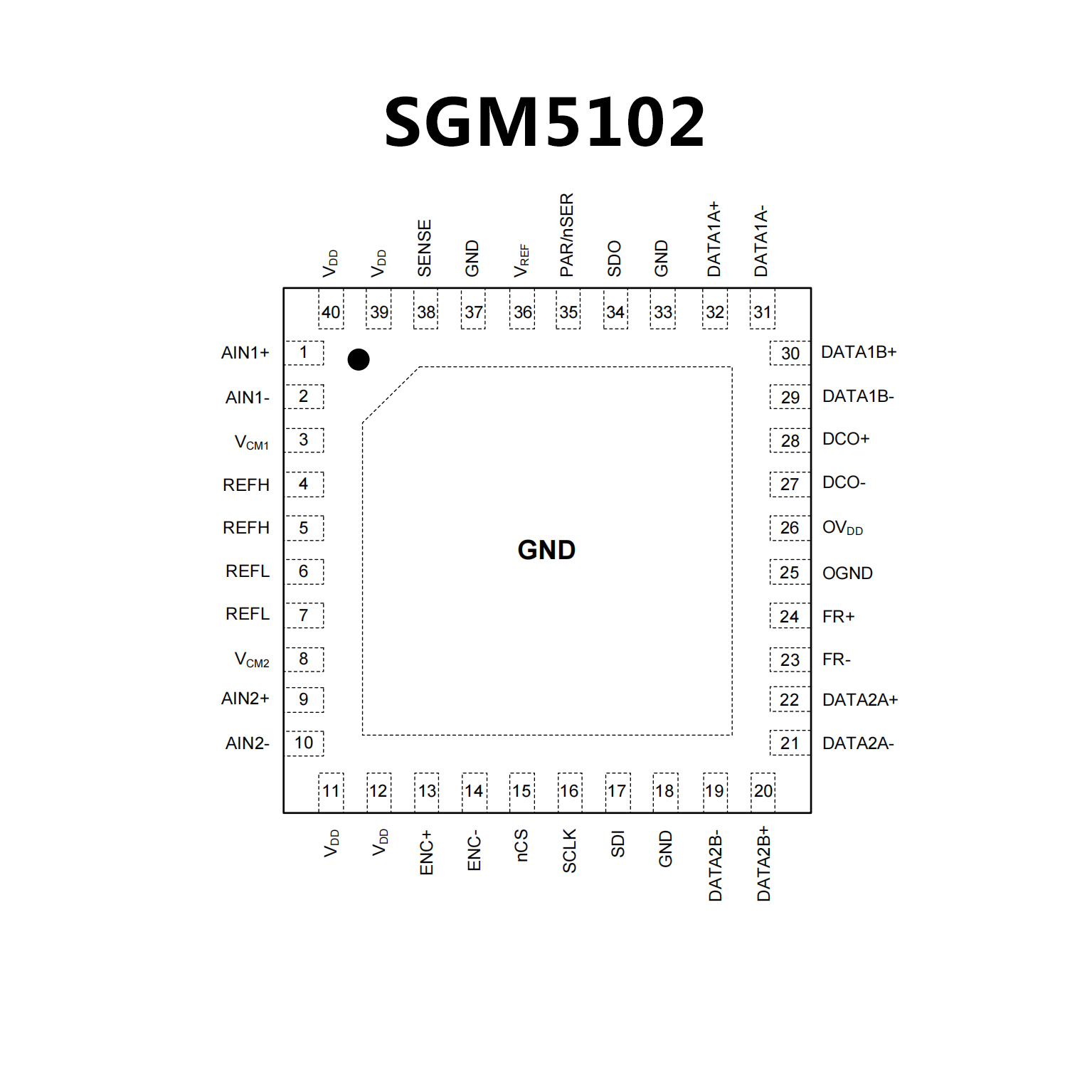

PIN CONFIGUTION
优势替代
FEATURES
• 2-Channel Simultaneous Sampling ADC
• 71dB SNR
• 90dB SFDR
• Low Power: 167mW/112mW/94mW Total
• 83mW/56mW/47mW per Channel
• Single 1.8V Supply
• Serial LVDS Outputs: 1 or 2 Bits per Channel
• Selectable Input Ranges: 1VP-P to 2VP-P
• 800MHz Full Power Bandwidth S/H
• Shutdown and Nap Modes
• Serial SPI Port for Configuration
• Pin Compatible 14-Bit and 12-Bit Versions
• 40-Pin (6mm × 6mm) QFN Package

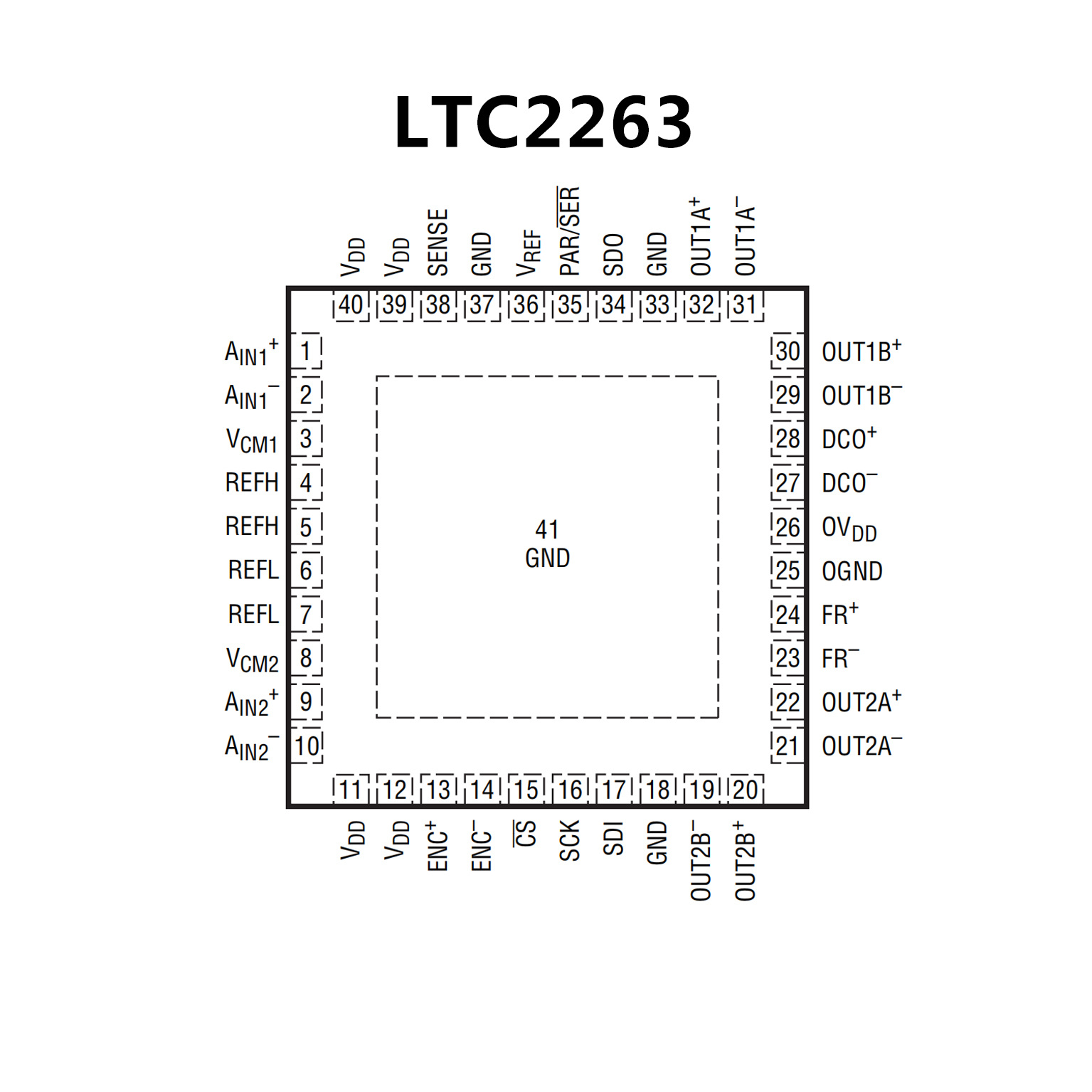

PIN CONFIGUTION
